Large build volume forming sizes from 600×600×600mm up to 2000×2000×2000mm
High-speed printing up to 500mm/s for industrial-scale production
Industrial aluminum alloy frame rigid structure for high stability
100°C heated bed designed to reduce warping on large prints
Heated chamber option customizable up to 150°C
Automatic bed leveling one-key leveling system
Multi-material support PLA, ABS, PETG, PA, PC and more
Looking for other products of VoxelFuse?
Frequently bought together Voxelfuse3D Industrial Printers
Specification
Key Printing Performance
| Product Specifications | DS Series Industrial 3D Printer |
|---|---|
| Product Model | DS |
| Printing Technology | Fused Deposition Modeling (FDM) |
| Build Volume | 600×600×600 mm – 2000×2000×2000 mm |
| Printing Speed | 150–500 mm/s |
| Nozzle Diameter | 1.75 mm: 0.4 / 0.6 / 0.8 mm 2.85 mm: 0.8 / 1.2 / 1.6 mm |
| Nozzle Temperature | 0–350 °C |
| Heated Bed Temperature | 0–100 °C |
| Chamber Temperature | Constant temperature heating: 0–60 °C Optional: 150 °C high-temperature enclosure |
| Positioning Accuracy | 0.002 mm |
| Operation Panel | 7-inch color capacitive touchscreen |
| File Formats Supported | STL / STP / STEP / OBJ / GCODE / JPG |
| Consumable Specifications | 1.75 mm / 2.85 mm (Universal consumables) |
| Supported Materials | PLA, ABS, ASA, PETG, PVA, TPU |
| Connection Method | Wi-Fi connection / USB disk offline printing |
| Intelligent Functions | Filament break detection, power-loss recovery, automatic leveling, Wi-Fi transmission |
| Input Power | 110V / 220V |
| Customization | Build size, nozzle configuration, chamber temperature customizable |
Description
Plus Print Speed:
Up to 500 mm/s High-Speed Operation
Optimized motion architecture and lightweight structural design enable stable printing speeds of up to 500 mm/s, significantly reducing production time for large-scale industrial parts without sacrificing print quality.
Industry Benchmark:
5th Generation Industrial Design
The 5th Generation DS Series integrates advanced industrial manufacturing concepts with refined structural and control systems, setting a new benchmark for large-format industrial 3D printing.
Large Build Volume:
Industrial-Scale Printing Capability
Designed for large-size models and prototypes, the DS Series supports industrial-scale printing in a single build, reducing part splitting, assembly work, and post-processing.

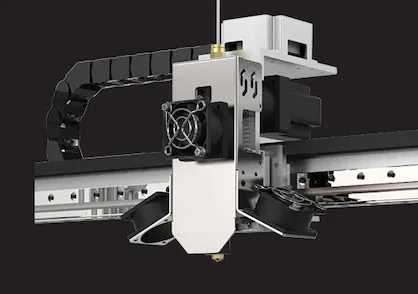

Plus High Extrusion Output:
Up to 540 g/h Flow Rate
A high-capacity extrusion system delivers up to 549g/h flow rate, enabling rapid production of large parts while maintaining dimensional accuracy and structural consistency.
Plus Aluminum Alloy Frame:
Rigid Industrial Body
Built with a high-strength aluminum alloy body, the printer ensures excellent rigidity, vibration resistance, and long-term durability in demanding industrial environments.

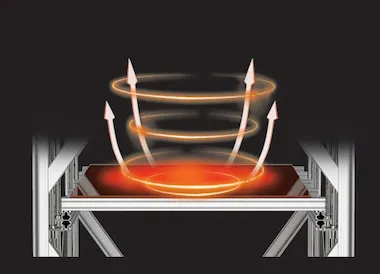

Heated Bed Performance:
100 °C Uniform Heating System
The DS model is standard-eouipped with a hlgh-power hlah-tem
Derature heated bed,The mainboard enables precise temperature
control, rapid heating, and the temperature can reach 100/150*C.
The tempered glass platform can bear a load of over 100 kilograms, ensuring safety and reliability.

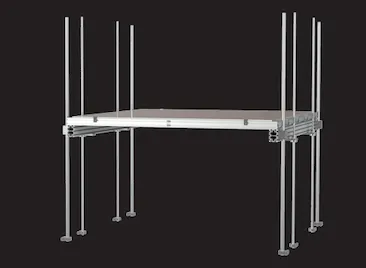

Plus One-Key Leveling:
Fully Automatic Bed Calibration
Through a specially designed module supplemented by 4 indepen.dent lead screws, intelligent deviation correction for the Z-axis canbe achieved. lt also supports customizing Z-axis compensationvalues to realize true fully automatic leveling. Say goodbye totedious manual leveling operations and improve printing efficiencyand precision!

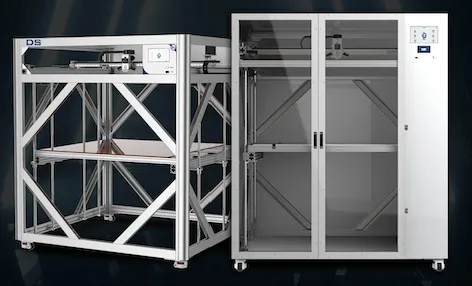

Enclosed Temperature Control:
Up to 150 °C Custom Heated Chamber
An optional circulating thermostatic chamber supports customized temperatures up to 150 °C, creating a stable internal environment for high-performance engineering materials.
Plus Material Compatibility:
Supports Multiple Industrial Filaments
Compatible with PLA, ABS, PETG, PA, PC, and other materials, the DS Series adapts to a wide range of prototyping, tooling, and functional part applications.
Modular Size Options:
DS Series Standard Build Dimensions
Available in standard sizes ranging from 600×600×600 mm up to 2000×2000×2000 mm, the DS Series scales easily to match different industrial production requirements.
Customization Services:
Professional Industrial Solutions
We offer comprehensive customization options including nozzle size, control systems, voltage, and frequency, delivering tailored solutions for specific industrial use cases.
