3-in-1 Modular Fabrication System combines 3D printing, 10W laser engraving/cutting, and 200W CNC machining in one desktop platform
400×400×400mm Large Build Volume oversized workspace for large-format models and batch production
Industrial-Grade Linear Motion System precision-ground steel modules for superior rigidity and long-term accuracy
Dual Extrusion 3D Printing supports dual-material and dissolvable support printing for complex geometries
High-Power Laser & CNC Performance 10W laser up to 8mm cutting depth and 200W CNC with 0.2mm machining precision
Looking for other products of Snapmaker?
Frequently bought together Snapemaker Artisan Printer
Specification
General Specifications
| Product Specifications | Industrial Multi-Function 3D Printer |
|---|---|
| Machine Size | 620 × 580 × 634 mm |
| Machine Size (With Enclosure) | 943 × 665 × 705 mm |
| Frame Material | Aluminum Alloy Acrylic Panels |
| Net Weight | 52.9 kg |
| Gross Weight | Box A: 34.8 kg Box B: 31.5 kg |
| Repeat Positioning Accuracy | ±0.05 mm |
| Linear Module Driver | TMC2209 |
| X Axis Travel | 40 mm |
| Y Axis Travel | 40 mm |
| Z Axis Travel | 8 mm |
| Data Transmission | Wi-Fi / USB Cable / USB Drive |
| Supported Software | Snapmaker Luban & Third-Party Slicers |
| Supported OS | Windows / macOS / Linux |
| Touchscreen | 7-inch Touch Display |
| Rated Power | 750W |
| Operating System | Android 10.0 |
3D Printing Module
| 3D Printing Specifications | FDM Module |
|---|---|
| Build Volume | Dual Nozzle: 350 × 400 × 400 mm Left Nozzle Only: 375 × 400 × 400 mm Right Nozzle Only: 400 × 400 × 400 mm |
| Dimensional Accuracy | ±0.1 mm |
| Nozzle Diameter | Standard: 0.4 mm Optional: 0.2 / 0.6 / 0.8 mm |
| Nozzle Material | Brass (Standard) Hardened Steel (Optional) |
| Max Nozzle Temperature | 300°C |
| Max Printing Speed | 180 mm/s |
| Heated Bed Temperature | 110°C (High Temp Zone) 80°C (Full Surface) |
| Supported Materials | PLA, ABS, ASA, PETG, PVA, HIPS, TPU, PA-CF, PA12-CF |
| Supported Filament Diameter | 1.75 mm |
| Supported File Formats | STL / OBJ |
Laser Engraving Module
| Laser Engraving & Cutting Specifications | 10W Laser Module |
|---|---|
| Working Area | 400 × 400 mm |
| Laser Power | 10W |
| Laser Type | 450–460 nm Semiconductor Laser |
| Max Engraving Speed | 6000 mm/min |
| Max Cutting Depth (Wood) | 8 mm |
| Operating Temperature | 0°C – 35°C |
| Laser Spot Size | 0.05 mm × 0.2 mm |
| Supported Engraving Materials | Hardwood (Beech, Walnut), Softwood, MDF, Plywood, Bamboo, Coated Metal, Anodized Aluminum, Stainless Steel, Dark Glass, Ceramic, Marble, Leather, Fabric, Plastic, Dark Acrylic (excluding blue) |
| Supported Cutting Materials | Hardwood, Softwood, MDF, Plywood, Leather, Fabric, Cardboard, Plastic, Dark Acrylic (excluding blue) |
| Supported File Formats | STL / SVG / PNG / JPG / JPEG / BMP / DXF |
CNC Carving & Cutting
| CNC Carving & Cutting Specifications | 200W CNC Module |
|---|---|
| Working Area | 400 × 400 mm |
| Power | 200W |
| Max Spindle Speed | 18,000 RPM |
| Max Working Speed | Wood: 50 mm/s Acrylic: 33 mm/s |
| Max Step Down | Wood: 2 mm Acrylic: 1 mm |
| Supported Materials | Hardwood (Beech, Walnut), Softwood, MDF, High-density Board, Plywood, Carbon Fiber, Acrylic, Artificial Wood, PCB Board |
| Supported File Formats | STL / SVG / PNG / JPG / JPEG / BMP / DXF |
Note 1: 3D printing data tested with PLA filament and 0.4 mm nozzle on 100 × 100 × 100 mm model. Actual results may vary.
Note 2: CNC data tested with 3.175 mm double flute bit on wood and acrylic. Cutting speed may vary depending on tool and material.
Specifications subject to change without prior notice.
Description

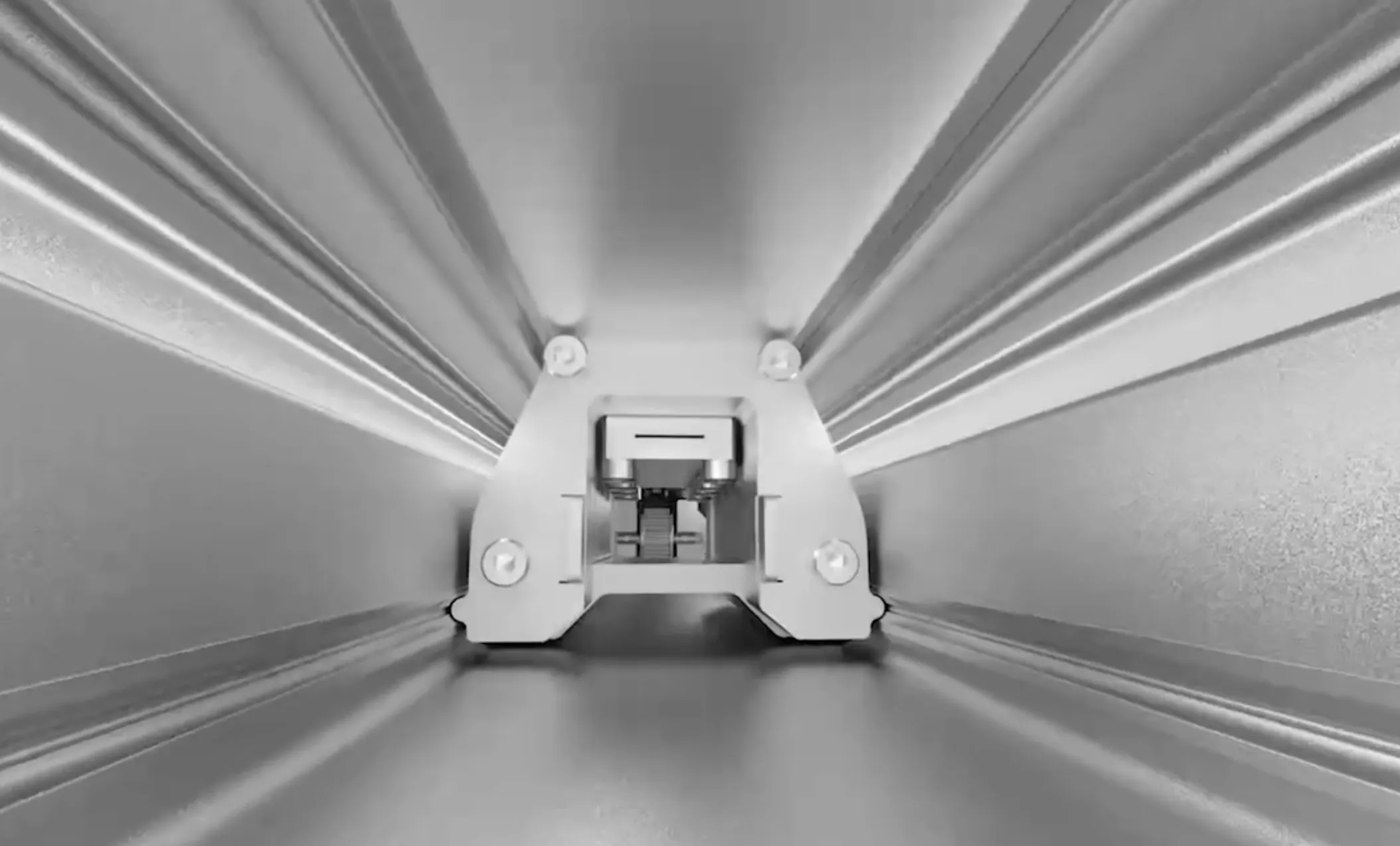

Industrial-Grade Motion System
By integrating industrial-grade transmission technology into this desktop 3D printer, precision-ground steel is embedded into the linear modules, significantly improving rigidity, durability, and positioning accuracy for fast, stable, and precise fabrication.
Modular Hotend System
Supports quick nozzle changes, including hardened steel and larger diameter nozzles. Automatic nozzle recognition and parameter matching ensure optimal print performance across various materials.

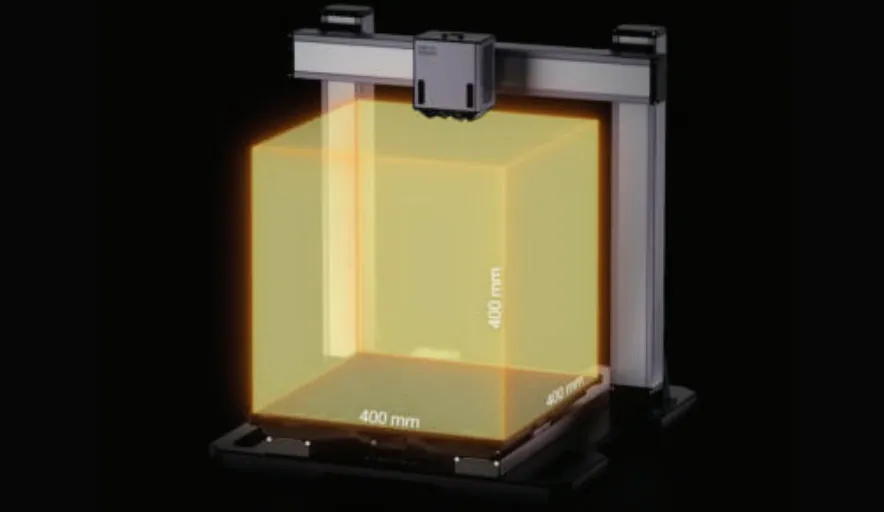

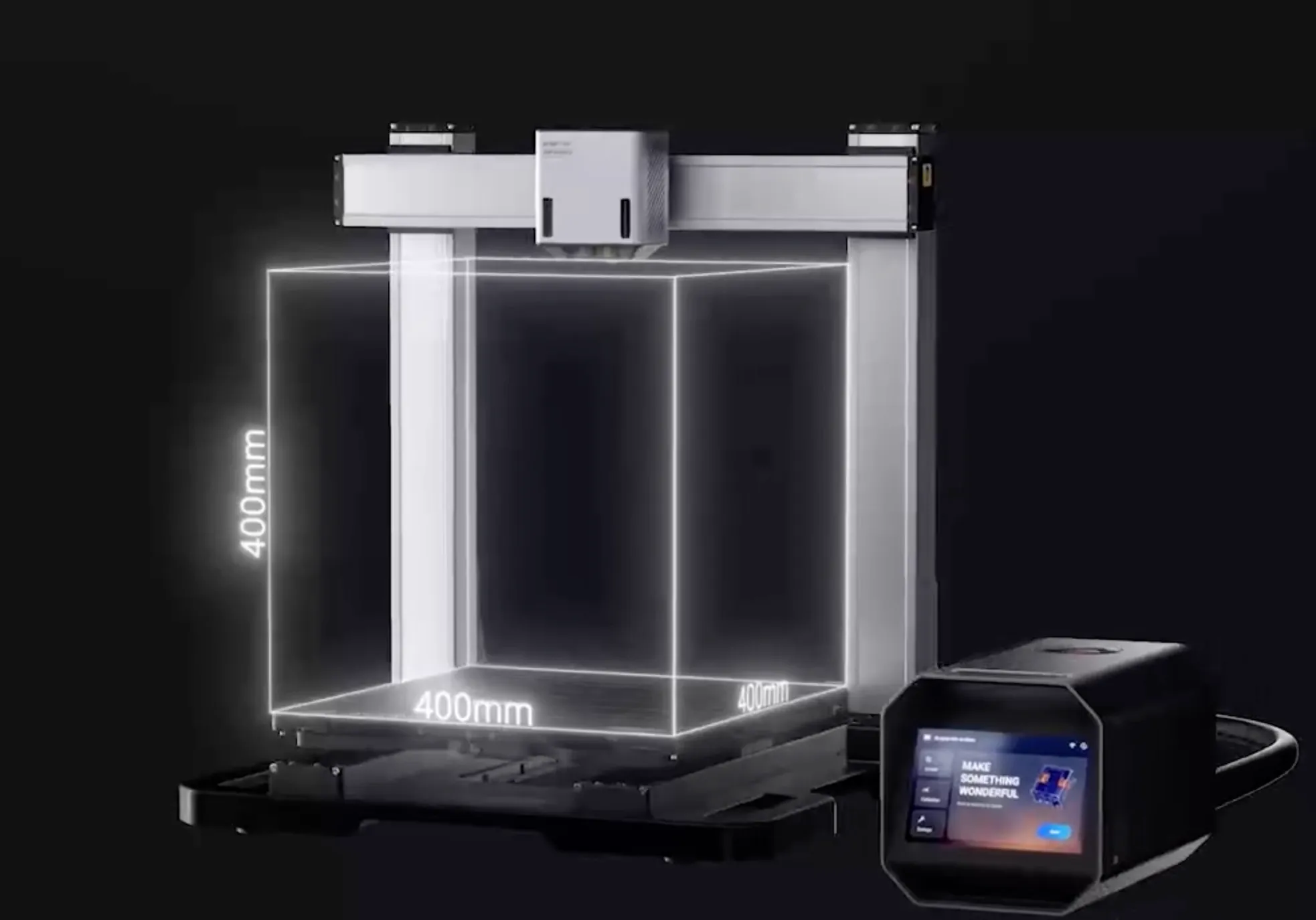

400 × 400 × 400mm Large Build Volume
With a 400mm × 400mm × 400mm build volume, this large-format 3D printer enables printing of oversized models or multiple parts in one job, expanding creative and production possibilities.

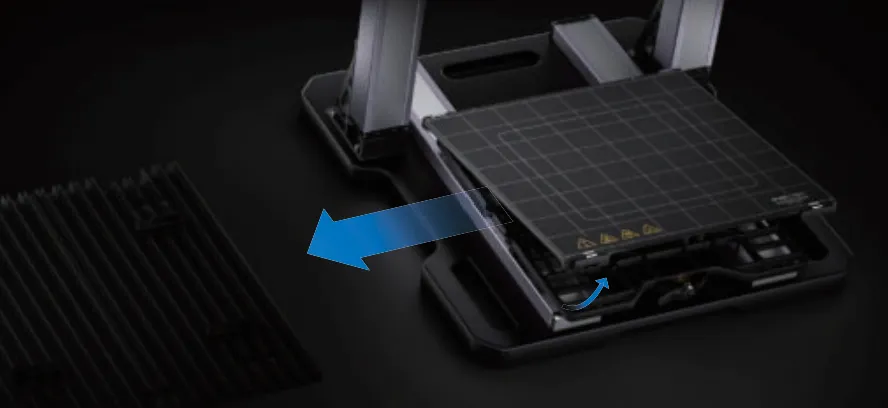

Quick-Swap Platform and Toolheads
Slide-in and lock design supports three functional modules. Toolheads and build platforms can be swapped within 60 seconds for seamless transitions between 3D printing, laser engraving, and CNC machining.

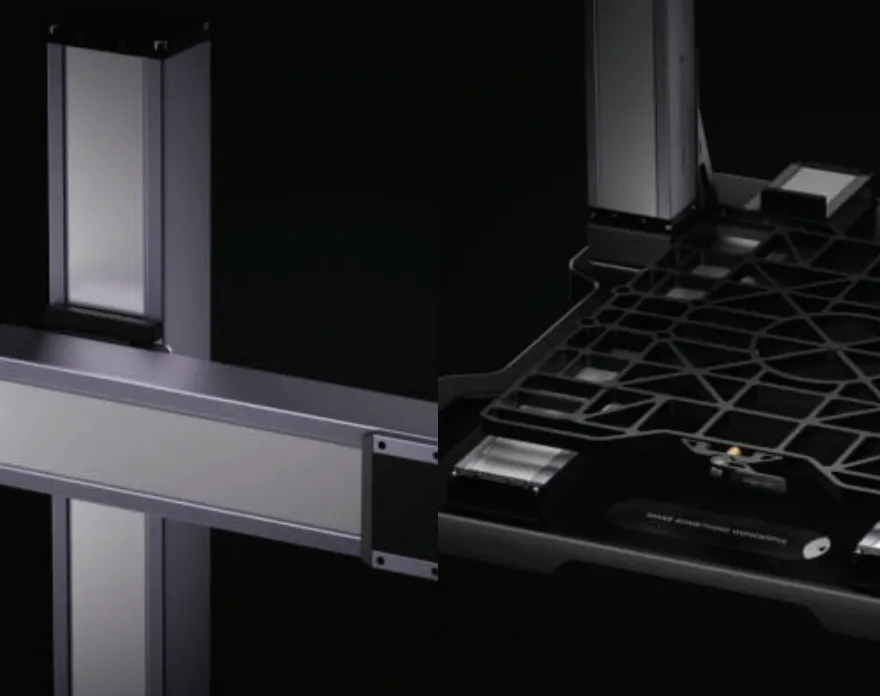

All-Metal Construction Upgrade
Built with a full-metal frame and upgraded one-piece die-cast base, the structure ensures maximum stability, even during high-speed CNC milling operations.

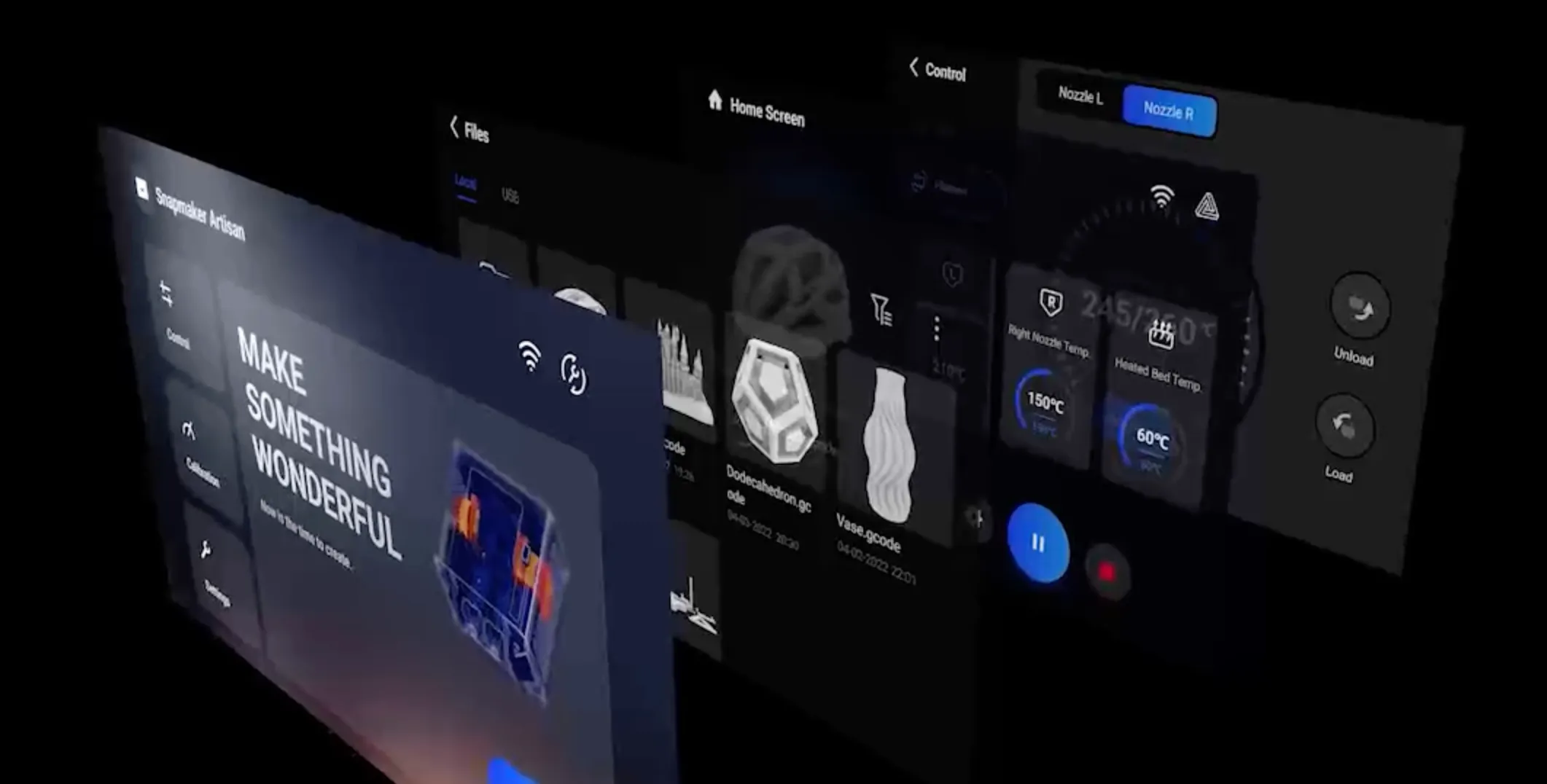

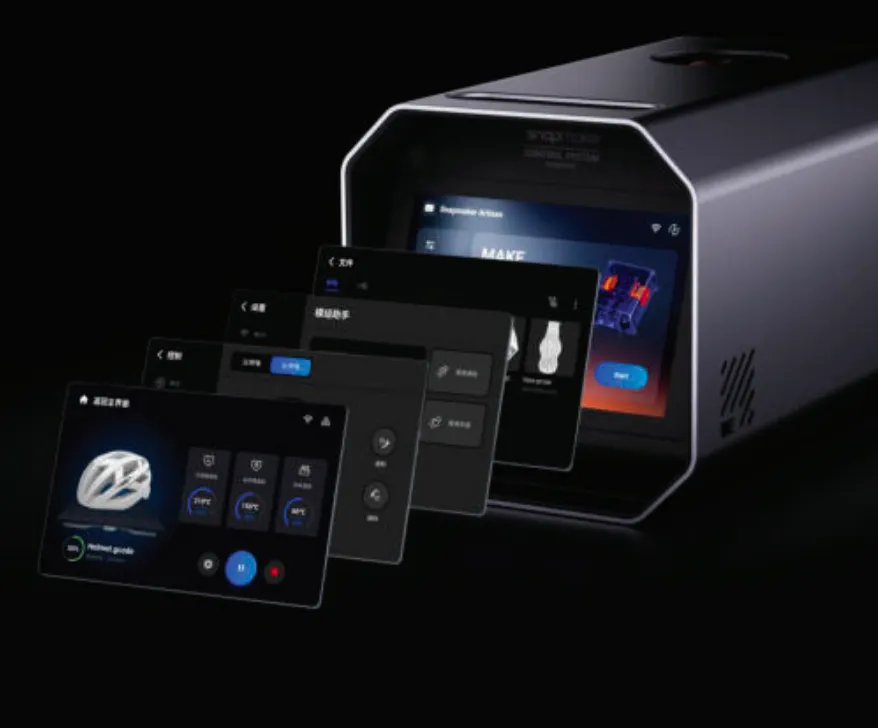

7-Inch Touchscreen Control System
A larger 7-inch touchscreen with intuitive UI design delivers smoother workflow control and an enhanced user experience across all manufacturing modes.
Snapmaker Luban All-in-One CAM Software
Snapmaker Luban provides integrated workflows for 3D printing, laser cutting, and CNC carving. One software solution handles all three fabrication processes efficiently.
Enhanced Preset Print Modes
Updated Luban presets offer optimized print profiles, enabling one-click printing without complex parameter adjustments.
Advanced Parameter Control
For experienced users, fine-tuning access to advanced parameters allows precise control over the entire manufacturing process.
Upgraded 3D Printing Performance
Compared to the 2.0 series, Artisan improves print speed, precision, material compatibility, and usability, delivering high-quality 3D prints with greater consistency.

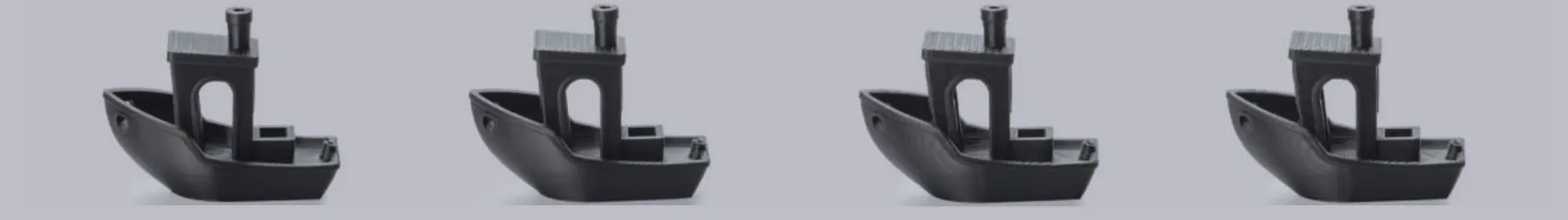

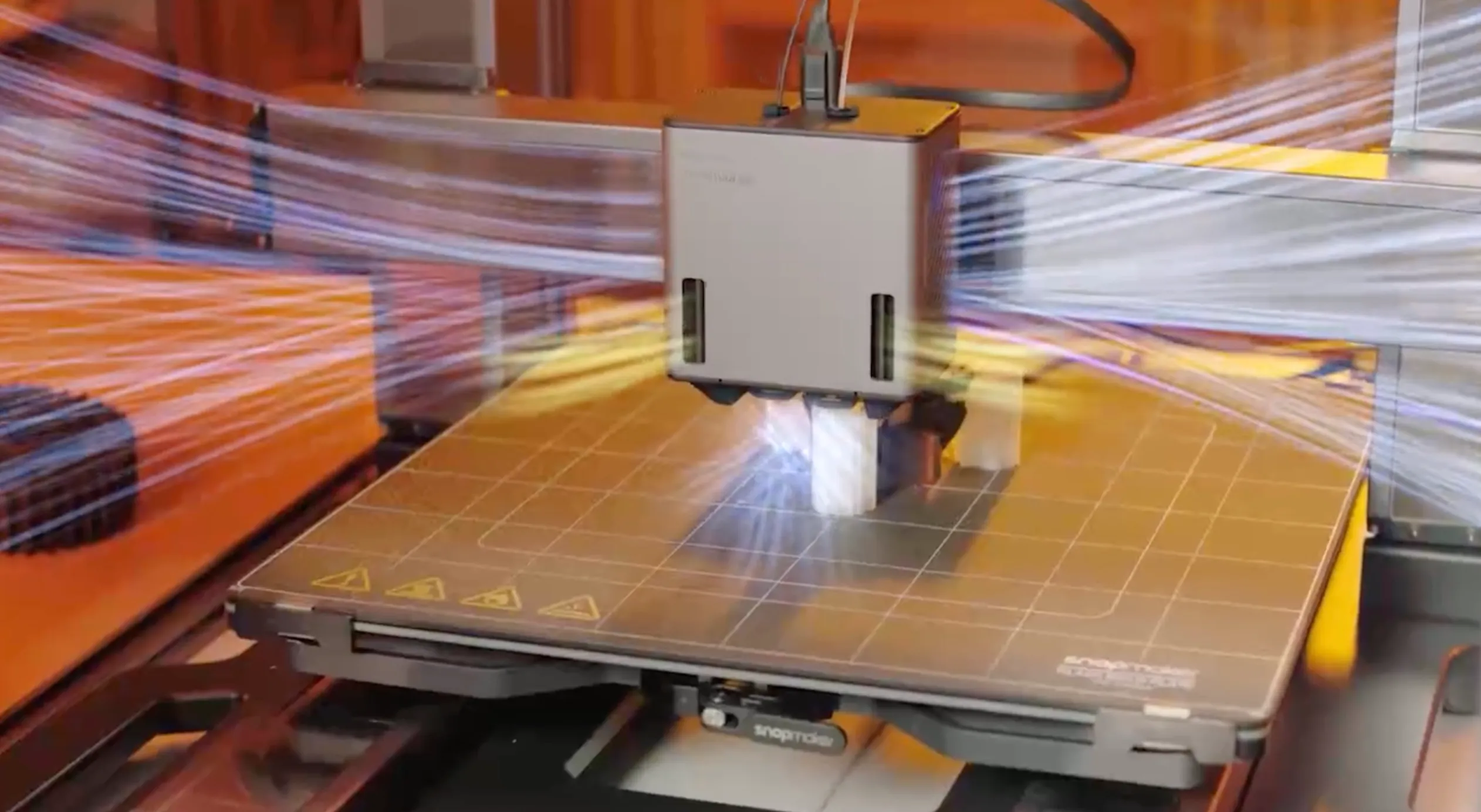

±0.1mm Accuracy at 180mm/s High-Speed Printing
Optimized motion control algorithms enable dimensional accuracy of ±0.1mm even at 180mm/s high-speed 3D printing.
| Print Mode | Performance Parameters | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fine |
Print Speed: 40 mm/s Acceleration: 800 mm/s² Layer Height: 0.12 mm | ||||||||||||||||||||||||
| Normal |
Print Speed: 80 mm/s Acceleration: 1,000 mm/s² Layer Height: 0.16 mm | ||||||||||||||||||||||||
| Fast |
Print Speed: 120 mm/s Acceleration: 1,500 mm/s² Layer Height: 0.20 mm | ||||||||||||||||||||||||
| Ultra Fast |

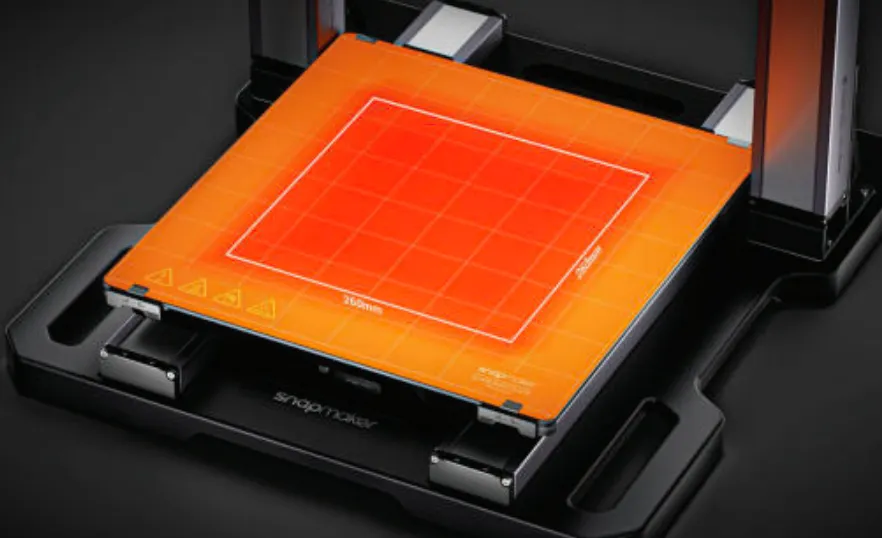

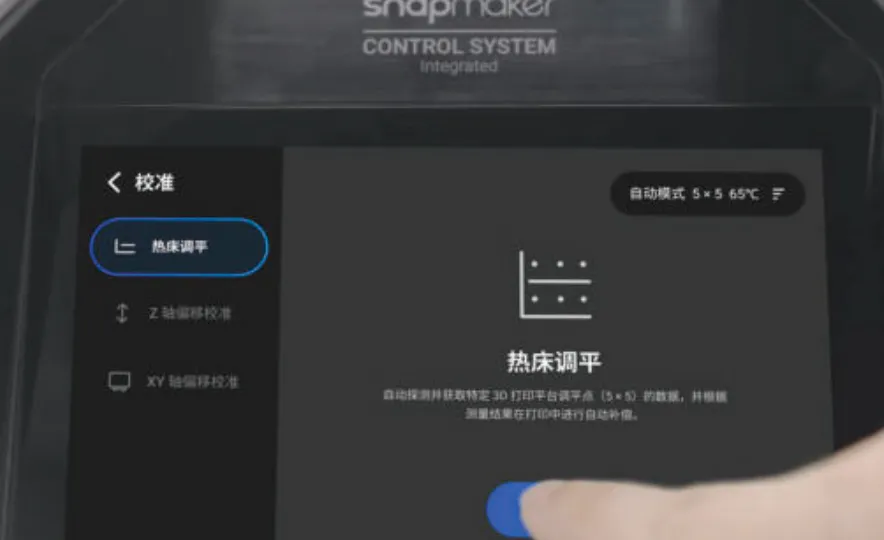

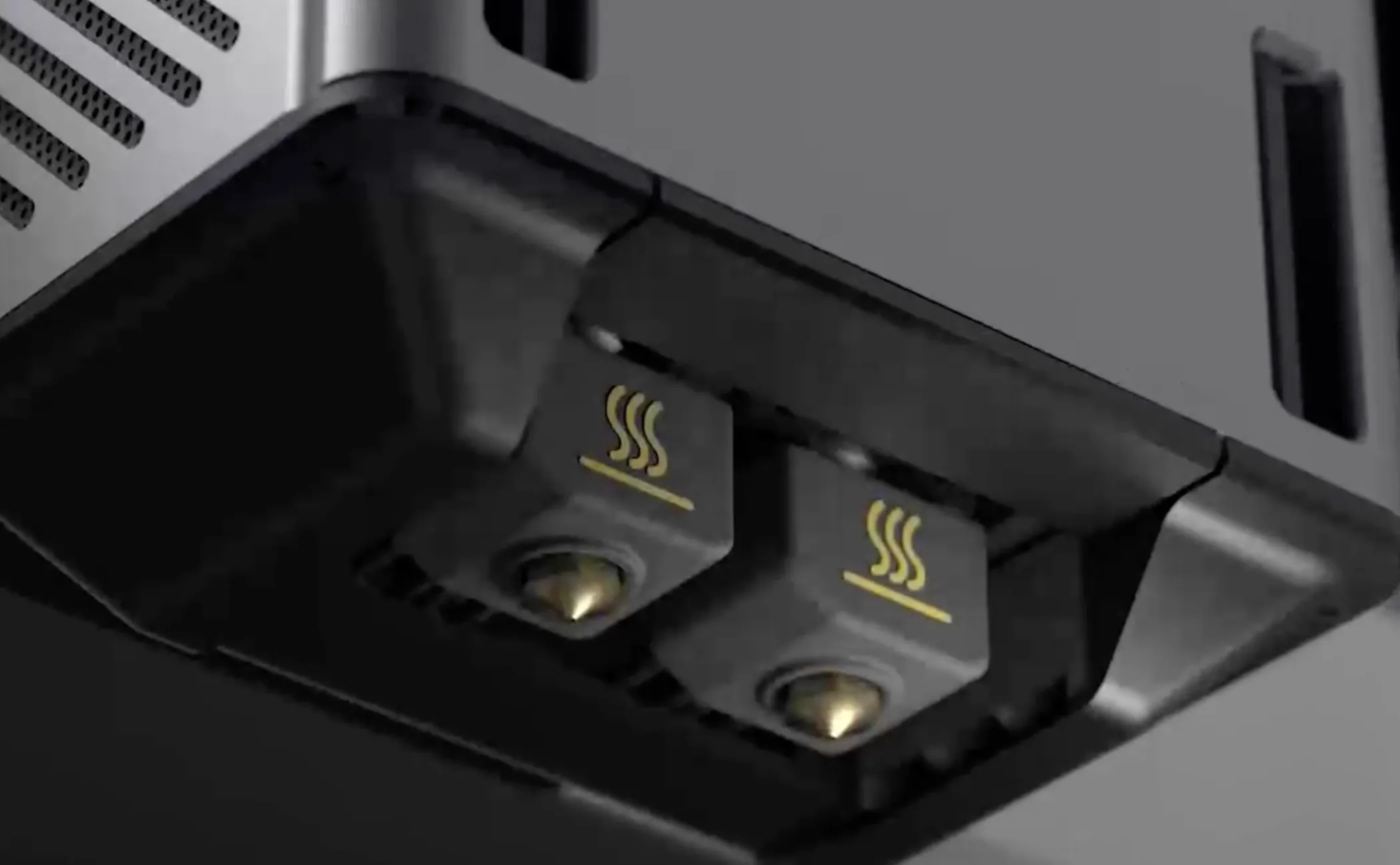

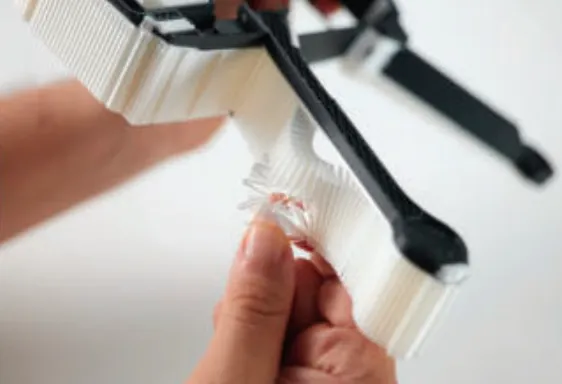

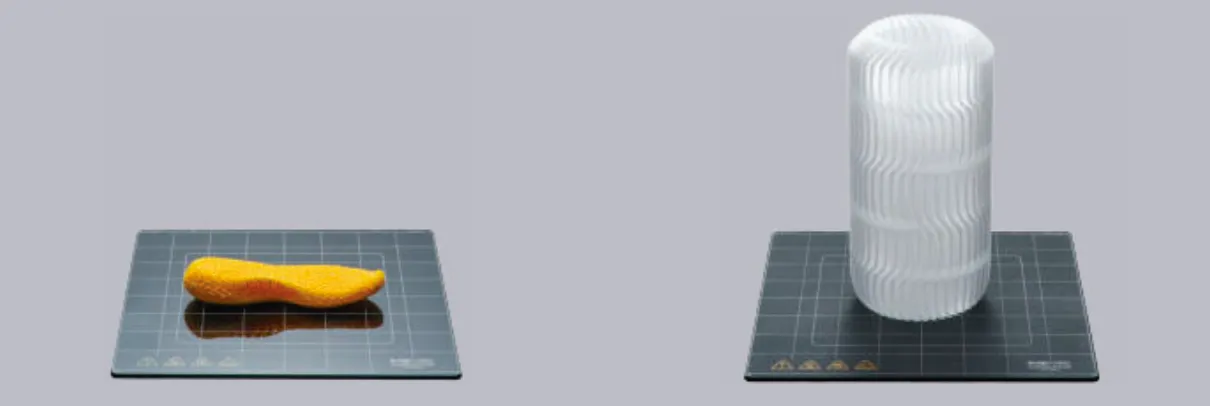

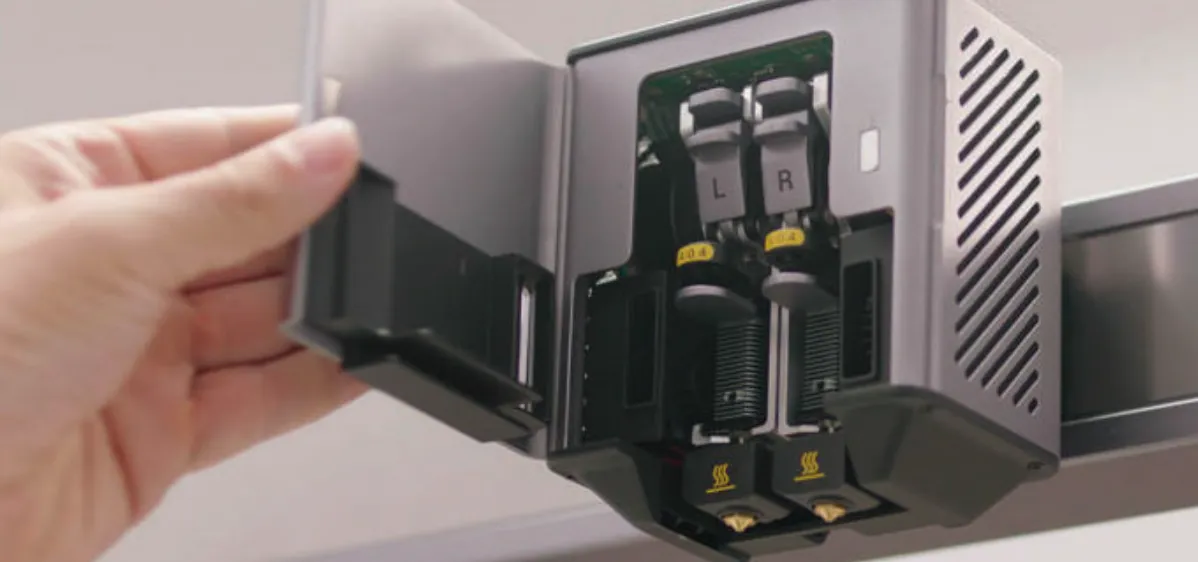

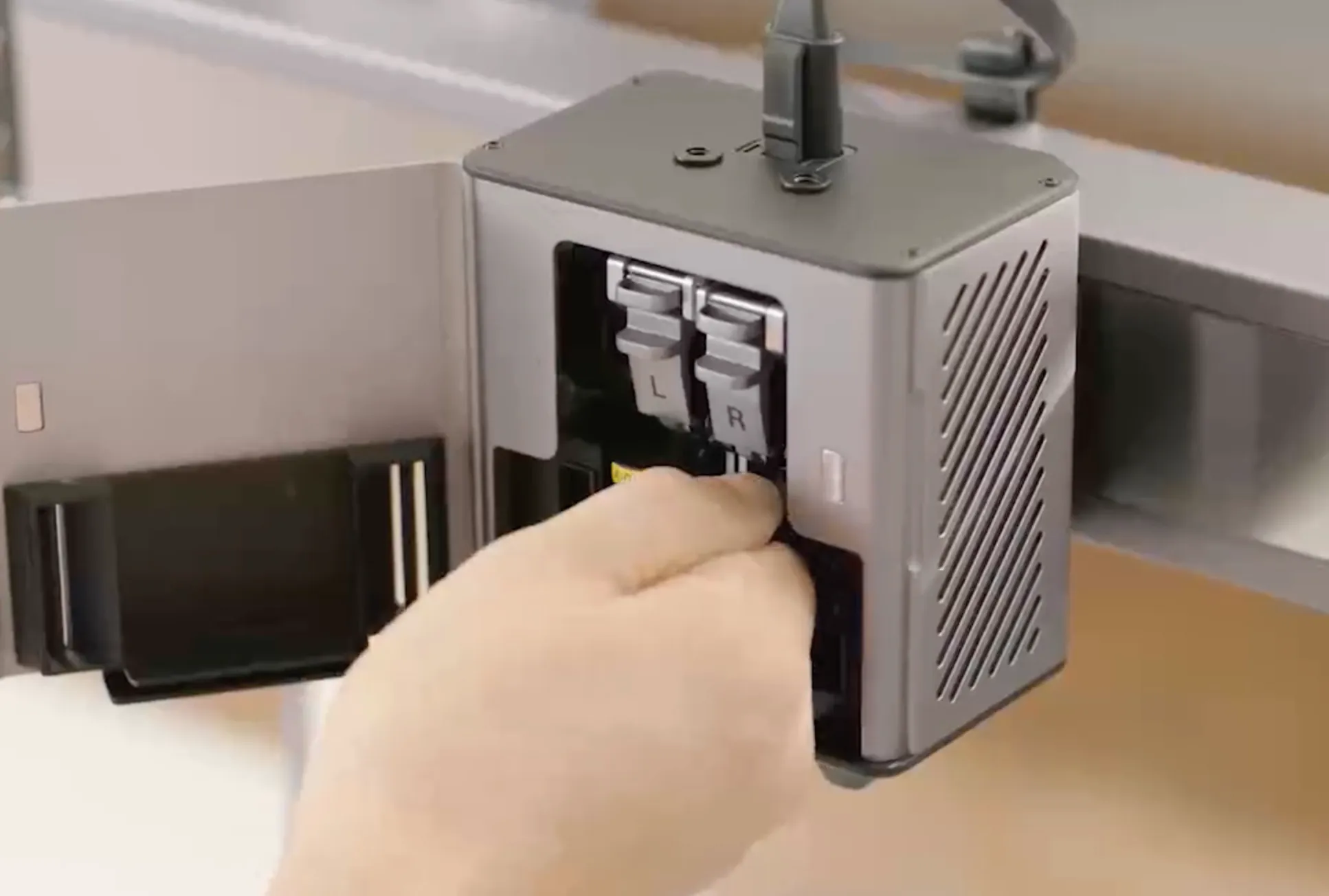

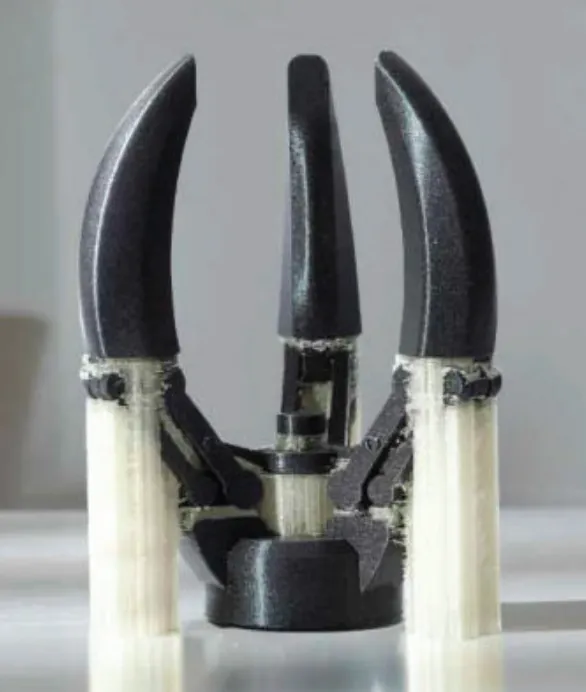

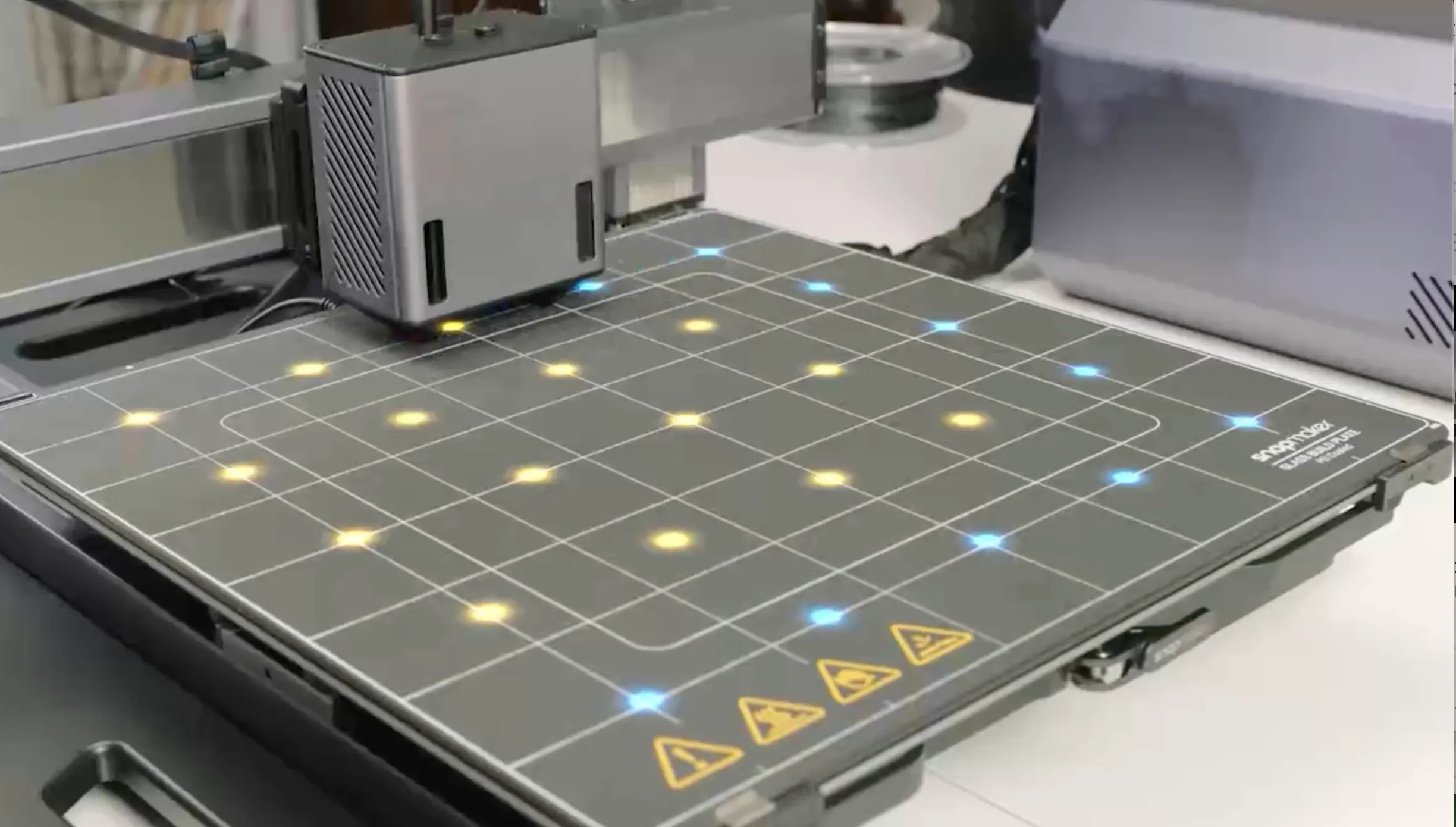

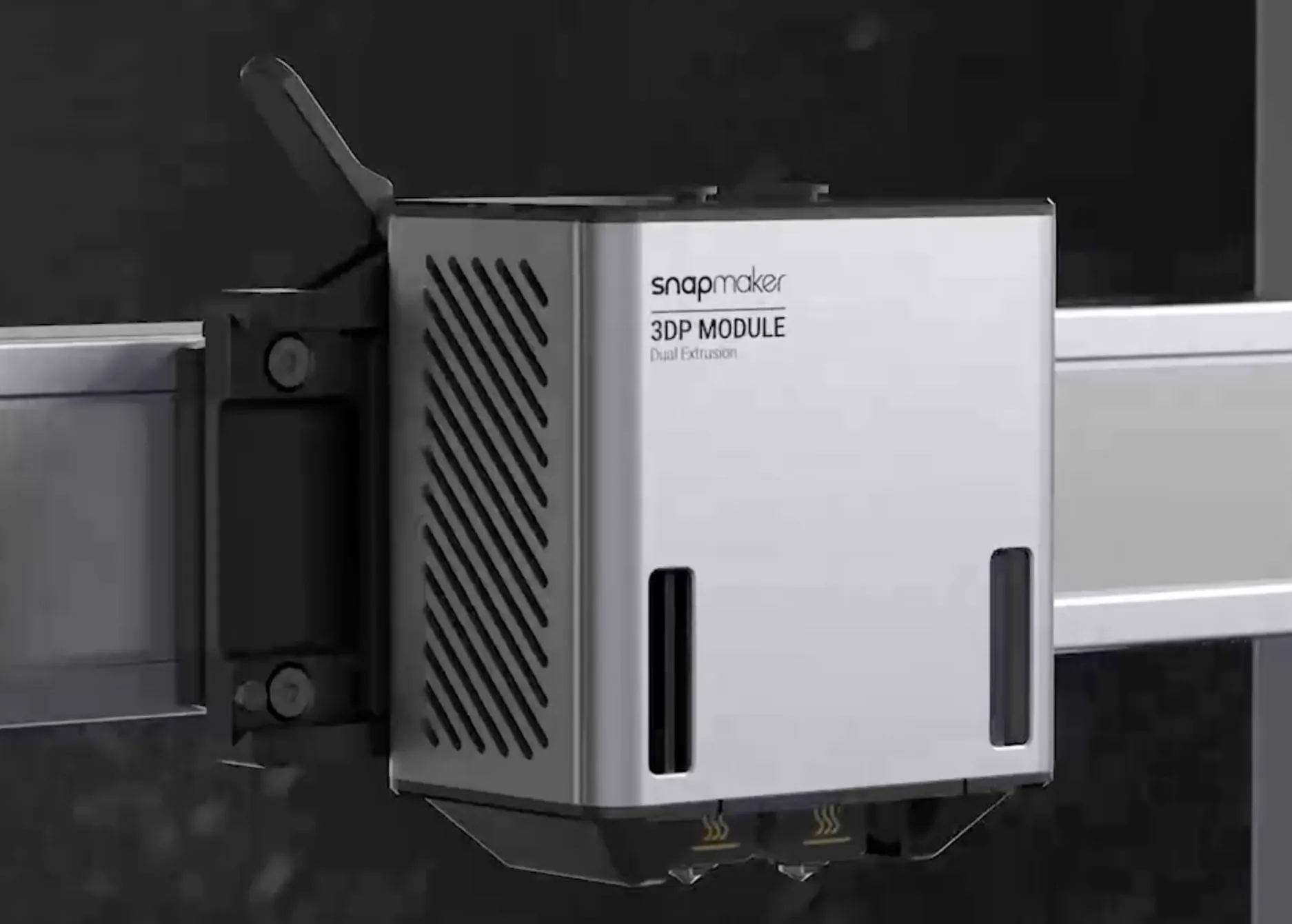

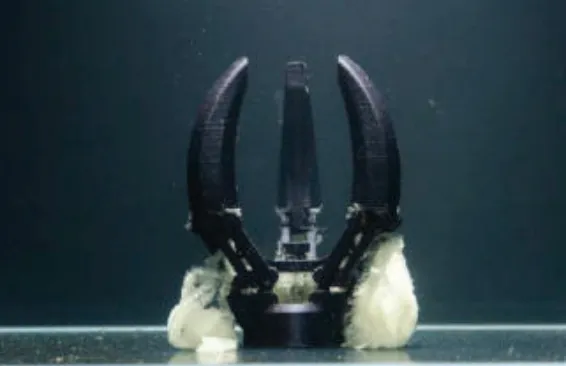

Print Speed: 200 mm/s Acceleration: 2,000 mm  Dual Extrusion with Automatic Nozzle LiftingThe dual extrusion 3D printing module features automatic nozzle lifting, enabling faster and quieter material switching for improved dual-material and dual-color printing.  Dissolvable Support PrintingSupports PVA and HIPS dissolvable materials, allowing complex geometries to be printed with clean surfaces and professional finishing.  Easy-Remove Support PrintingBreakaway support materials provide reliable support performance while significantly reducing removal difficulty and minimizing surface marks.   Dual-Zone Heated BedThe 260 × 260mm central high-temperature zone heats to 60°C within 2–3 minutes and up to 110°C maximum, while outer zones reach 80°C. Selective heating reduces energy consumption and warm-up time. Three-Step Automatic CalibrationAutomatically calibrates bed leveling and dual-nozzle Z offset, followed by semi-automatic X/Y alignment for precise dual-material or dual-color printing.    Dual-Sided Print SurfaceOne side features smooth glass ideal for TPU and flexible filaments, while the PEI-coated side enhances adhesion for PLA, PETG, and standard materials. Expanded Engineering Material SupportImproved extrusion temperature range, nozzle options, and slicing algorithms allow printing of advanced materials including nylon and fiber-reinforced composites.     Upgraded 10W Laser Engraving and CuttingEquipped with a 10W laser module, enabling faster and deeper laser cutting and engraving across a wide range of materials.

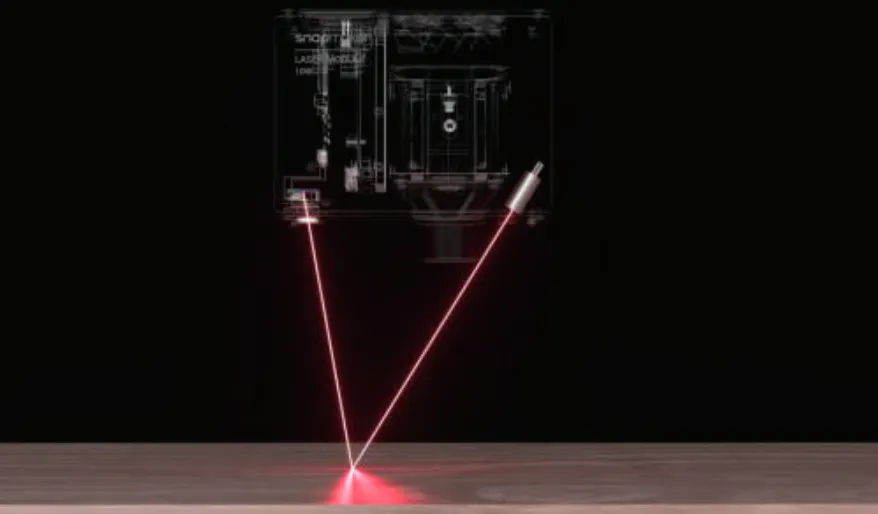

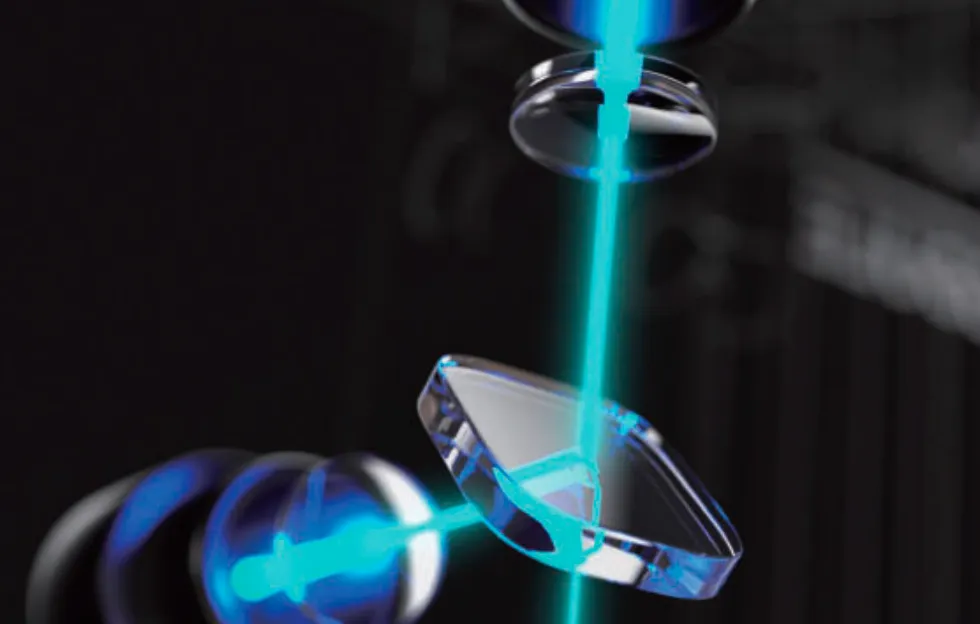

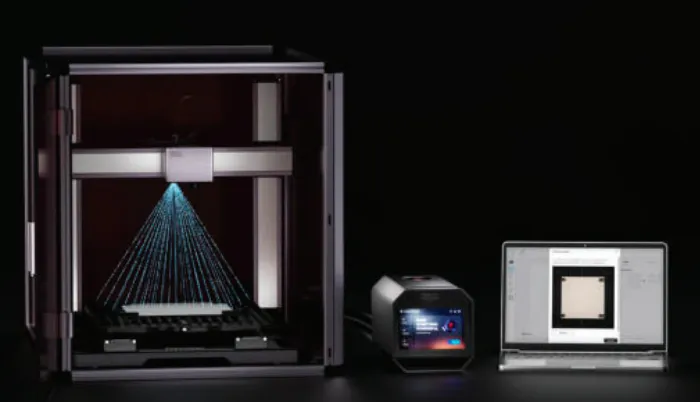

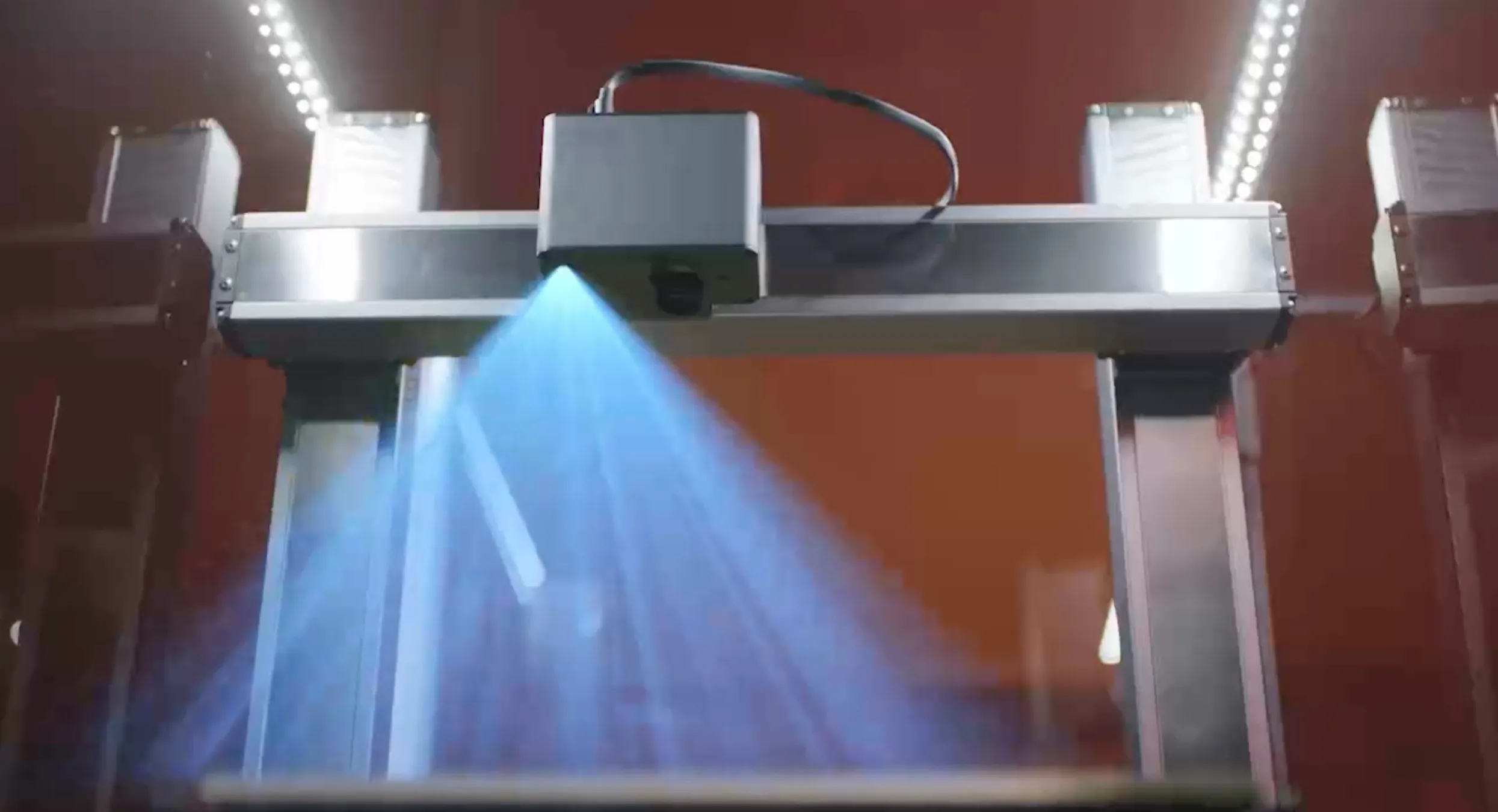

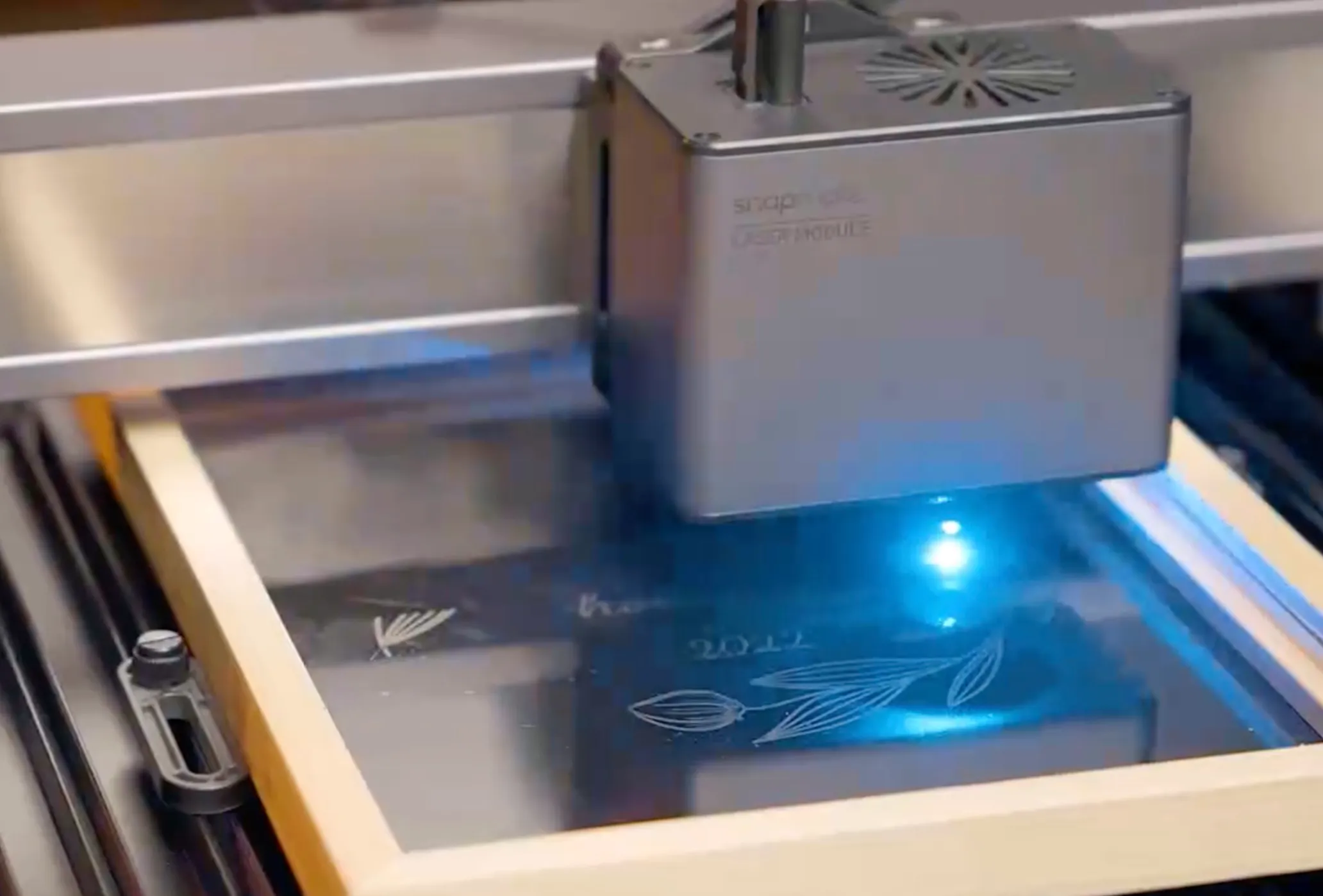

Up to 8mm Single-Pass Laser CuttingThe 10W laser achieves up to 8mm cutting depth per pass and engraving speeds up to 6000mm/min, delivering up to 8× performance over the 1.6W module. 0.05mm × 0.2mm Ultra-Fine Laser SpotBeam combining technology produces a high-power output with an ultra-fine laser spot for detailed engraving and sharper contours.  Laser Triangulation Measurement SystemThe laser triangulation system measures material thickness and completes automatic focusing within seconds for precise engraving and cutting.  Wide-Angle Camera with One-Click PreviewEquipped with a wide-angle camera, the system generates a real-time background preview for laser engraving and cutting, allowing users to visualize the final result before processing.   Wide Range of Processable MaterialsSupports laser engraving and cutting on materials including leather, fabric, wood, stone, and certain metals. 200W CNC Module UpgradeThe 200W CNC module increases power by 300% and spindle speed by 50%, delivering up to 6× faster hardwood machining performance.

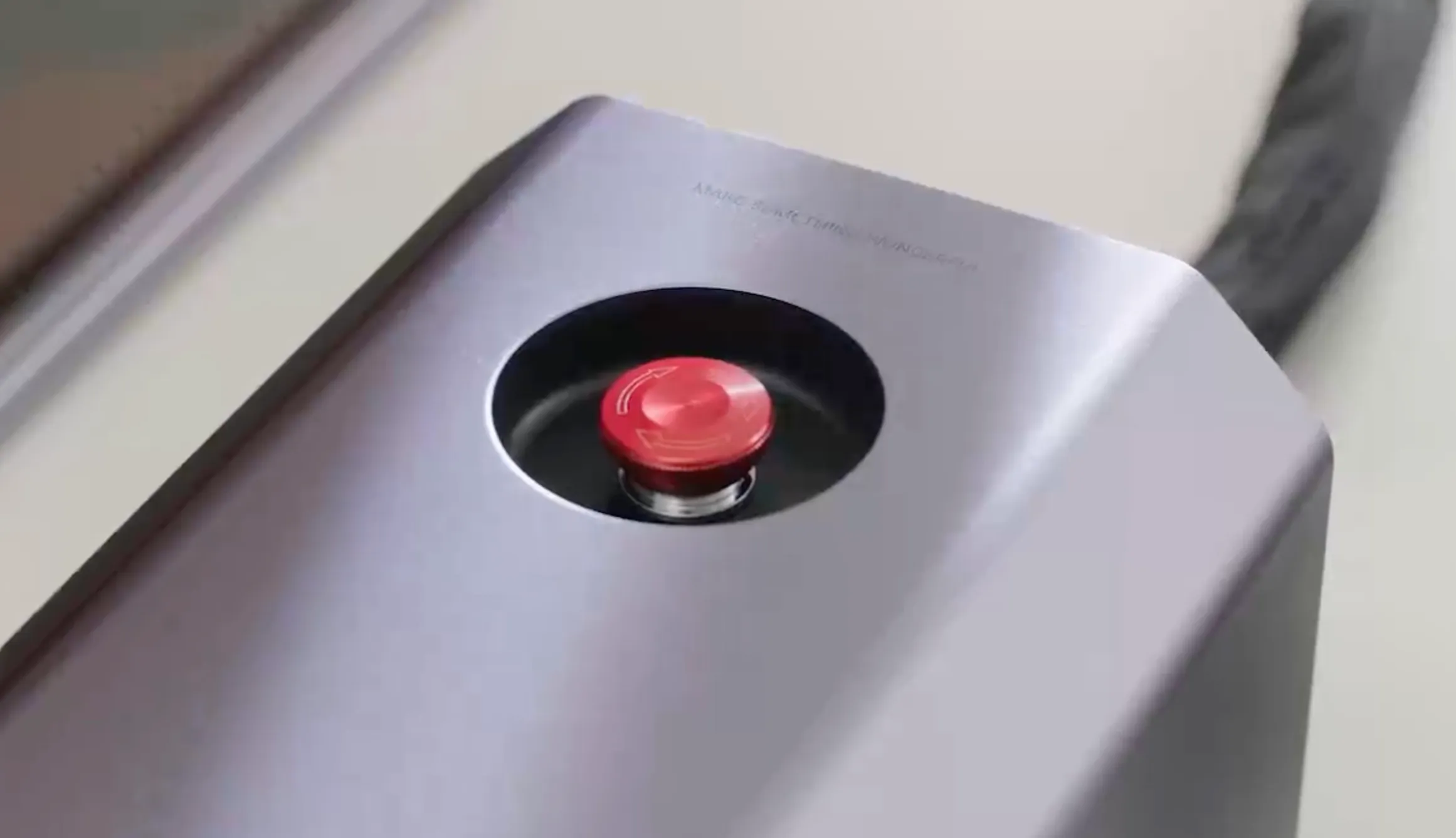

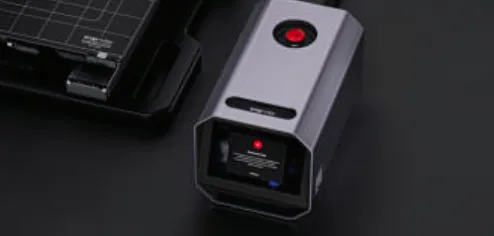

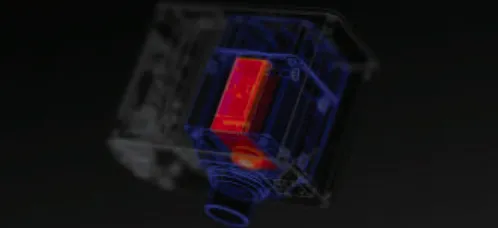

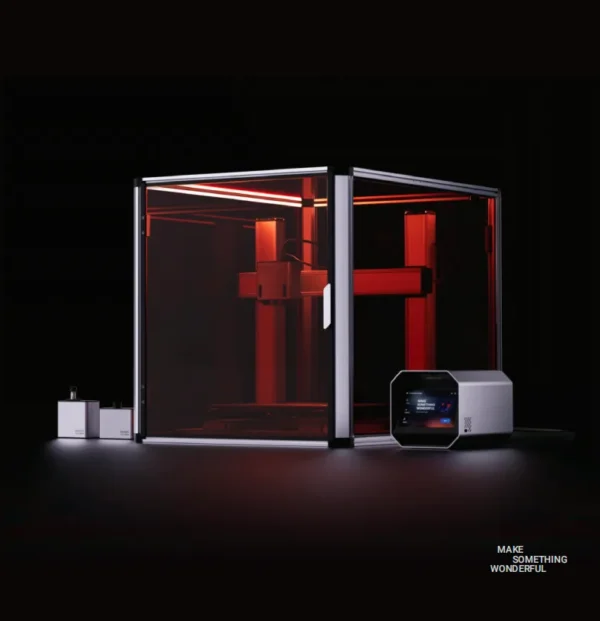

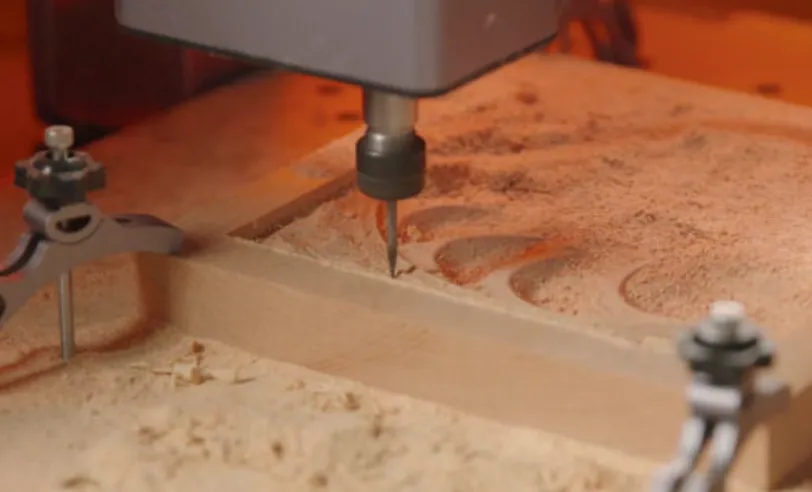

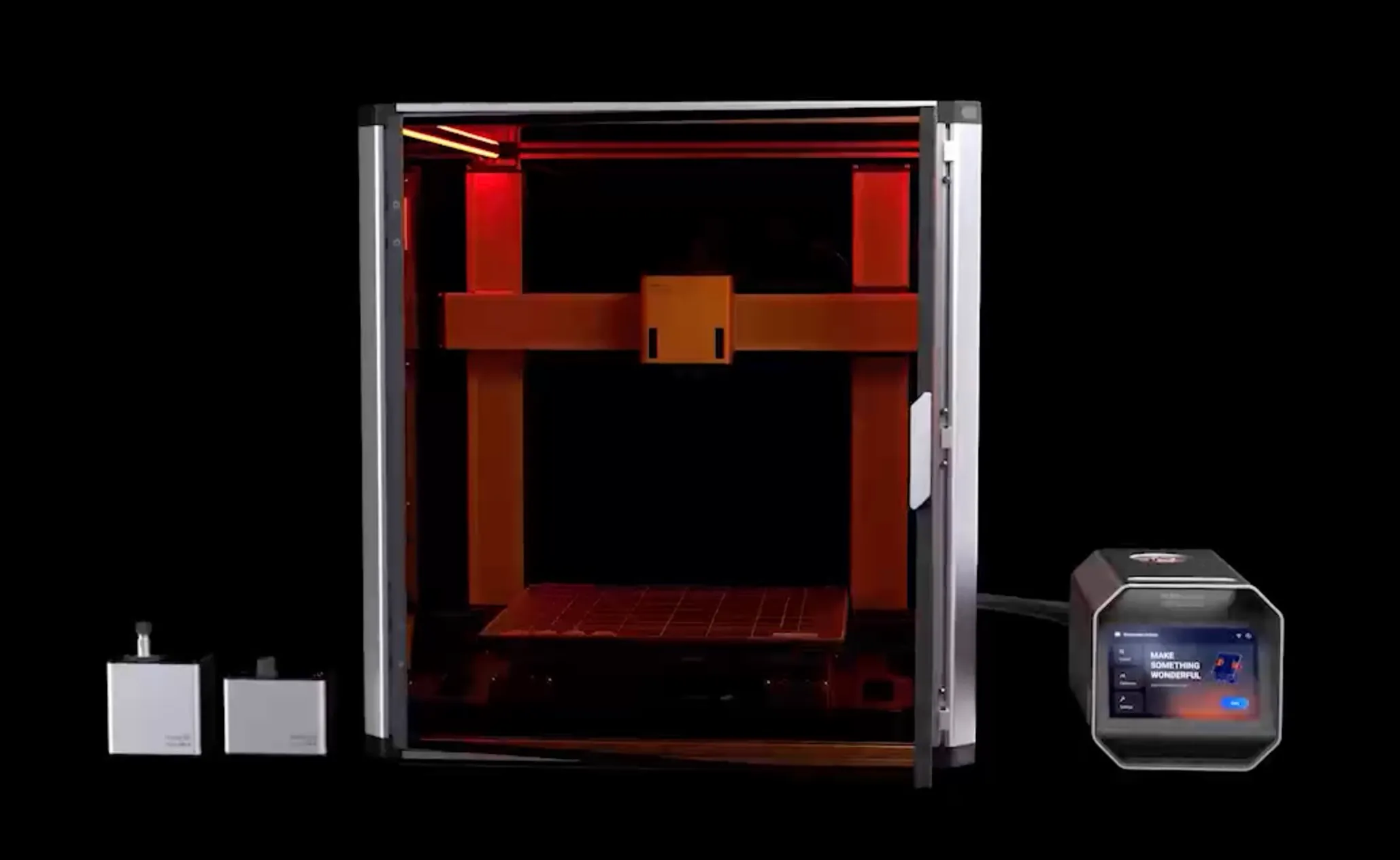

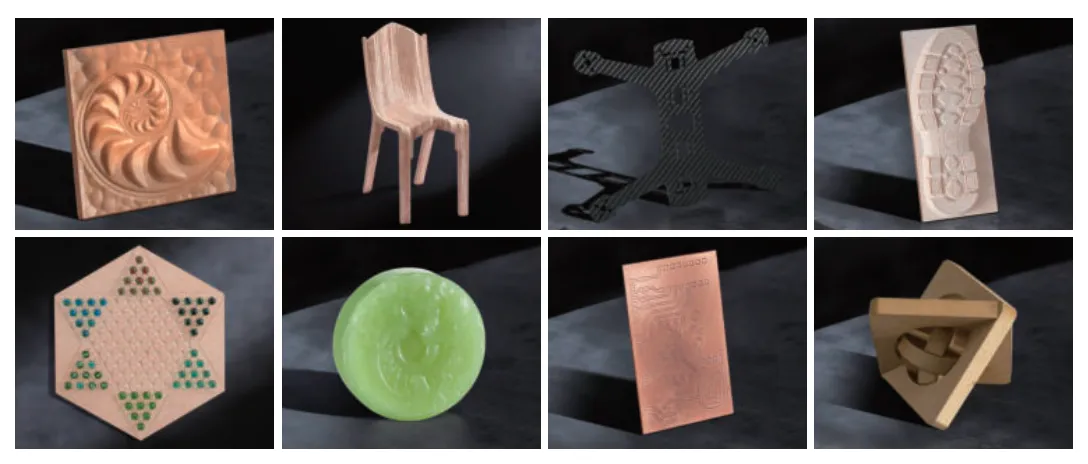

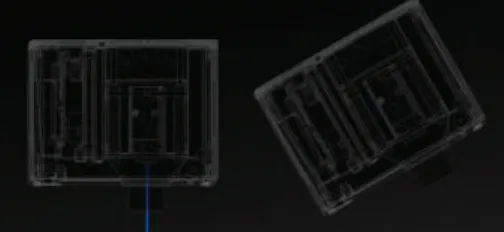

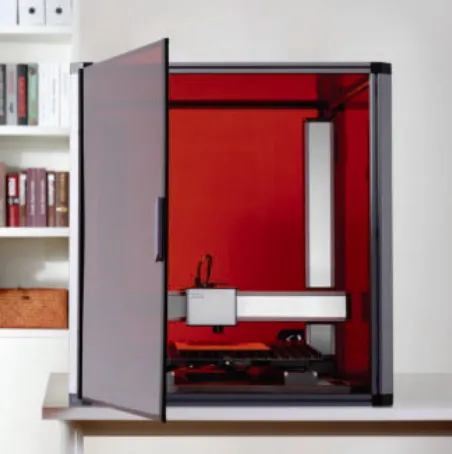

 0.2mm CNC Machining PrecisionEnhanced linear rigidity and higher spindle speed enable CNC carving precision down to 0.2mm with smooth surface finishes. Machining Both Soft and Hard MaterialsCapable of processing hardwood, composite boards, and even harder materials such as jade, expanding desktop CNC machining capabilities.  Enclosed Safety HousingThe optional enclosure reduces laser hazard from Class 4 to Class 1, making it safer for home or studio environments. Door Detection Safety PauseBuilt-in door detection automatically pauses laser engraving or CNC machining when the enclosure door is opened.   Emergency Stop and Power Cut ProtectionIntegrated emergency stop button and power cutoff system ensure immediate shutdown during unexpected situations.  Laser Gyroscope Tilt ProtectionAn internal gyroscope automatically disables the laser output if excessive tilt is detected.   Laser Overheat ProtectionThe laser module automatically stops operation when temperature exceeds 55°C to protect internal components. More Options    DownloadsProduct videos |
Snapmaker Artisan 3-in-1 FDM 3D Printer
