FibreSeeker 3 Continuous Carbon Fibre Dual Nozzles 3D Printer

0 customer reviews

buy now

  • Continuous Carbon Fibre Reinforcement CFC technology produces strong, lightweight composite parts with tensile strength up to 900MPa

  • CFC + FFF Dual-Nozzle Printing combines plastic filament and continuous fibre reinforcement, supporting up to three materials in one print

  • Three Versatile Printing Modes switch between high-speed FFF, high-strength CFC + FFF and hyper-strength continuous fibre printing

  • Fast, Large-Format Printing up to 500mm/s FFF speed with a spacious 300 × 300 × 245mm build volume

  • Active Heated Build Chamber a 65°C chamber, 350°C nozzles and 120°C heated bed support demanding engineering materials

  • Intelligent Slicing & Monitoring Rocket Slicer, automatic leveling, vibration compensation and an integrated camera simplify reliable composite printing

“`

Looking for 3D Printer Accessaries

Frequently bought together with Fiberseeker 3

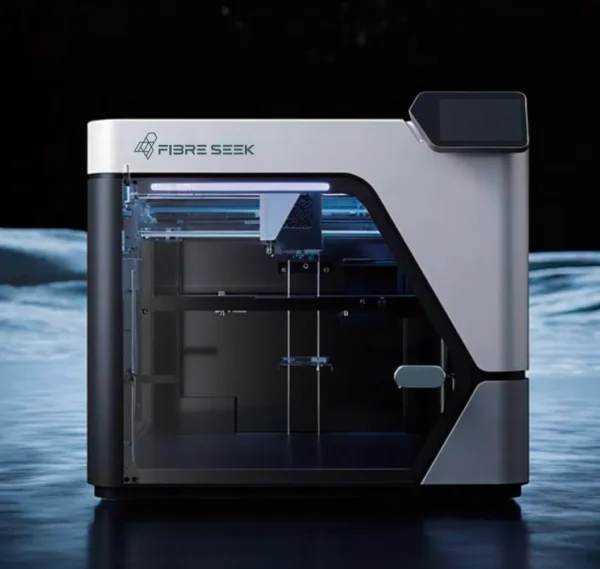

Front view of FibreSeeker 3 continuous carbon fibre 3D printer
Creality Hyper Series PLA White 1.75mm 1kg 3D printer filament on a recycled cardboard spool with a white 3D printed deer model.

Fiberseek Combo

Read more

Specification

General Specifications

Product SpecificationsFibreSeeker 3 Continuous Carbon Fibre 3D Printer
Fibre Printing TechnologyComposite Fibre Co-extrusion (CFC)
Plastic Printing TechnologyFused Filament Fabrication (FFF)
Device Dimensions615 × 595 × 540 mm
Device Weight32 kg
Build Volume300 × 300 × 245 mm
Outer FramePlastic and Glass
Printing Accuracy±0.2 mm
Minimum Layer Thickness50 μm
HotendAll-Metal Hotend
Nozzle MaterialHardened Steel
Maximum FFF Nozzle Temperature350°C
Maximum CFC Nozzle Temperature350°C
FFF Nozzle Diameter0.4 mm
CFC Nozzle Diameter0.7 mm
Fibre CutterBuilt-in
FFF Filament Diameter1.75 mm
Active Chamber HeatingSupported
Maximum Chamber Temperature65°C
Build Plate TypeFlexible High-Temperature Build Plate
Maximum Heated Bed Temperature120°C
Bed LevelingFully Automatic Leveling
FFF Material StorageRear Spool Hangers
CFC Fibre StorageEmbedded Fibre Chamber
Maximum FFF Print SpeedUp to 500 mm/s
Maximum CFC Print SpeedUp to 20 cc/h
Part Cooling FanClosed-Loop Control
Hotend Cooling FanClosed-Loop Control
Main Control Board FanClosed-Loop Control
Supported FFF MaterialsPLA, PETG, PC, PA, PACF and PETGF
Supported CFC MaterialsX-CCF Continuous Carbon Fibre and X-CGF Continuous Glass Fibre
Composite Tensile StrengthUp to 900 MPa
Input Voltage100–120 VAC / 200–240 VAC, 50/60 Hz
Maximum Power1350 W
Control Screen5-Inch Touchscreen
Internal StorageBuilt-in 32 GB eMMC and USB Port
Control InterfaceTouchscreen and PC Application
Live View CameraBuilt-in, 1280 × 720 Resolution
Plastic Filament Breakage SensorSupported
Plastic Filament Clogging SensorSupported
Fibre Breakage SensorSupported
Fibre Clogging SensorSupported
Slicing SoftwareRocket Slicer for FFF and CFC Printing
Supported Operating SystemsWindows and macOS
Supported File FormatsSTL, STP and 3MF

“`

FibreSeek company story and Composite Fibre Co-extrusion technology backgroundFibreSeek founders Ryan Liu, Fedor Antonov, Artem Naumov and Tuan TranphamFibreSeek key partners presentation cover with FibreSeeker 3 printerLogos of FibreSeek global industry, aerospace and research partnersFibreSeeker 3 continuous carbon fibre 3D printer product presentationFibreSeeker 3 CFC technology, continuous carbon fibre material and one-click software highlightsX-CCF continuous carbon fibre spool strength and reinforcement ratio comparisonFibreSeeker 3 CFC fibre printhead and FFF plastic printhead dual-nozzle systemFibreSeeker 3 multi-material printing and continuous fibre lattice infill structuresFibreSeeker 3 printer with a 300 × 300 × 245 mm large build volumeAura Slicer interface showing FibreSeeker 3 continuous fibre toolpaths and material distributionFibreSeeker 3 AI camera monitoring and active vibration compensation systemFibreSeeker 3 high-speed, high-strength and hyper-strength continuous fibre printing modesFibreSeeker 3 supported plastic, engineering and continuous fibre printing materialsFibreSeeker 3 continuous fibre 3D printed gears, tools and structural componentsRobotic dog leg support made with FibreSeeker 3 continuous carbon fibre printingLightweight drone frame reinforced with FibreSeeker 3 continuous carbon fibre printingFibreSeeker 3 continuous fibre applications including drone, tool, fixture and racket parts
FibreSeek company story and Composite Fibre Co-extrusion technology background
FibreSeek company history and CFC technology.
FibreSeek founders Ryan Liu, Fedor Antonov, Artem Naumov and Tuan Tranpham
FibreSeek founders and core leadership team.
FibreSeek key partners presentation cover with FibreSeeker 3 printer
FibreSeek key partners.
Logos of FibreSeek global industry, aerospace and research partners
FibreSeek global industry and research partners.

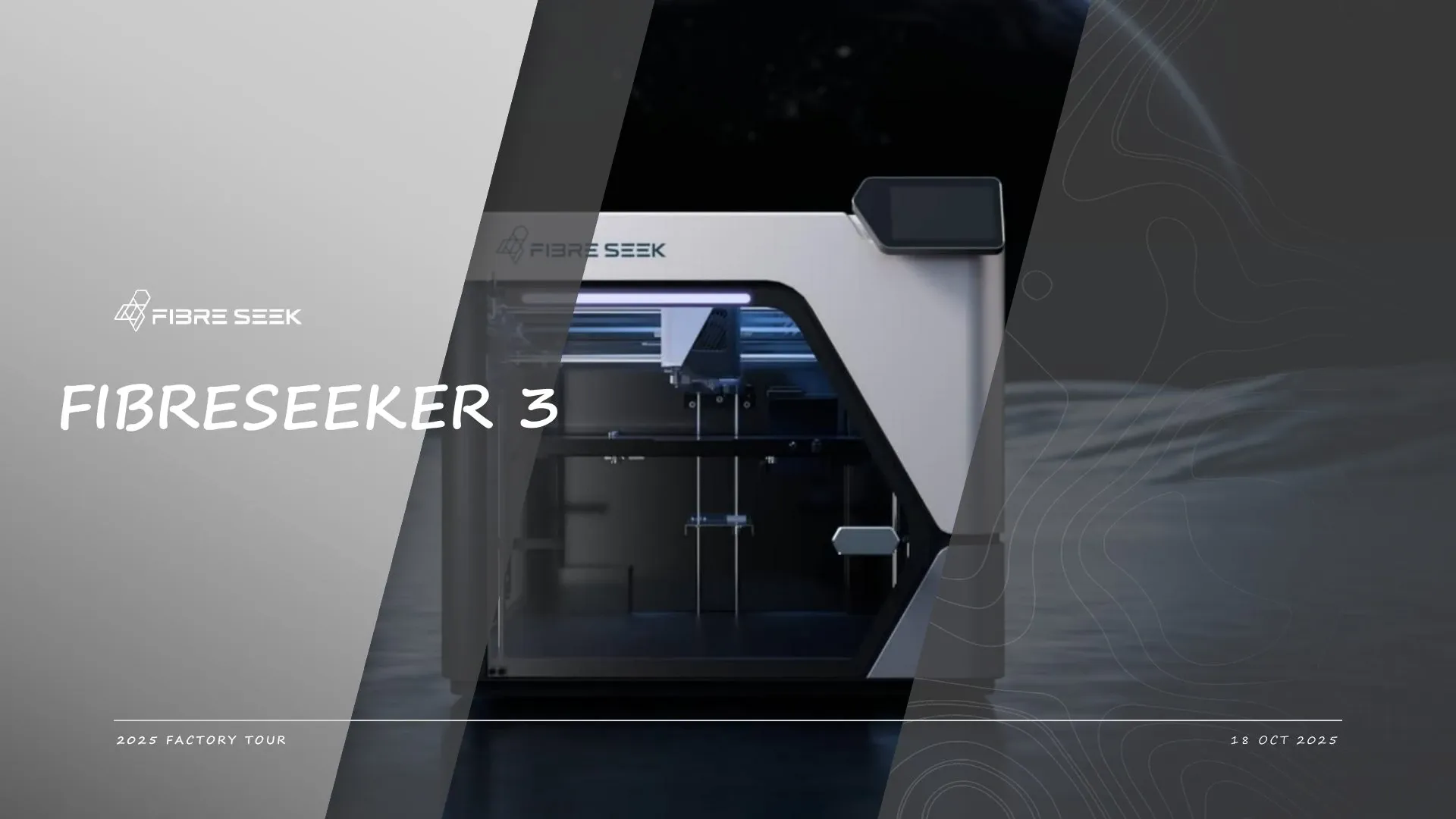

FibreSeeker 3 continuous carbon fibre 3D printer product presentation
FibreSeeker 3 continuous carbon fibre 3D printer.

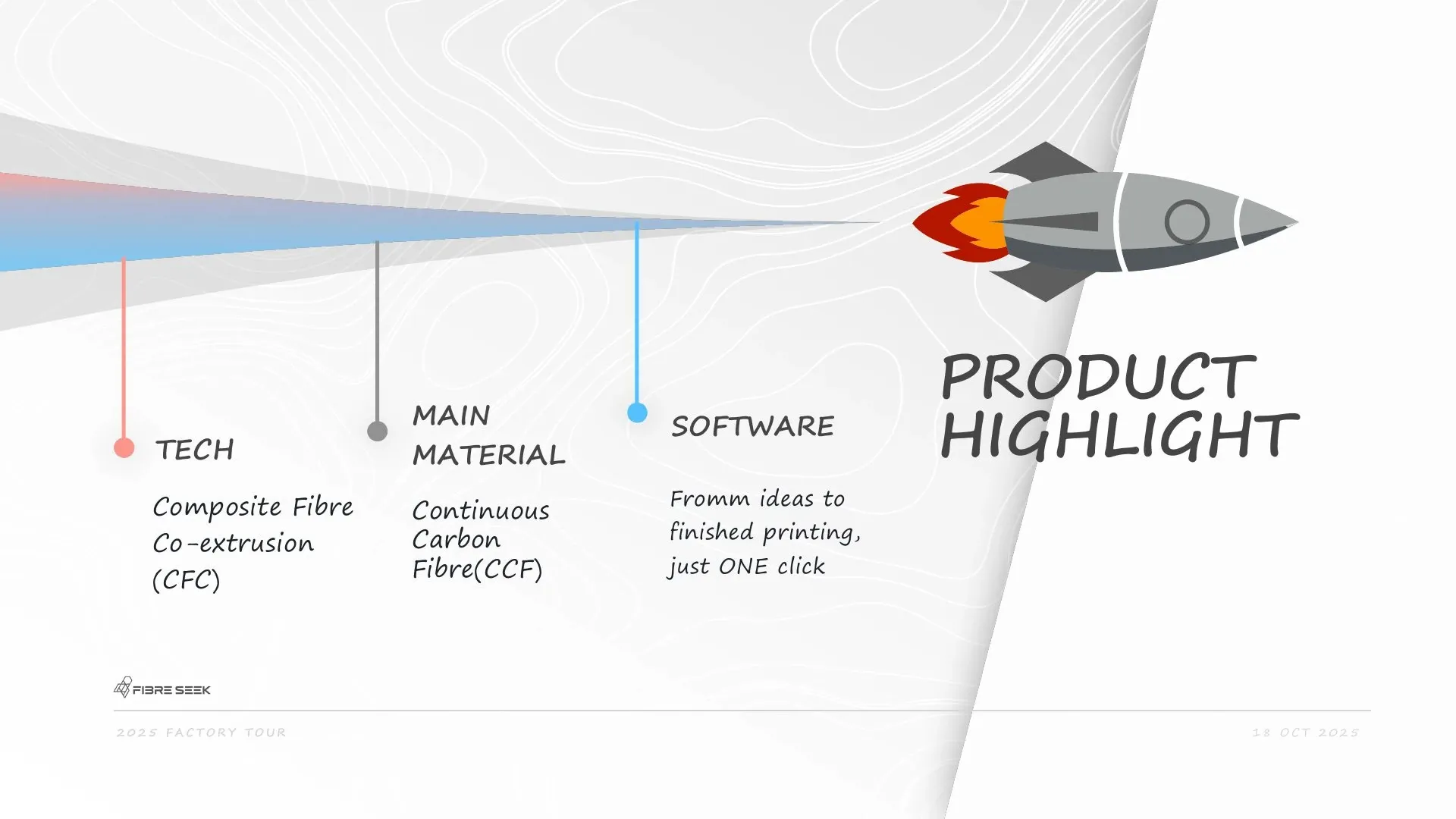

FibreSeeker 3 CFC technology, continuous carbon fibre material and one-click software highlights
FibreSeeker 3 core product highlights.
X-CCF continuous carbon fibre spool strength and reinforcement ratio comparison
FibreSeeker X-CCF continuous carbon fibre material.

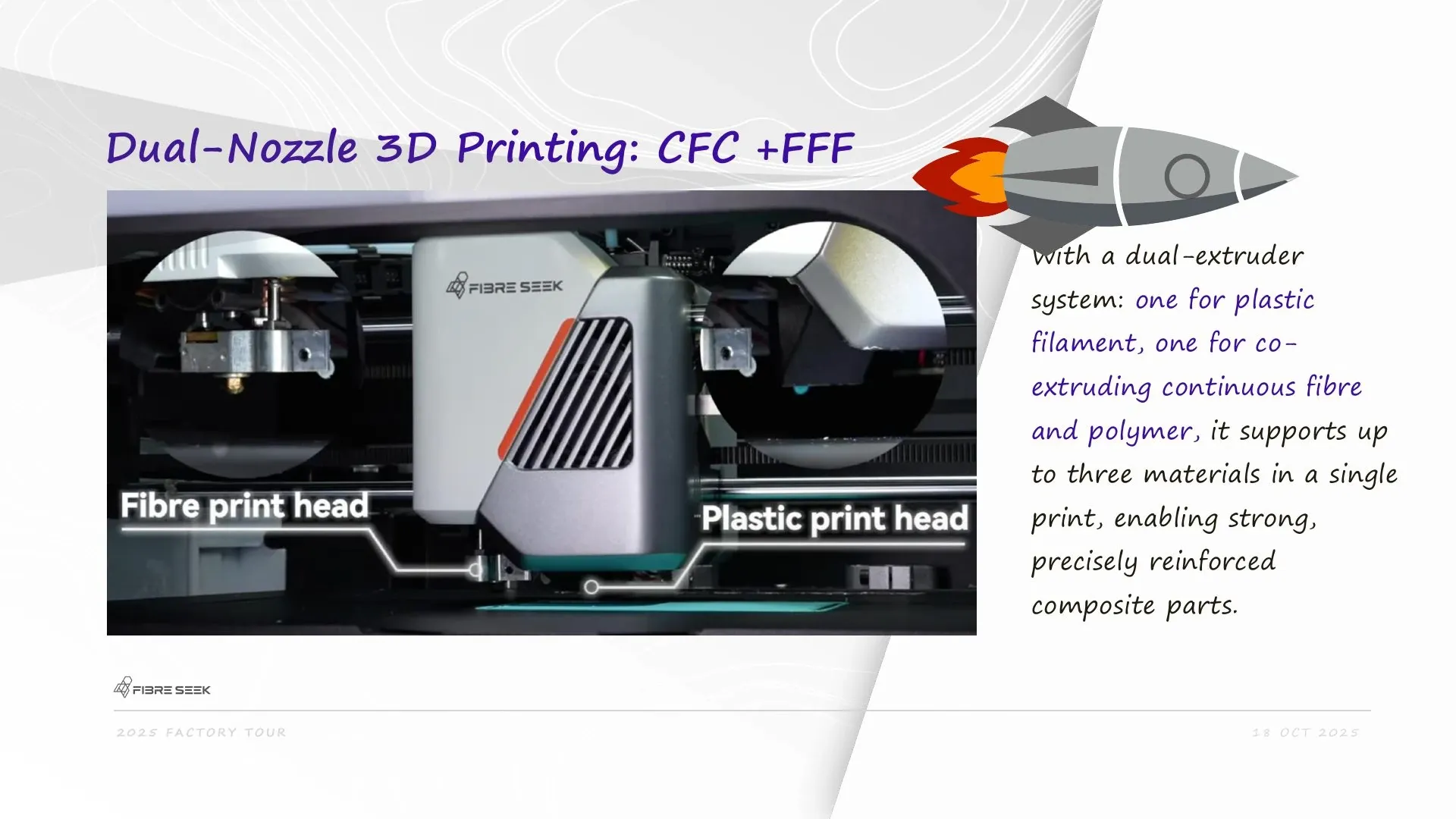

FibreSeeker 3 CFC fibre printhead and FFF plastic printhead dual-nozzle system
FibreSeeker 3 CFC and FFF dual-nozzle system.

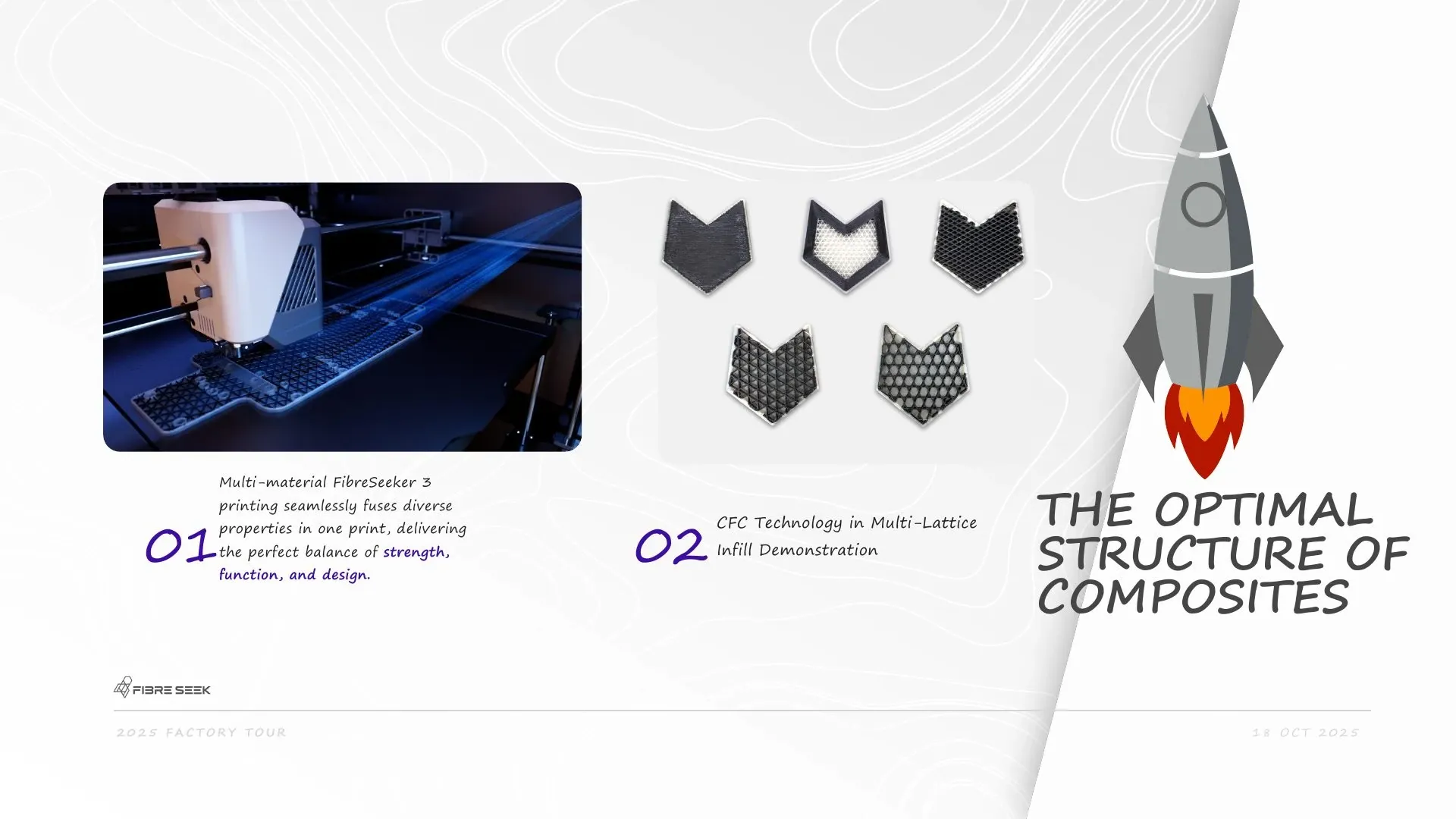

FibreSeeker 3 multi-material printing and continuous fibre lattice infill structures
FibreSeeker 3 composite lattice infill structures.

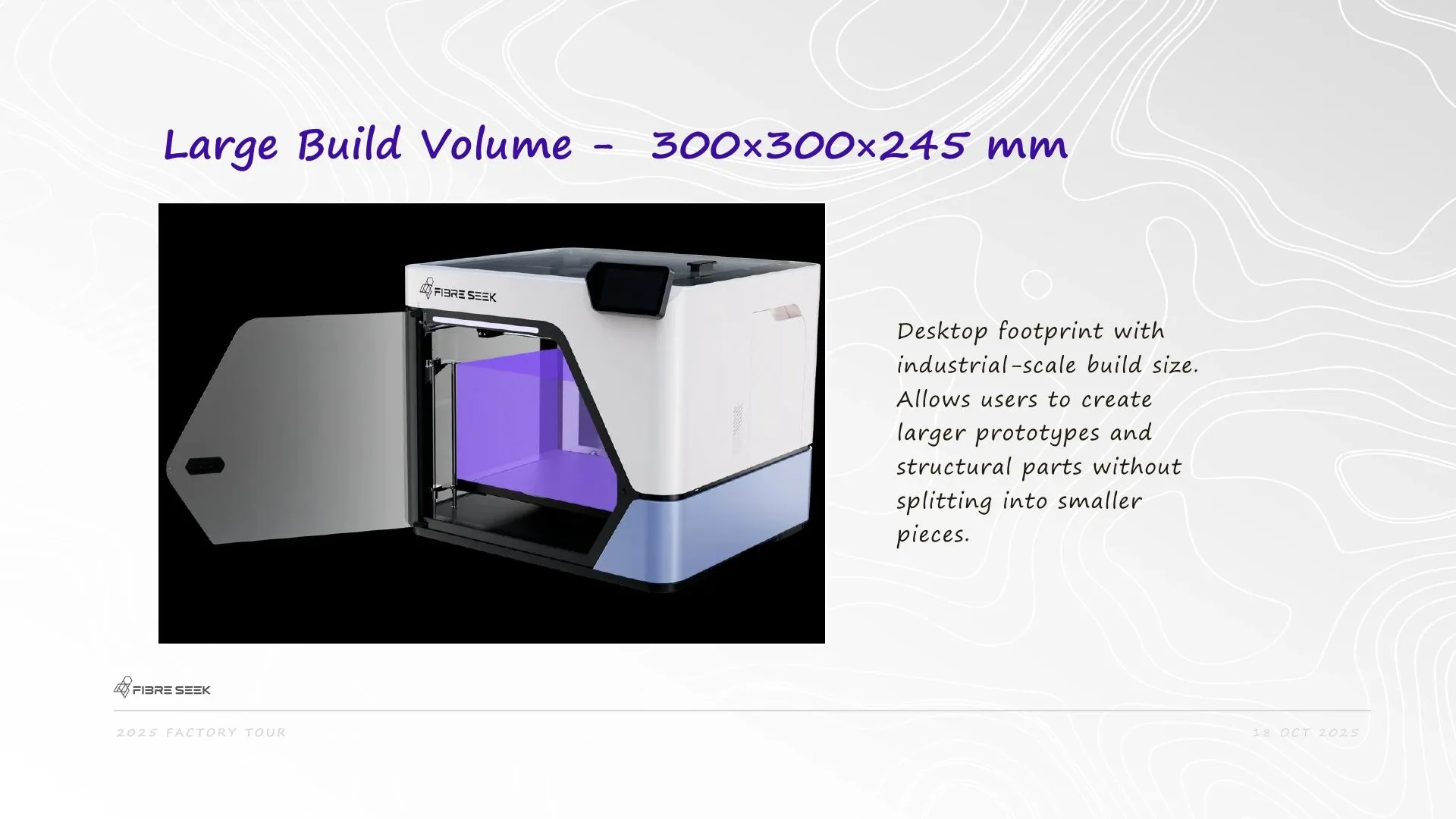

FibreSeeker 3 printer with a 300 × 300 × 245 mm large build volume
FibreSeeker 3 large-format build volume.

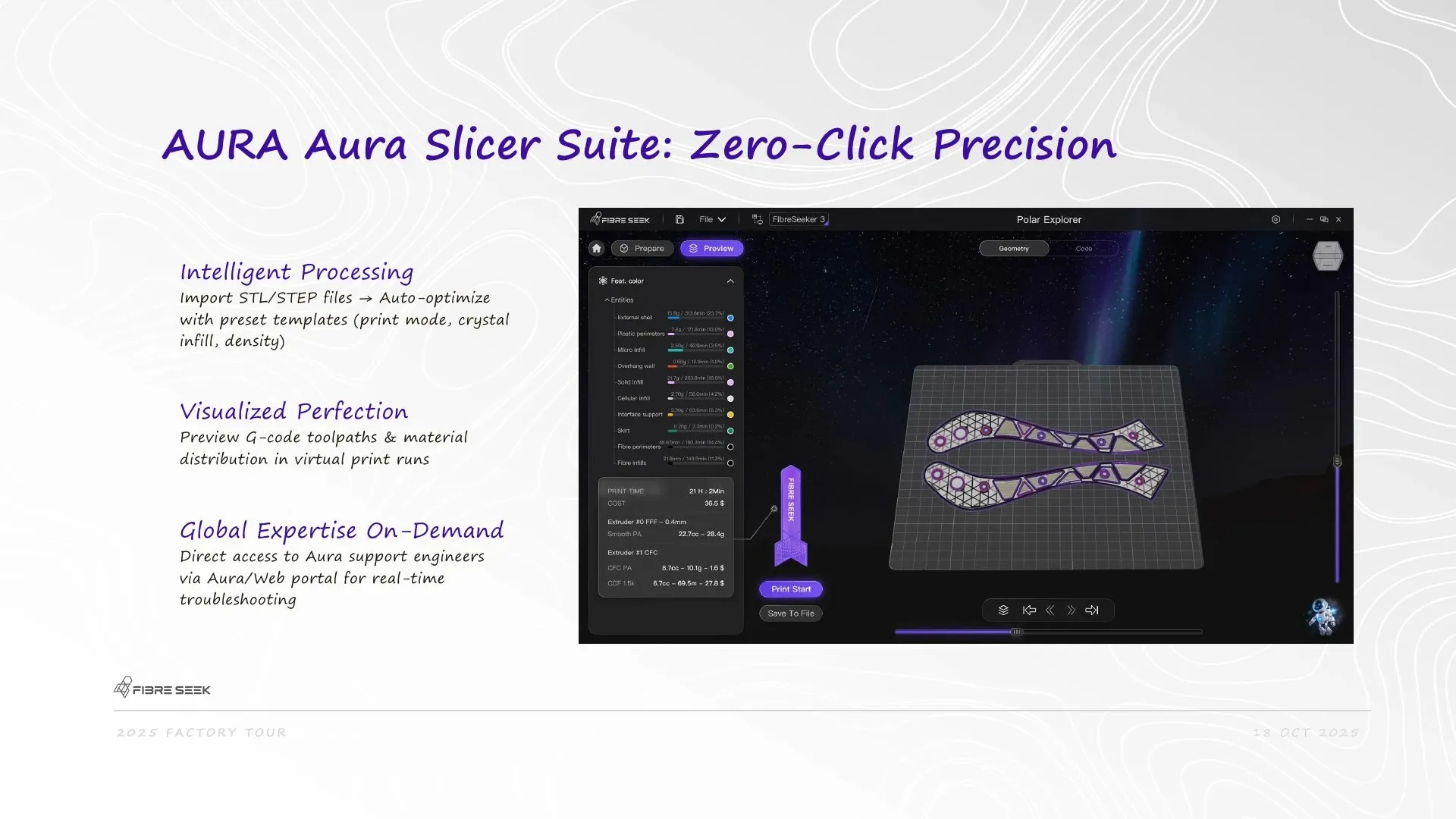

Aura Slicer interface showing FibreSeeker 3 continuous fibre toolpaths and material distribution
Aura Slicer software for FibreSeeker 3.

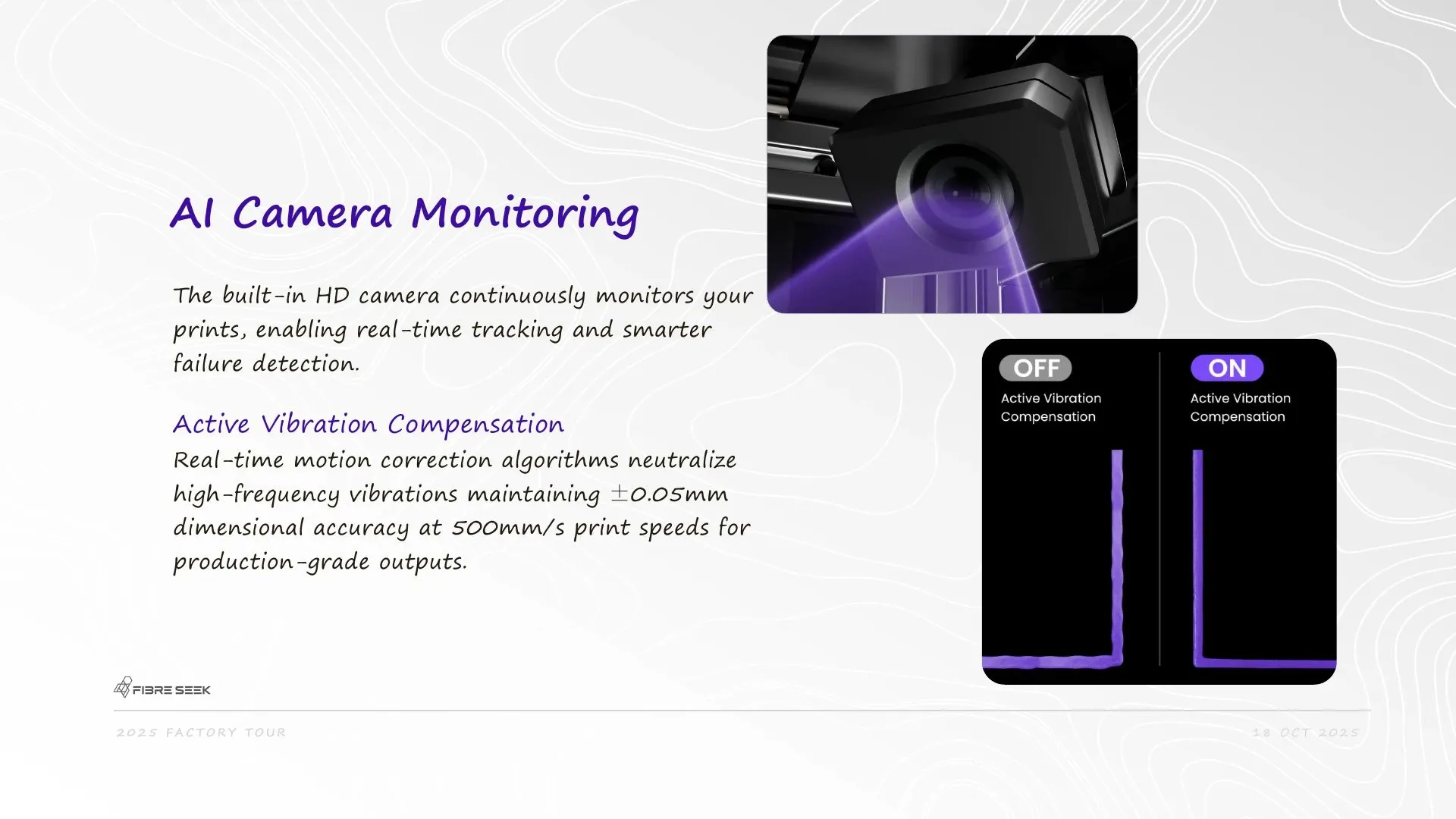

FibreSeeker 3 AI camera monitoring and active vibration compensation system
AI monitoring and vibration compensation on FibreSeeker 3.

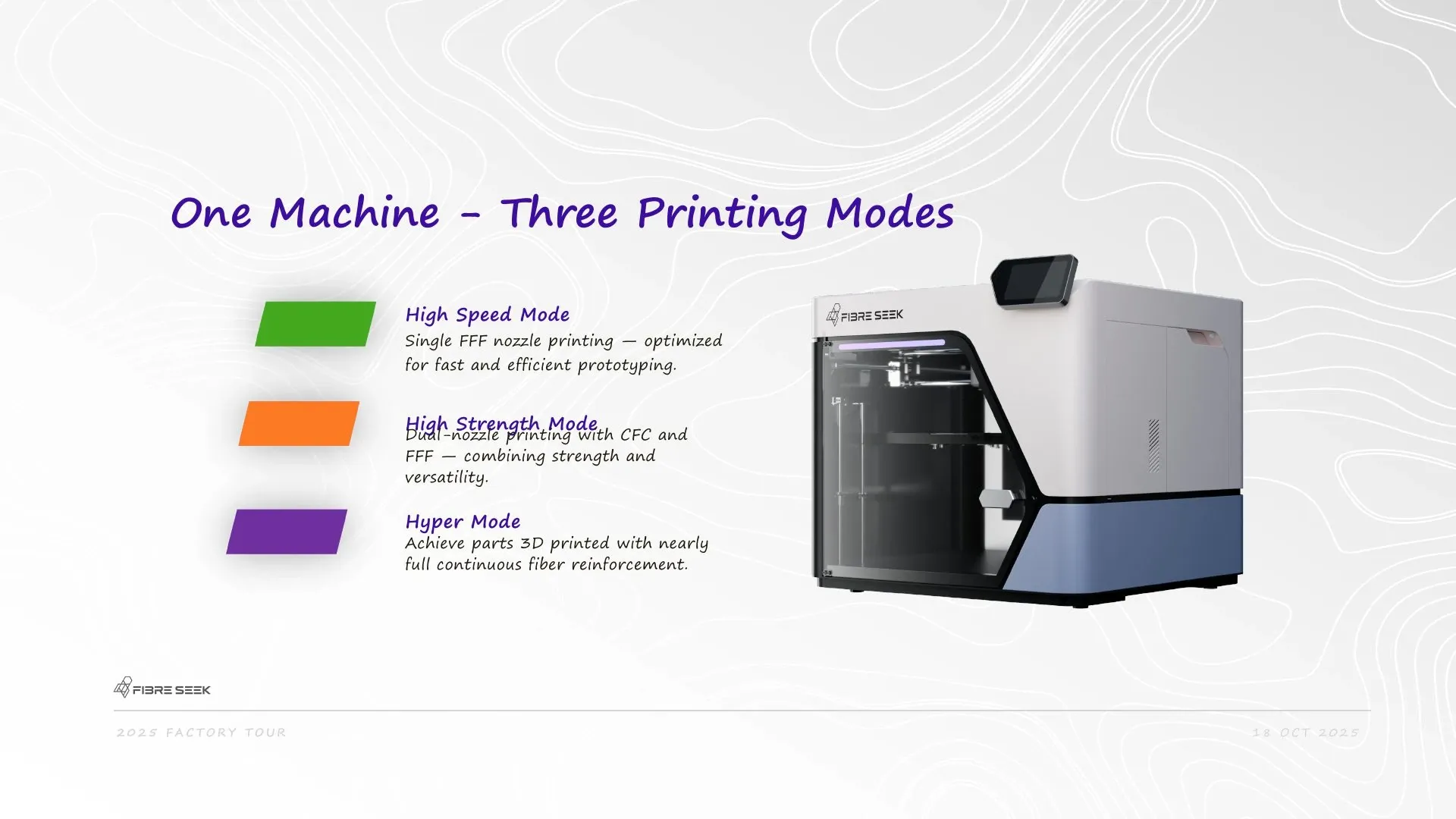

FibreSeeker 3 high-speed, high-strength and hyper-strength continuous fibre printing modes
Three versatile printing modes on FibreSeeker 3.

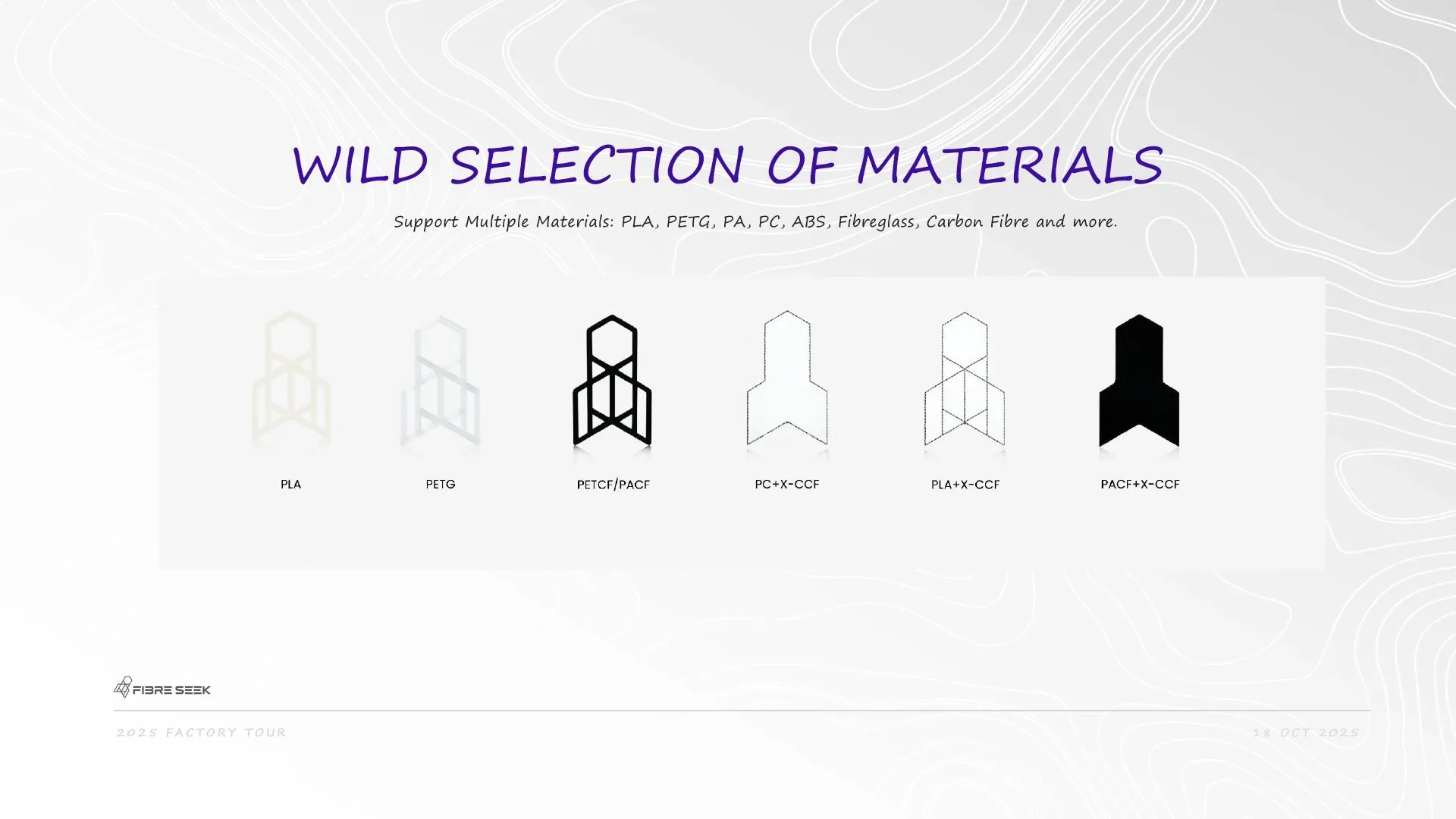

FibreSeeker 3 supported plastic, engineering and continuous fibre printing materials
Supported materials for FibreSeeker 3.

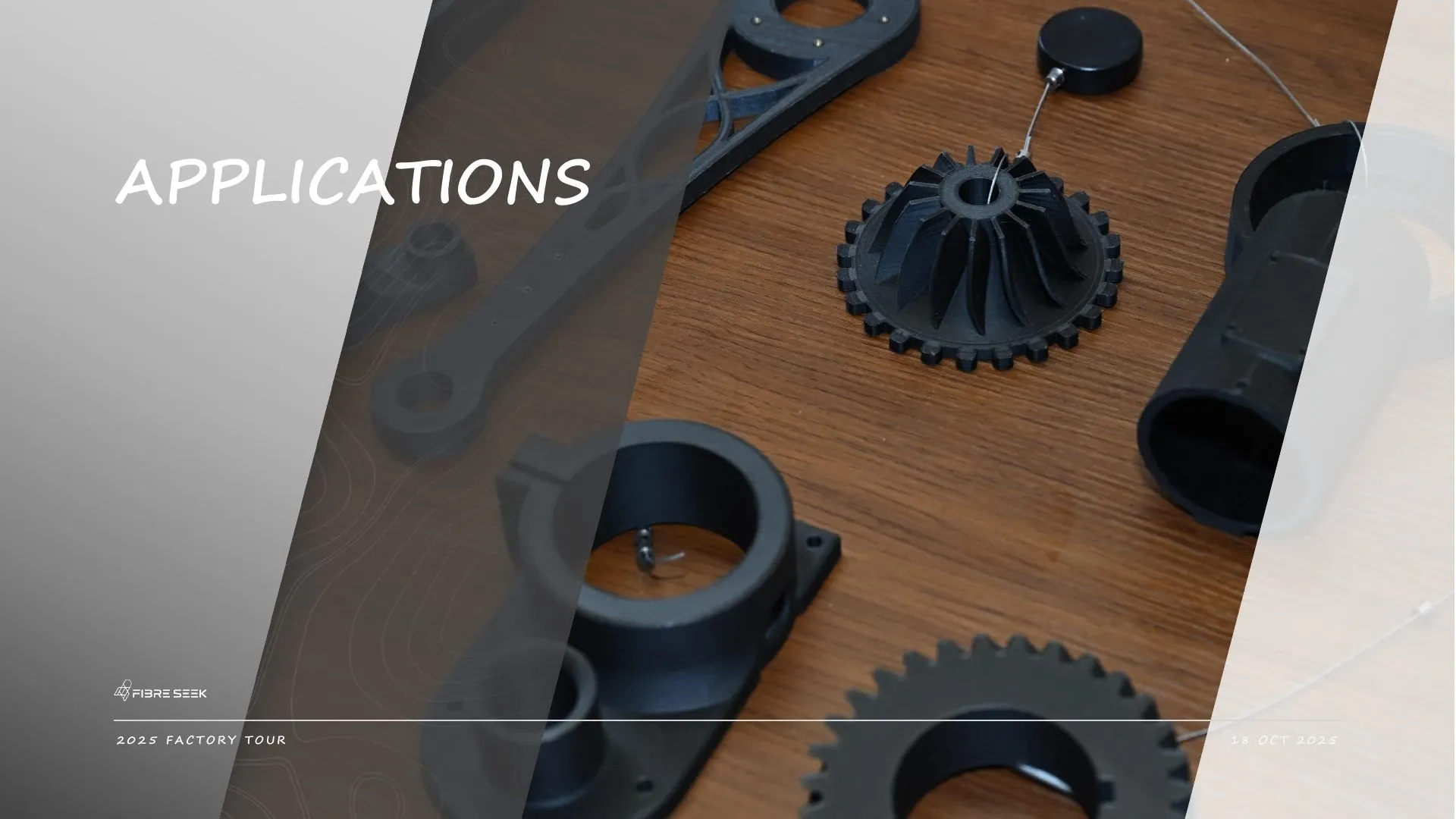

FibreSeeker 3 continuous fibre 3D printed gears, tools and structural components
Continuous fibre applications for FibreSeeker 3.

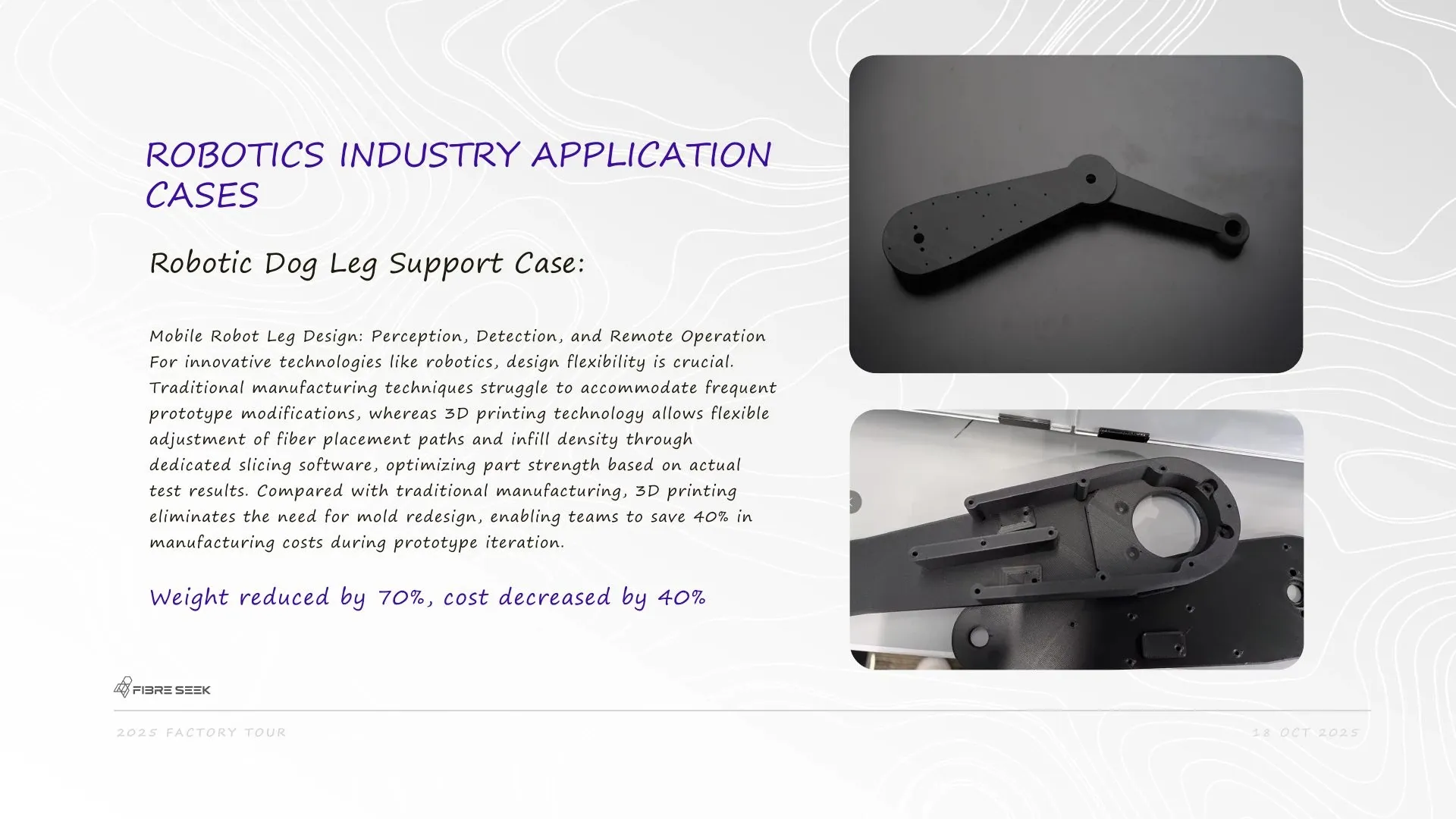

Robotic dog leg support made with FibreSeeker 3 continuous carbon fibre printing
FibreSeeker 3 robotic dog leg support application.

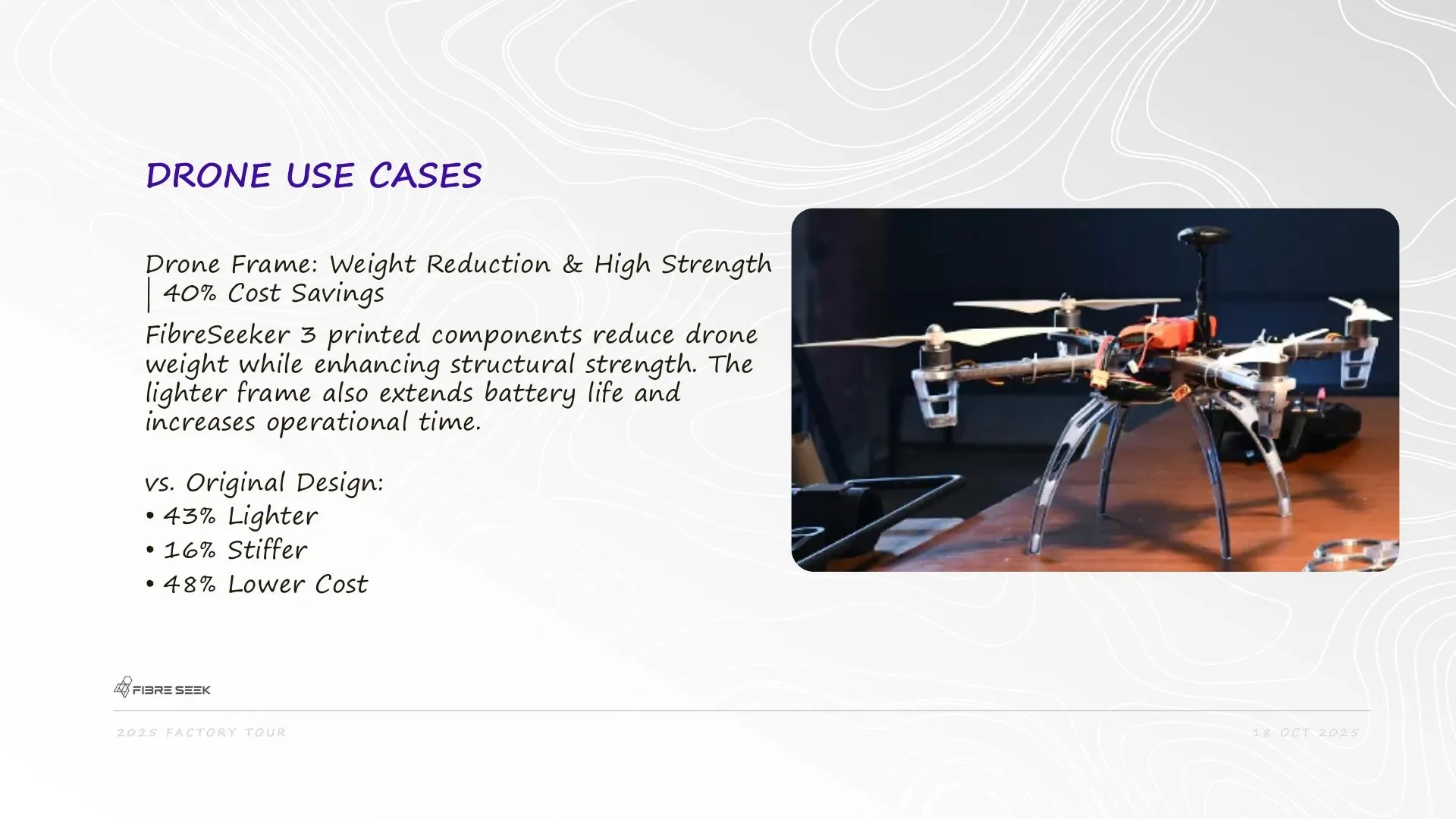

Lightweight drone frame reinforced with FibreSeeker 3 continuous carbon fibre printing
FibreSeeker 3 continuous carbon fibre drone application.

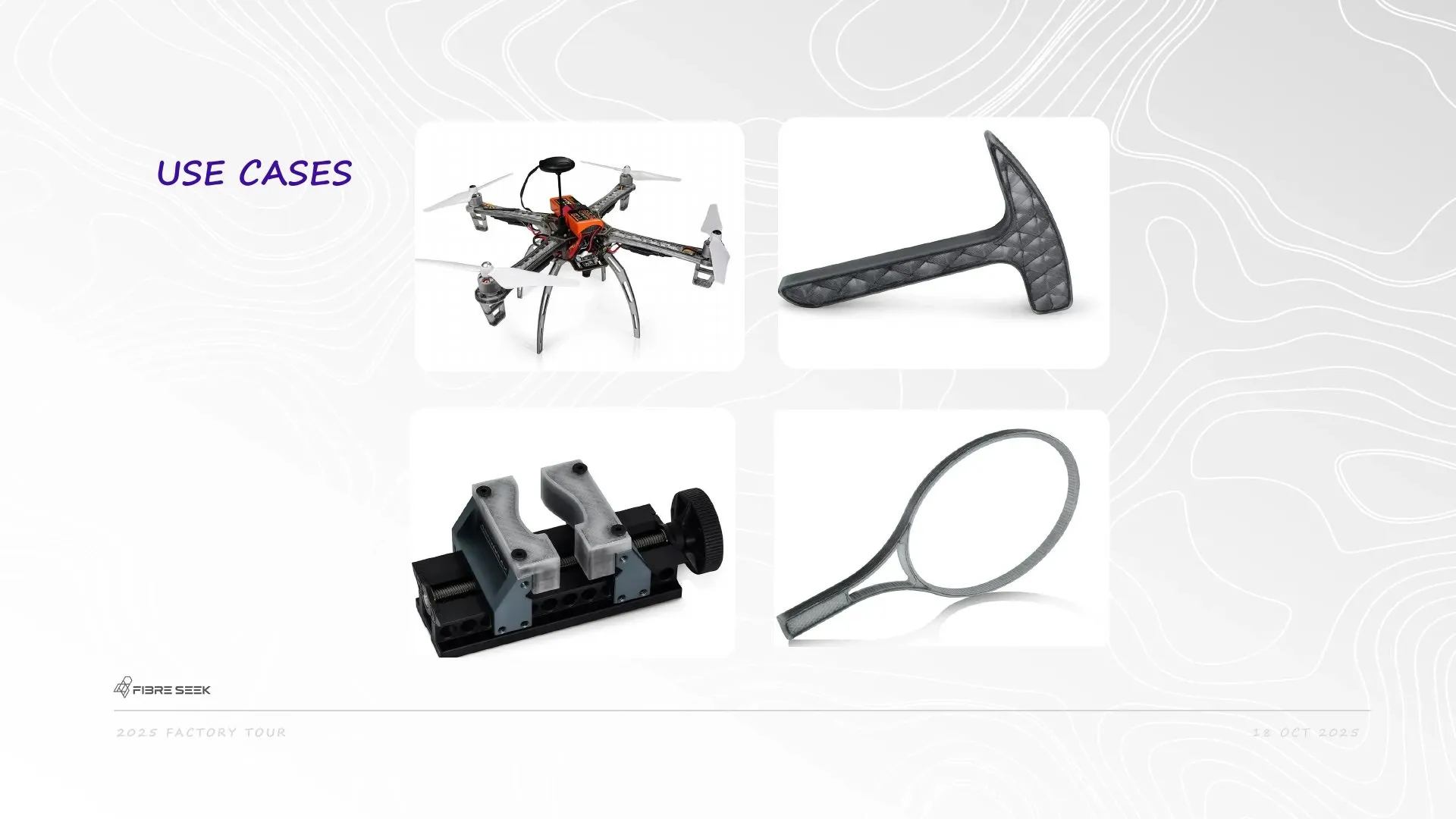

FibreSeeker 3 continuous fibre applications including drone, tool, fixture and racket parts
Continuous fibre use cases produced with FibreSeeker 3.
