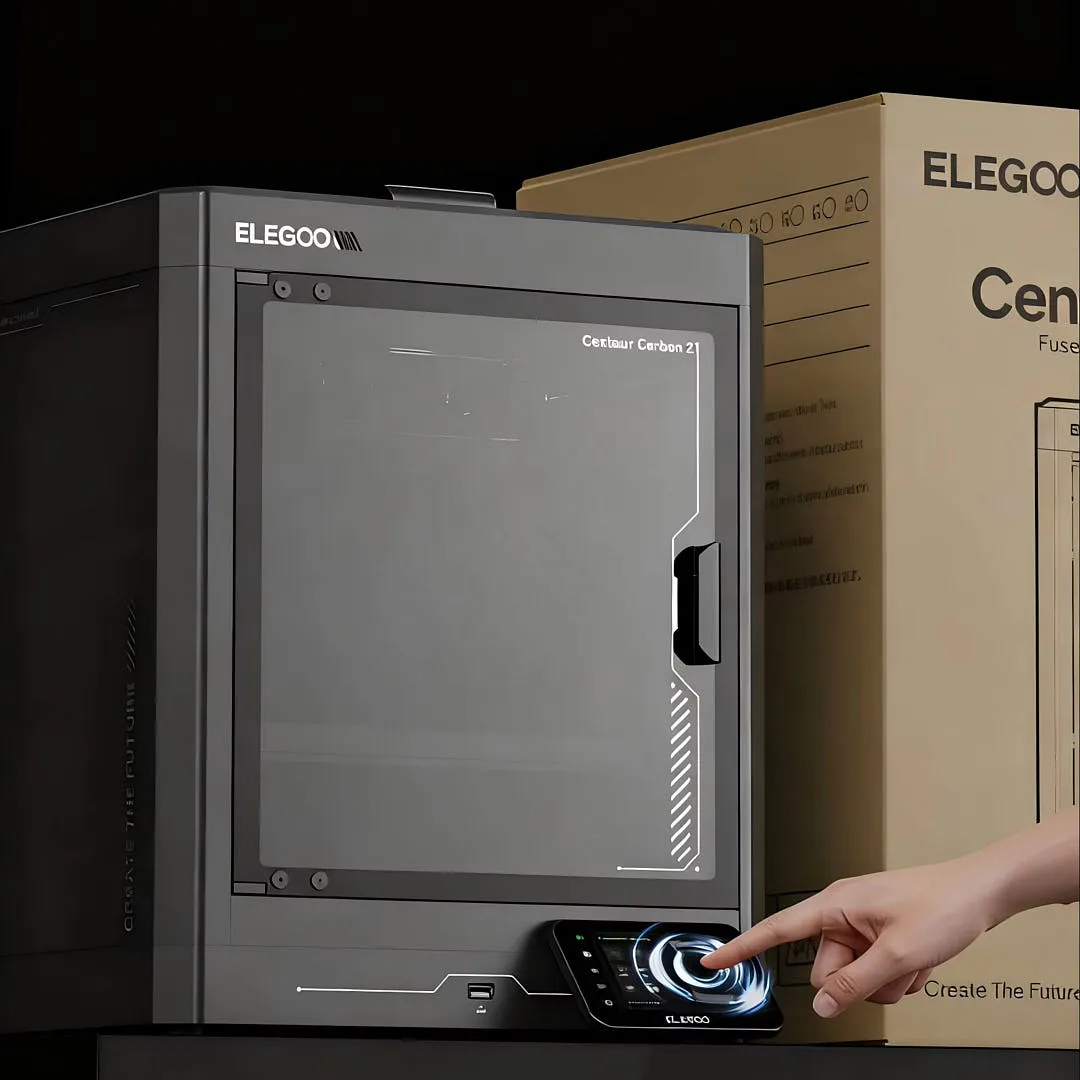

- Print Right Out of the Box
- Full-Auto Calibration
- CoreXY with 500 mm/s Velocity
- 20,000 mm/s² Acceleration
- Unleash Creativity with Every Filament
- Chamber Camera Acts as Your Eyes
- Build Volume 256 × 256 × 256 mm
Looking for spare parts for this product?
Frequently bought together with Elegoo CentaurI Carbon 2 Canvas (CC2)
Specihcations
Key Printing Performance
| BUILD VOLUME 256 x256 x256 mm | PRINTING SPEED s500mm/s(Recommended 250 mm/s) | DEFAULT ACCELERATION 10,000 mm/s2 |
| MAXIMUM ACCELERATION 20,000 mm/s2 | PRINTING ACCURACY ±0.1mm | LAYER THICKNESS 0.1-0.4mm(Recommended 0.2 mm) |
| SUPPORTED FILAMENT Carbon/Glass Fiber ReinforcedFilaments/PLA/PETG/ABS/ASA/TPU/PET/PC/PA | FILAMENT DIAMETER 1.75 mm |
Hardware Specifications
|
BUILD VOLUME 260 × 260 mm |
TECHNOLOGY Fused Deposition Modeling (FDM) |
NOZZLE DIAMETER 0.4 mm |
|
EXTRUDER Dual-Gear Direct Extruder (1 Fan) |
BUILD PLATE Dual-Sided Spring Steel Sheet (Textured PEI + PLA-Specific Surface) |
BED LEVELING 121-Point Auto-Leveling |
|
HEAT BREAK Titanium Alloy |
Z-AXIS STRUCTURE 3 Lead Screws + 3 Linear Guide Rods |
MOTOR DRIVE Silent Drive (All Axes) |
|
MOTHERBOARD Self-Developed Mainboard |
LED LIGHTING Yes |
Thermal Specifications
|
MAX. NOZZLE TEMPERATURE 320 °C |
MAX. HEATED BED TEMPERATURE 110 °C (Ambient Temperature 25 °C) |
AMBIENT TEMPERATURE 5–40 °C |
Sensors
|
CAMERA Yes (Timelapse Supported) |
FILAMENT RUN OUT SENSOR Yes |
POWER LOSS RECOVERY Yes |
|
FULL-AUTO CALIBRATION Yes |
AUTO FILAMENT UNLOADING Yes |
Operation & Connectivity
|
SYSTEM ELEGOO OS |
TOUCH SCREEN 4.3-inch Color Capacitive Touch Screen |
LANGUAGE English, French, German, Russian, Italian, Spanish, Japanese, Chinese |
|
CONNECTIVITY USB, Wi-Fi |
SLICING SOFTWARE ELEGOO Slicer (Recommended), Orca, Cura | |
|
INPUT FORMAT STL, OBJ, 3MF, STP |
OUTPUT FORMAT Gcode |
Physical & Electrical Specifications
|
MAXIMUM SIZE FOR MACHINE ACTIVITY 485 × 560 × 510 mm |
MACHINE SIZE 398 × 404 × 490 mm |
PACKAGE SIZE 475 × 480 × 560 mm |
|
NET WEIGHT 17.5 kg |
GROSS WEIGHT 21 kg |
OPERATING SOUND ≤55 dB |
|
POWER INPUT 100–240 VAC, 50/60 Hz |
POWER OUTPUT 24 V |
RATED POWER 1100 W @ 220 V; 350 W @ 110 V |
Description
Redefining Material Versatility

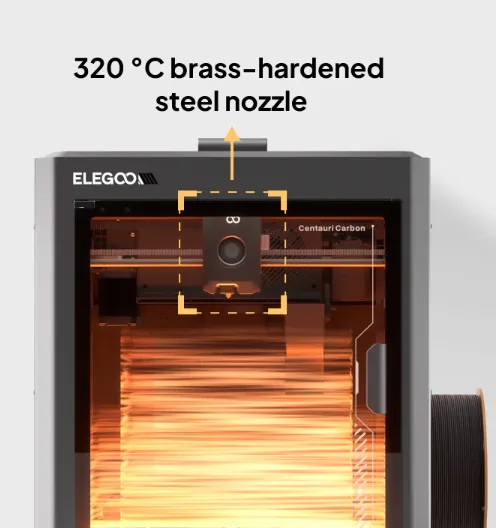

Designed for advanced engineering materials, Centauri Carbon features a 320 °C brass-hardened steel nozzle, powerful cooling, and a fully enclosed chamber. It excels at printing carbon fiber reinforced filaments, enabling the production of strong, lightweight, and heat-resistant parts. This makes it an ideal solution for demanding applications such as aerospace, automotive components, and high-performance sports equipment.
Built for High-Speed Performance
Centauri Carbon pushes the limits of speed with its advanced CoreXY motion system, supporting print speeds of up to 500 mm/s and acceleration reaching 20,000 mm/s². With a high flow rate of 32 mm³/s and a powerful heated bed that warms up rapidly, it allows you to start printing faster and complete large, complex models in significantly less time.
Exceptionally Smooth Print Quality
Enjoy flawless first layers and finely detailed surfaces with Centauri Carbon. Automatic vibration compensation and pressure advance work together to eliminate ringing and ghosting, ensuring ultra-smooth results even at high print speeds. The result is professional-quality prints without compromising efficiency.

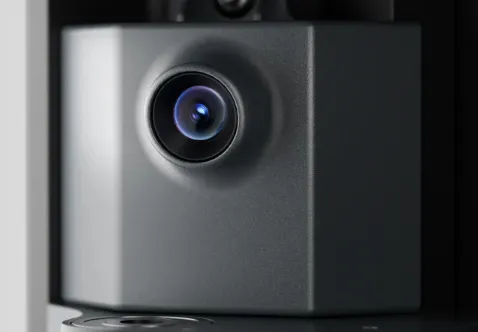

Chamber Camera for Total Control
The built-in chamber camera provides real-time monitoring, allowing quick adjustments during printing to reduce waste and improve reliability. Dual integrated LED light strips deliver clear visibility at all times, while the time-lapse function makes it easy to capture and share your entire printing process.
Upgraded Dual-Sided Flexible Build Plate
The upgraded dual-sided flexible plate features a newly developed PLA-specific surface that delivers excellent adhesion with minimal warping. It ensures reliable PLA printing even at lower heatbed temperatures, while the flexible design makes part removal quick, easy, and damage-free.
Integrated Die-Cast Aluminum Design
Centauri Carbon features a premium integrated die-cast aluminum construction designed for maximum rigidity and long-term reliability. This solid, one-piece structure

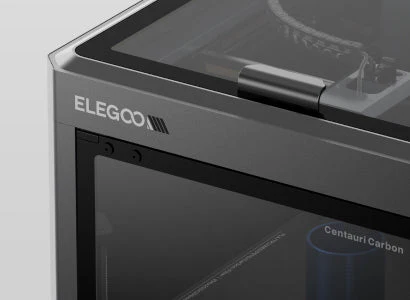

Transparent Glass Door
Semi-Automatic Belt Tensioner

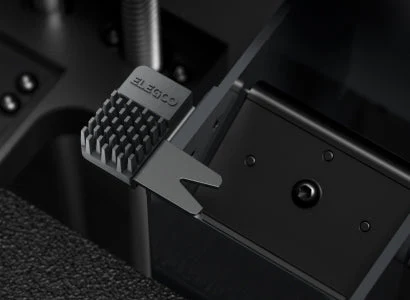

Heatbed Nozzle Wiper & Filament Waste Bin

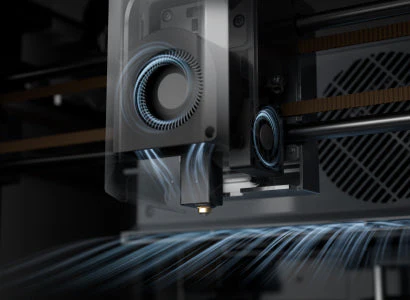

Advanced Cooling & Built-in Air Filter

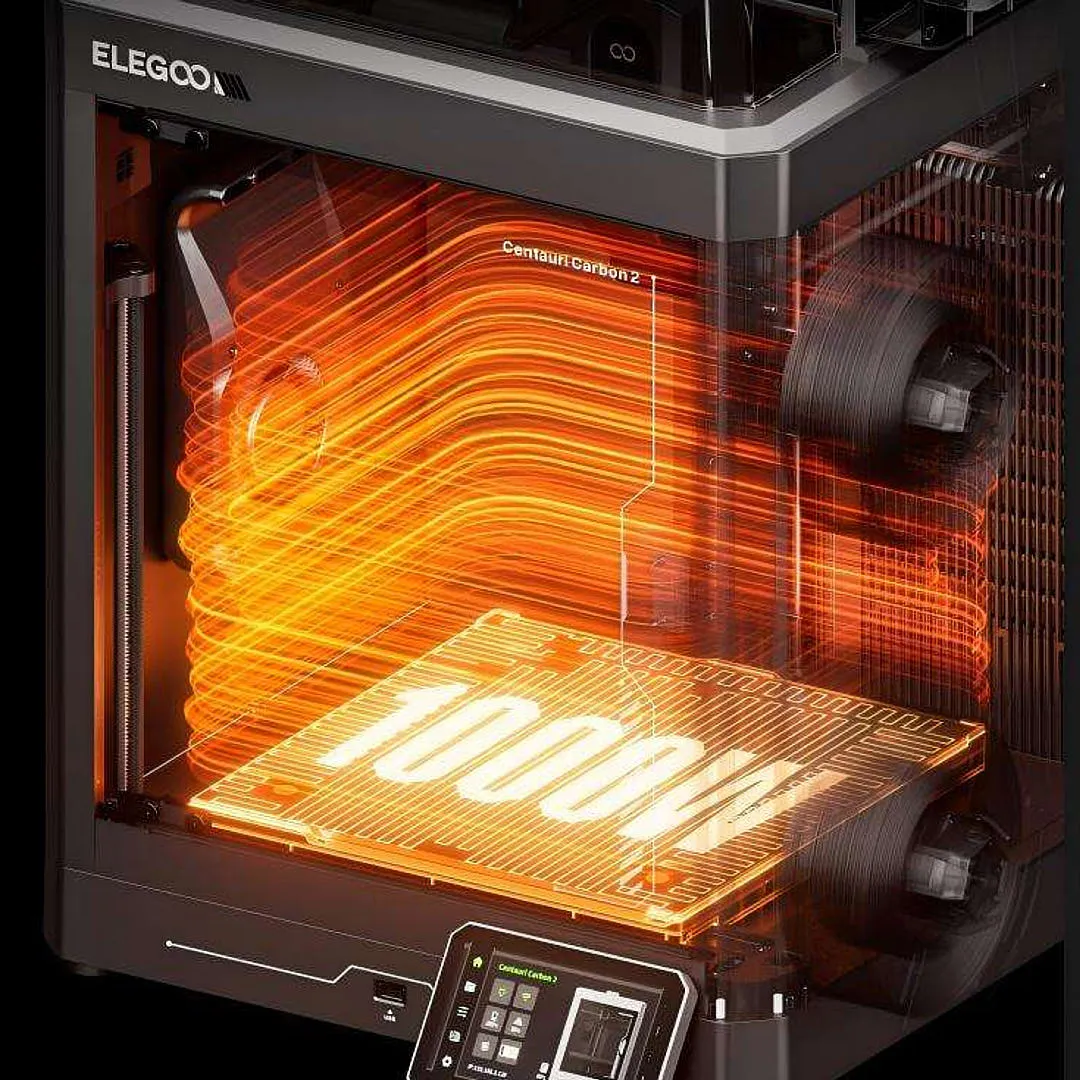

Powerful and Speedy System

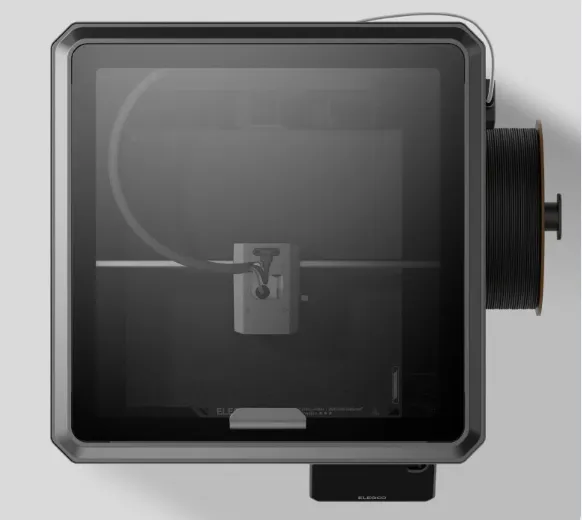

Right-Side Filament Holder Design
CoreXY Motion System with 500 mm/s Velocity
The upgraded dual-sided flexible plate features a newly developed PLA-specific surface that delivers excellent adhesion with minimal warping. It ensures reliable PLA printing even at lower heatbed temperatures, while the flexible design makes part removal quick, easy, and damage-free.

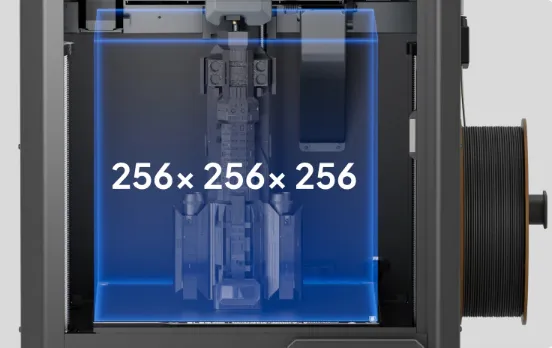

256 × 256 × 256 mm Build Volume
Unmatched Versatility for Demanding Filaments
Built-in Chamber Camera
More information
1. Customers are required to print the filament waste bin themselves as it is not included in the packaging. The model for printing will be available on the provided USB drive or within the machine.
Downloads
Product videos

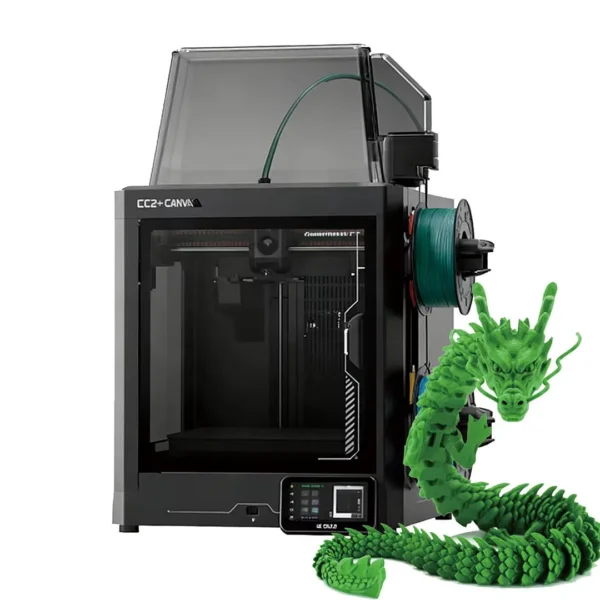

Elegoo CentaurI Carbon 2 Canvas (CC2)
