Bambu Smooth PEI Flexible 3D Printer Magnetic Build Plate For A1 Mini

0 customer reviews

buy now

  • High Z-axis precision printing.

  • Smooth and matte surface finish

  • Compatible with various filaments, especially for PLA

Looking for other products of VoxelFuse3D?

Frequently bought together with Bambu Build Plate

Top-down view of the FAP008 Bambu smooth PEI build plate showing the green peel-off protective film marker in the top-right corner
Creality Hyper Series PLA White 1.75mm 1kg 3D printer filament on a recycled cardboard spool with a white 3D printed deer model.

Bambu Combo

Read more

Specification

Key Printing Performance

Product Specifications

Material
Smooth PEI Sheet + Magnetic Spring Steel Plate		 Surface Temperature Resistance
Up to 120℃		 Thickness
Smooth PEI Sheet – 0.125mm
Spring Steel Plate – 0.5mm / 0.4mm
Usable Print Size
180 × 180 mm		 Packaging Size
220 × 190 × 15 mm		 Packaging Weight
0.23 kg

Recommended Settings

 Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements.

Materials
PLA / PLA-CF / PLA-GF		 Heatbed Temperature
45~60℃		 Glue Stick Required?
No
Materials
PETG / PETG-CF		 Heatbed Temperature
60~80℃		 Glue Stick Required?
Glue Stick / Liquid Glue
Materials
ABS (not for A1 mini)		 Heatbed Temperature
90~100℃		 Glue Stick Required?
Glue Stick / Liquid Glue
Materials
ASA (not for A1 mini)		 Heatbed Temperature
90~100℃		 Glue Stick Required?
Glue Stick / Liquid Glue
Materials
TPU		 Heatbed Temperature
35~45℃		 Glue Stick Required?
Glue Stick / Liquid Glue
Materials
PVA		 Heatbed Temperature
45~60℃		 Glue Stick Required?
Glue Stick / Liquid Glue
Materials
PC / PC-CF (not for A1 mini)		 Heatbed Temperature
90~110℃		 Glue Stick Required?
Glue Stick
Materials
PA / PA-CF / PAHT-CF (not for A1 mini)		 Heatbed Temperature
90~110℃		 Glue Stick Required?
Glue Stick
Materials
PET-CF (not for A1 mini)		 Heatbed Temperature
80~100℃		 Glue Stick Required?
Glue Stick / Liquid Glue

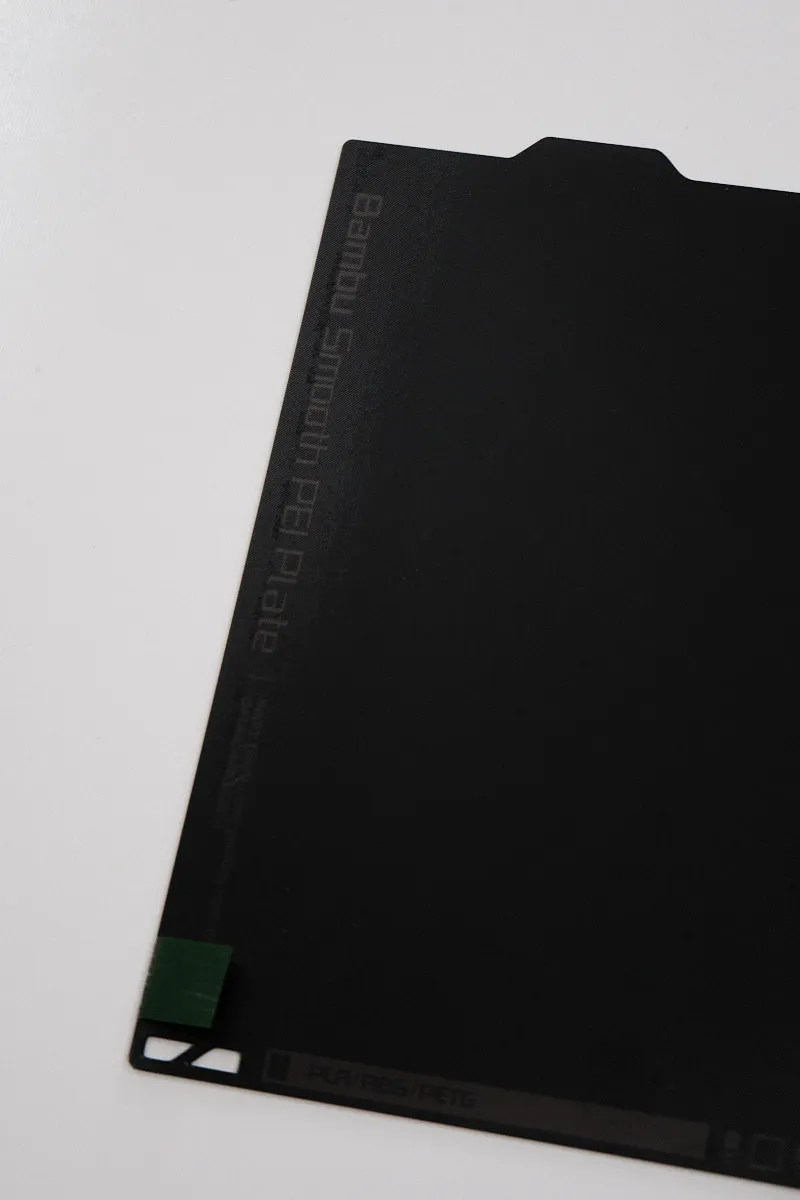

View of the left three-quarters of a Bambu smooth PEI build plate, with printed text “Bambu Smooth PEI Build Plate” near the left edge and material compatibility listed as “PLA / ABS / PETG” along the bottom edge
Printed build plate label and supported materials on the PEI surface

High Z-axis Precision Printing

The Bambu Smooth PEI Plate enhances Z-axis precision during 3D printing, ensuring greater accuracy and consistency in vertical dimensions. It is ideal for printing parts that require tight tolerances and precise alignment.



Smooth and Matte Surface Finish

A specially selected matte PEI sheet provides a smooth and matte texture to the bottom surface of printed objects, enhancing their visual appearance and professional finish.

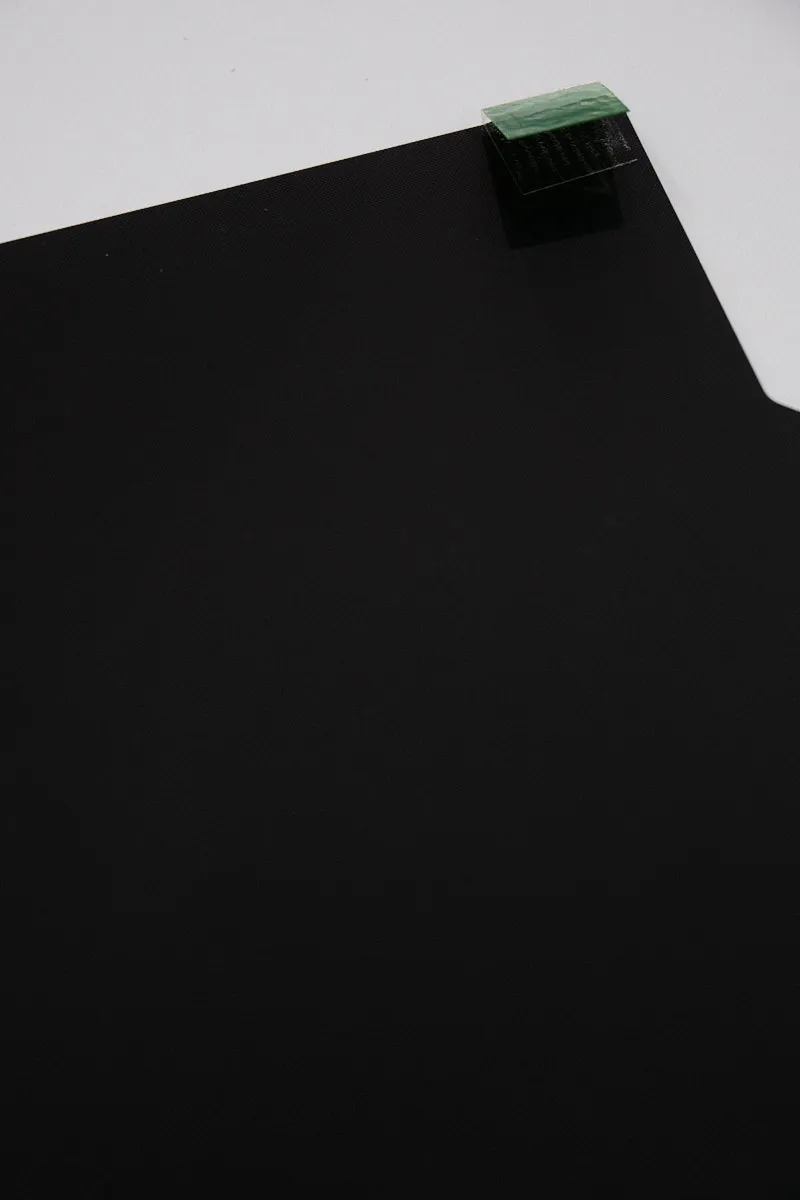

Close-up of the top-right corner of a Bambu smooth PEI build plate, highlighting the smooth surface texture
Top-right corner showing the smooth PEI surface of the build plate

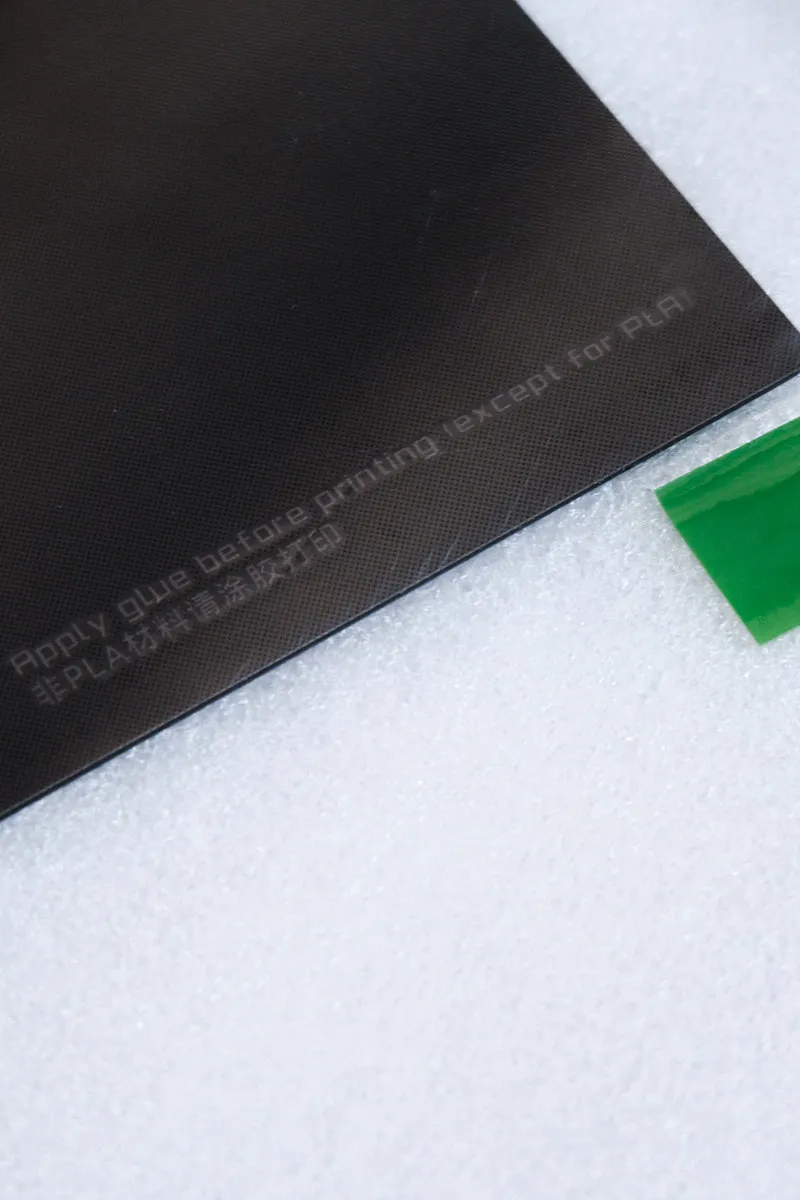

45-degree close-up of the lower-right corner of a Bambu smooth PEI build plate, shown on white foam packaging, with printed text “Apply glue before printing except for PLA” and a green marker indicating the peel-off protective film
Corner detail of the smooth PEI build plate with usage notice and protective film marker

Compatible with Various Filaments

The Smooth PEI Plate works with a wide range of filaments, including PLA, TPU, PETG, ABS, and Nylon. Note: Apply glue when printing with filaments other than PLA to prevent tearing of the PEI sheet.



Reliable Magnetic Adhesion to Prevent Warping

The 0.5mm-thick spring steel core improves magnetic adhesion, reducing warping and ensuring stable prints. This feature is particularly useful for larger models and filaments prone to warping such as ABS, PC, and Nylon. Note: The Smooth PEI sheet is permanently bonded and cannot be peeled off.



Structure of the FAP008 Bambu smooth magnetic flexible build plate for A1 mini, featuring a 0.5mm spring steel core with two 0.125mm PEI sheets on both sides
Build plate structure showing dual PEI sheets bonded to a spring steel core

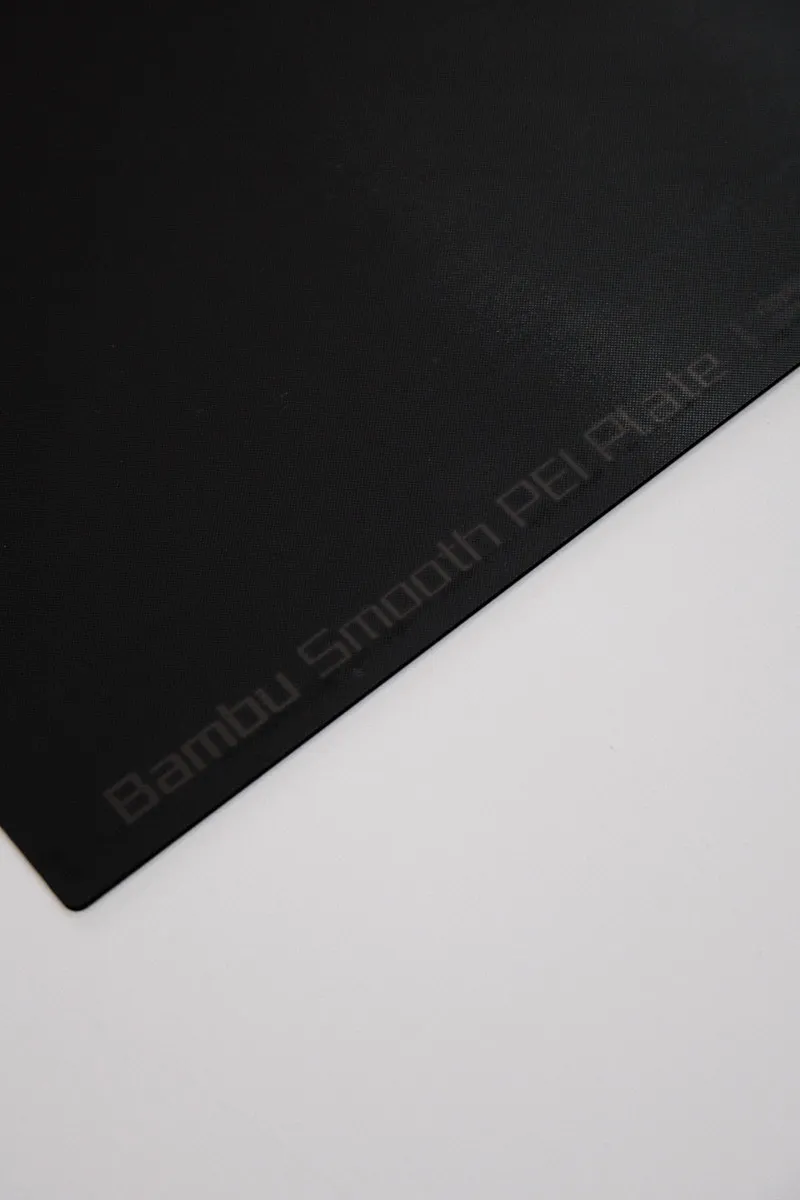

Close-up of the smooth PEI surface of the FAP008 Bambu build plate showing texture and finish
Detailed close-up of the Bambu smooth PEI surface

A1 Mini Compatible Size

The 180 × 180 mm Bambu Smooth PEI Plate is fully compatible with the A1 Mini printer, providing a perfect fit for precise printing on this model.

Individually packaged 3D printer hotend components arranged on a worktable, with labeled boxes facing upward
Individually packaged hotend components, neatly organized and labeled for identification

Wholesale & Private Label Services

We offer wholesale and private label (OEM) services for a wide range of 3D printing accessories, including build plates, hotends, and related components.

Composite image divided into four sections showing 3D printer build plates in the upper right area and hotend components in the lower sections
Build plates and hotend components shown in a structured layout for visual reference
Palletized rectangular cartons stacked at a 45-degree angle, each box clearly labeled for identification
Palletized cartons with clear labeling prepared for factory shipment
  • Top-down view of the FAP008 Bambu smooth PEI build plate showing the green peel-off protective film marker in the top-right corner

    Bambu Smooth PEI Flexible 3D Printer Magnetic Build Plate For A1 Mini

    180*180mm for Bambu A1 Mini 3D Printer

    Read more
  • Bambu H2C PEI Textured build plate flat-lay at true 1:1 scale

    Bambu Textured PEI Magnetic H2C 3D Printer Build Plate

    325*320 for Bambu Lab H2C

    Read more
  • Bambu Engineering 3D printer build plate for H2S and H2D, top-down view showing full plate surface

    Bambu Engineering 3D Printer Build Plate For H2S/H2D

    355x346mm for Bambu Lab H2D/H2S

    Read more
  • VoxelFuse textured cold magnetic flexible build plate for Bambu P1S front view

    VoxelFuse 3D Prtiner Cold Magnetic Flexbile Build Plate For P1P /P1S/X1/ X1-Carbon

    257*257mm For Bambu P1P/P1S/X1-Carbon

    Read more
    • Please note that with the Smooth PEI Plate on the A1 there is a higher risk the plate curling from the corners, or the printed models to detach from the plate. This is caused by the thicker Smooth PEI applied to the plate, which will increase the distance from the bed magnets and lower the magnetic attraction.
    • If bubbles appear on the bottom of the sheet, heating it on the heatbed at a temperature of no less than 80 degrees for several hours can be helpful in eliminating the bubbles.
    • Deposition of dust and grease on the build plate decrease adhesion. It is recommended to regularly clean the surface with detergent and water to to maintain best adhesion.
    • Do not clean the Smooth PEI with Acetone, as it will damage the PEI surface.
    • Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.
    • Carefully sanding the surface with fine-grit (600 was recommended) sandpaper can help restore adhesion.
    • The Smooth PEI plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
