- UL 94-2023 V-0 Flame Retardancy
- Engineering-Level Mechanical Properties

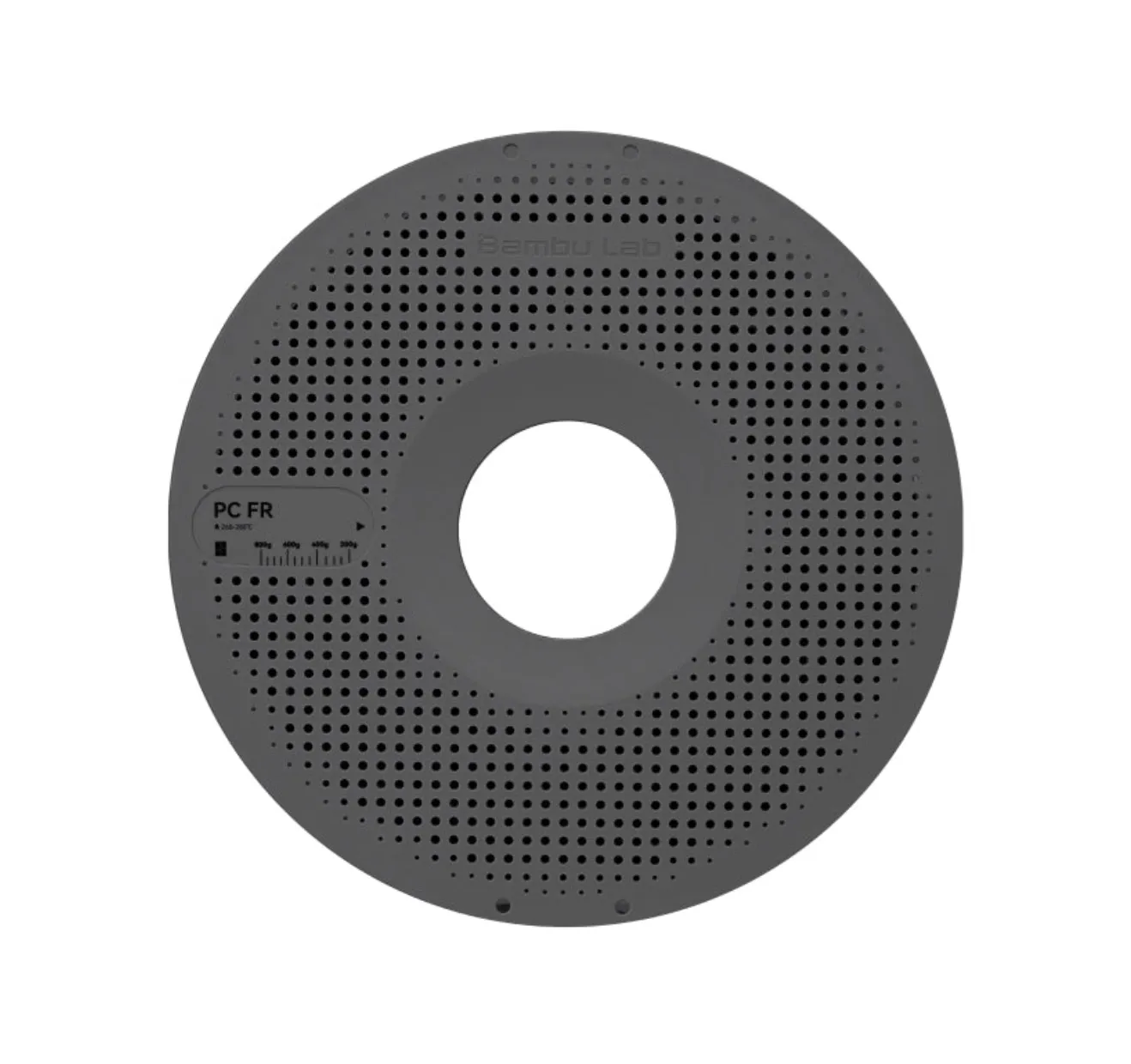

- Comes with High Temperature Reusable Spool
- Diameter: 1.75mm +/- 0.03mm
- AMS 2 Pro, AMS HT & AMS Compatible
- AMS lite NOT Compatible
- Dry Out Before Use
- Color Code: 63101
Looking for other products of Bambu Lab?
Frequently bought together with Bambu PC-FR White Filament
Description
Bambu PC FR – Flame Retardant Engineering Polycarbonate Filament
Bambu PC FR is a high-performance polycarbonate filament designed for demanding engineering applications that require excellent flame retardancy, impact resistance, and heat stability. With outstanding durability and structural strength, this material performs reliably in professional environments such as industrial manufacturing, electronics housings, and automotive components exposed to elevated temperatures.
Top-Tier Flame Retardancy
Bambu PC FR is tested to meet the UL 94-2023 V-0 flame-retardant standard, one of the highest levels of fire resistance for 3D printing materials. The filament is engineered to slow or prevent flame propagation and features excellent self-extinguishing behavior, making it suitable for safety-critical components in electronics, automotive systems, and industrial machinery.
UL 94 V-0 Flame Rating Explained
UL 94 is a plastics flammability standard developed by Underwriters Laboratories in the United States. A V-0 rating represents the highest classification in the UL 94 vertical burn test. It means that when the material is exposed to flame in a vertical position, combustion stops within 10 seconds after the flame source is removed. Dripping particles are allowed as long as they do not ignite surrounding materials.
Engineering-Grade Mechanical Performance
Bambu PC FR is an engineering-grade filament with strength and toughness comparable to advanced composite materials such as PAHT-CF. The material provides excellent stiffness, impact resistance, and structural stability, allowing printed parts to perform reliably under mechanical stress. These characteristics make it an ideal choice for structural components, protective housings, and industrial fixtures that require both strength and durability.
RFID for Intelligent Printing
All printing parameters are embedded in RFID, which can be read through our AMS (Automatic Material System).Load and print! No more tedious setting steps..
Wholesale & Private Label Services
We offer wholesale and private label (OEM) services for a wide range of 3D printing accessories, including build plates, hotends, and related components.
More Options
Product videos
Printing Tips
Drying Conditions：
Dry before use for higher printing quality. PC FR must be dried before use and kept moisture-free during the printing process. Store in a dry environment, such as an airtight storage container with a desiccant, after use. For more details, please refer to:Printing tips for Engineering materials on WIKI.
- In a blast drying oven: 80°C for 8 hours.
- On an X1 printer’s heatbed: 90°C to 100°C for 12 hours.
Safety Attention:
The nozzle temperature should be between 260-280°C, and the heat bed temperature should be between 90-110°C. Please ensure safety during printing.
Specification
Accessory Compatibility
| Property | Recommended | Not Recommended |
|---|---|---|
| Build Plate | Smooth PEI Plate, Textured PEI Plate | Cool Plate SuperTack |
| Hotend | All Size / Material | / |
| Glue | Bambu Liquid Glue, Glue Stick | / |
| AMS & AMS lite | AMS | AMS lite |
Recommended Printing Settings
| Property | Value |
|---|---|
| Drying Settings (Blast Drying Oven) | 80 °C, 8 h |
| Printing and Keeping Container’s Humidity | < 20% RH (Sealed, with Desiccant) |
| Nozzle Temperature | 260 – 280 °C |
| Bed Temperature (with PVP Glue) | 90 – 110 °C |
| Printing Speed | < 300 mm/s |
Physical & Mechanical Properties
| Property | Value |
|---|---|
| Density | 1.18 g/cm³ |
| Vicat Softening Temperature | 114 °C |
| Heat Deflection Temperature | 113 °C |
| Melting Temperature | 225 °C |
| Melt Index | 26.4 ± 2.7 g/10 min |
| Tensile Strength | 60 ± 4 MPa |
| Breaking Elongation Rate | 2.4 ± 0.3 % |
| Bending Modulus | 1890 ± 70 MPa |
| Bending Strength | 90 ± 4 MPa |
| Impact Strength | 55 ± 2.1 kJ/m² |
Bambu Lab PC-FR White Filament 1.75mm 1kg with Spool
