- Color Code:46101
- Superior Outdoor Durability
- Optimized for Large Models
- Sleek Matte Finish
- Enhanced Stiffness for High Load-Bearing Applications
- Diameter: 1.75mm +/- 0.03mm
- AMS 2 Pro, AMS HT & AMS Compatibility
- AMS Lite NOT Compatible
- 0.2 mm Nozzle NOT Compatible
- Enclosure Printers Required
- Hardened Steel Nozzle Mandatory
- Dry Out Before Use
Looking for other products of Bambu Lab?
Frequently bought together with Bambu ASA CF Black Filament
Description
Bambu ASA-CF – Engineered for Harsh Outdoor Conditions
Bambu ASA-CF is designed for demanding outdoor environments. It retains the weather resistance and durability of ASA while incorporating carbon fiber reinforcement to increase stiffness and dimensional stability. This makes it an excellent material for large-scale models and functional components that require precision and durability under harsh conditions.
Superior Outdoor Durability

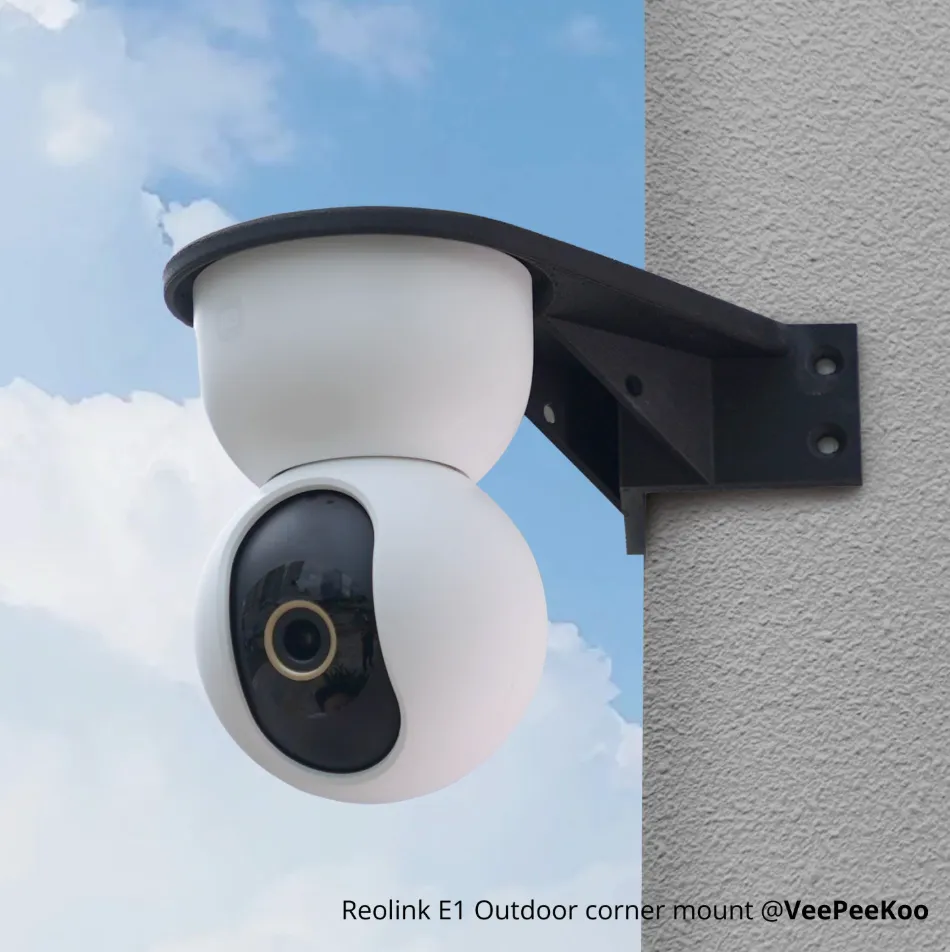

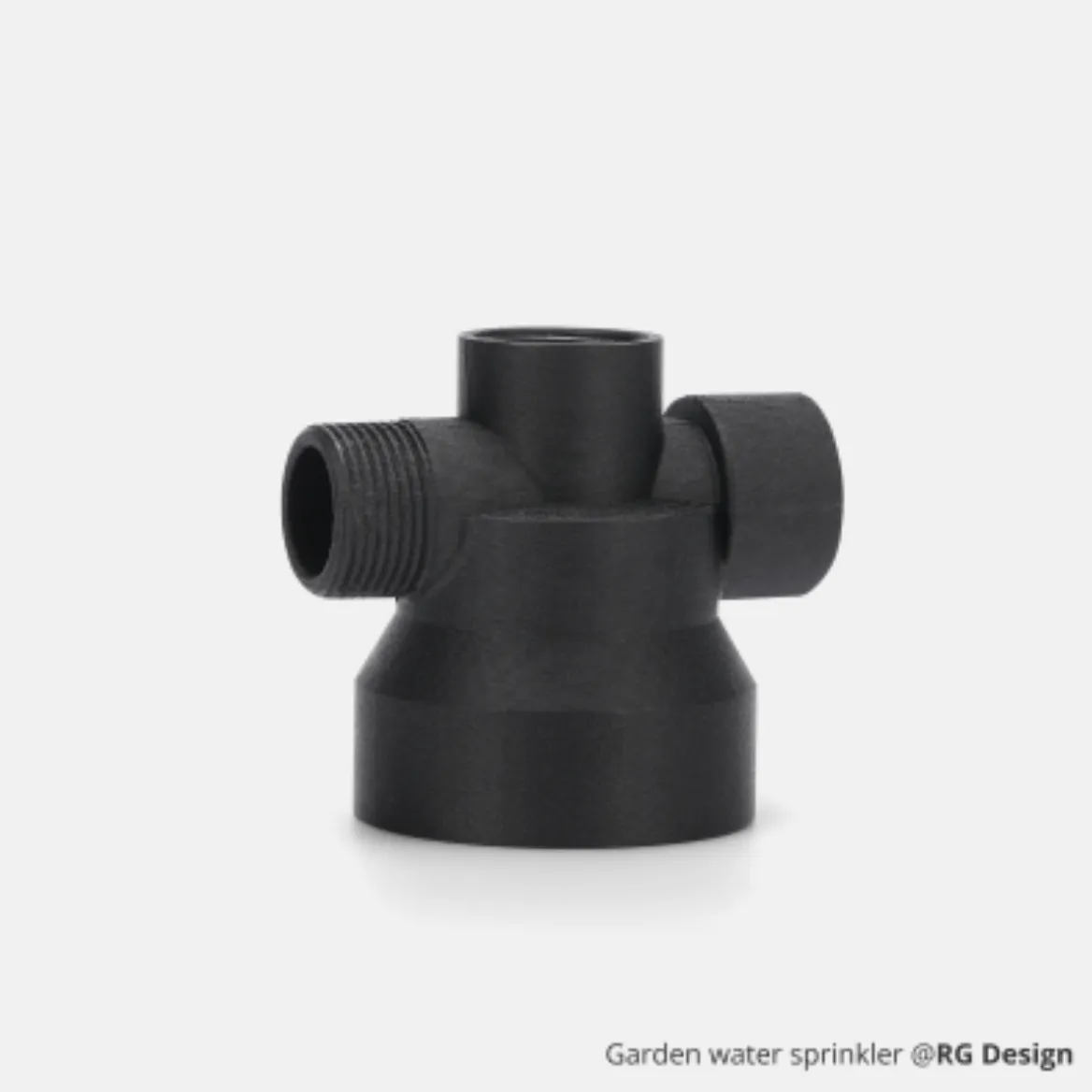

Bambu ASA-CF stands out as one of the best materials for outdoor applications. With excellent resistance to UV exposure, temperature changes, and harsh weather conditions, this filament is reinforced with carbon fiber to improve strength and longevity. It is ideal for producing durable garden tools, outdoor furniture components, and protective housings for electronic devices.
Optimized for Large Models
Carbon fiber reinforcement significantly reduces warping and improves dimensional stability during printing. Bambu ASA-CF is therefore highly suitable for large models or precision parts used in assemblies, ensuring consistent accuracy and reliable structural integrity even in larger prints.

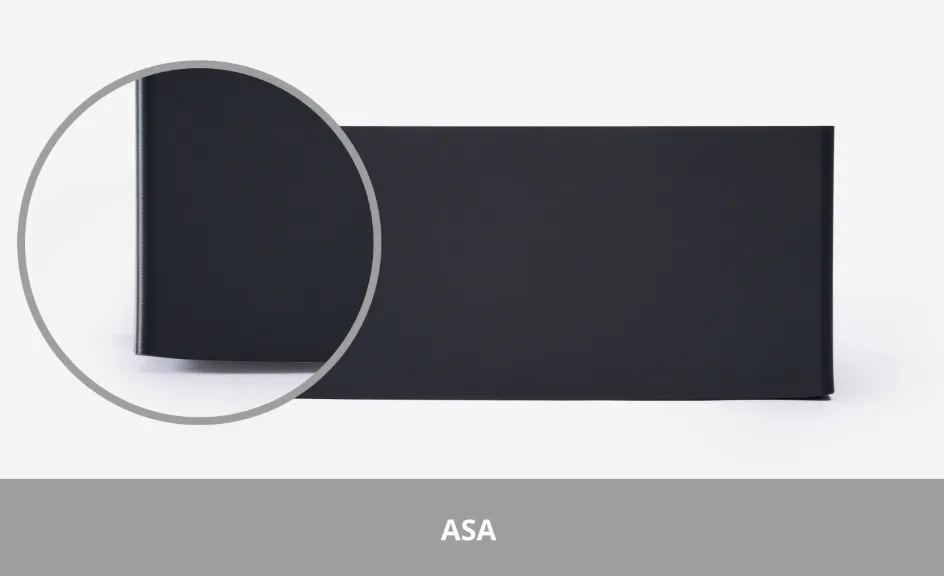

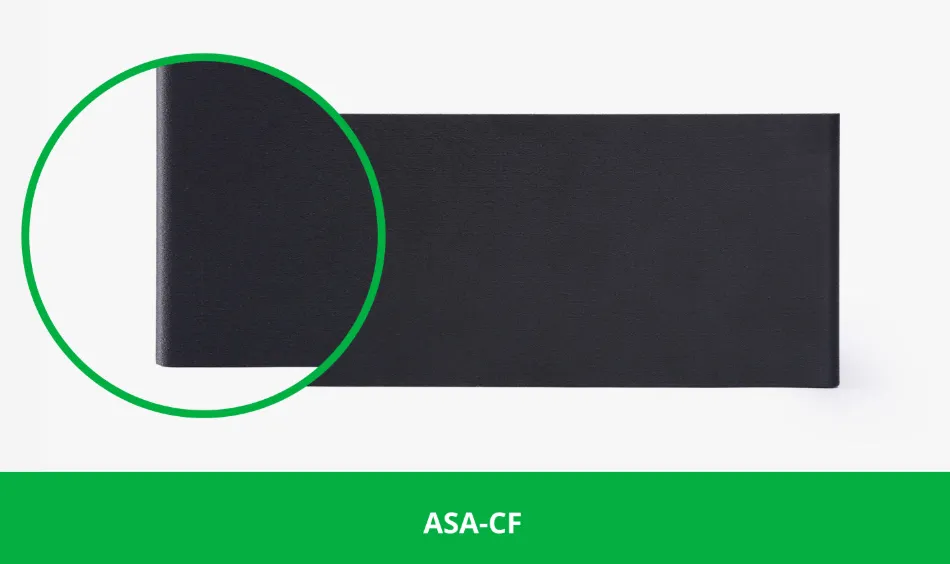

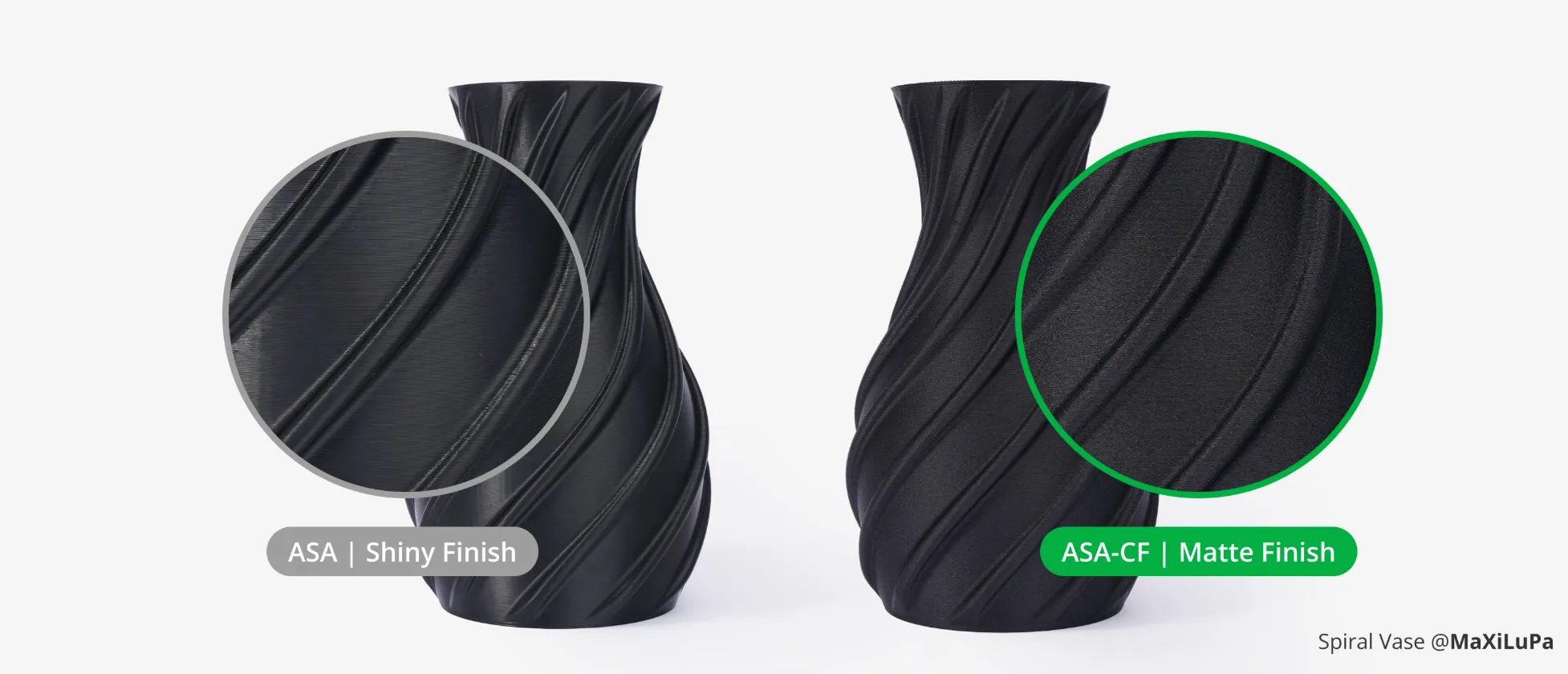

Sleek Matte Finish

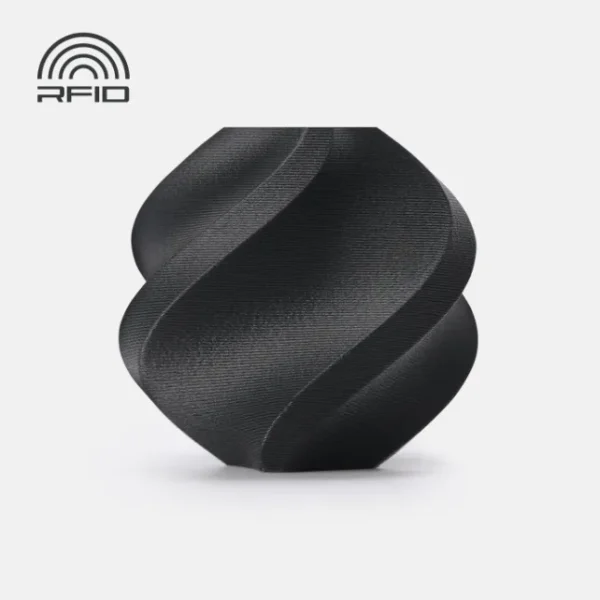

The carbon fiber reinforcement creates a refined matte surface with minimal visible layer lines. This sleek and natural appearance makes Bambu ASA-CF particularly suitable for visually appealing outdoor prints, decorative planters, and high-quality display models.
Enhanced Stiffness for High Load-Bearing Parts

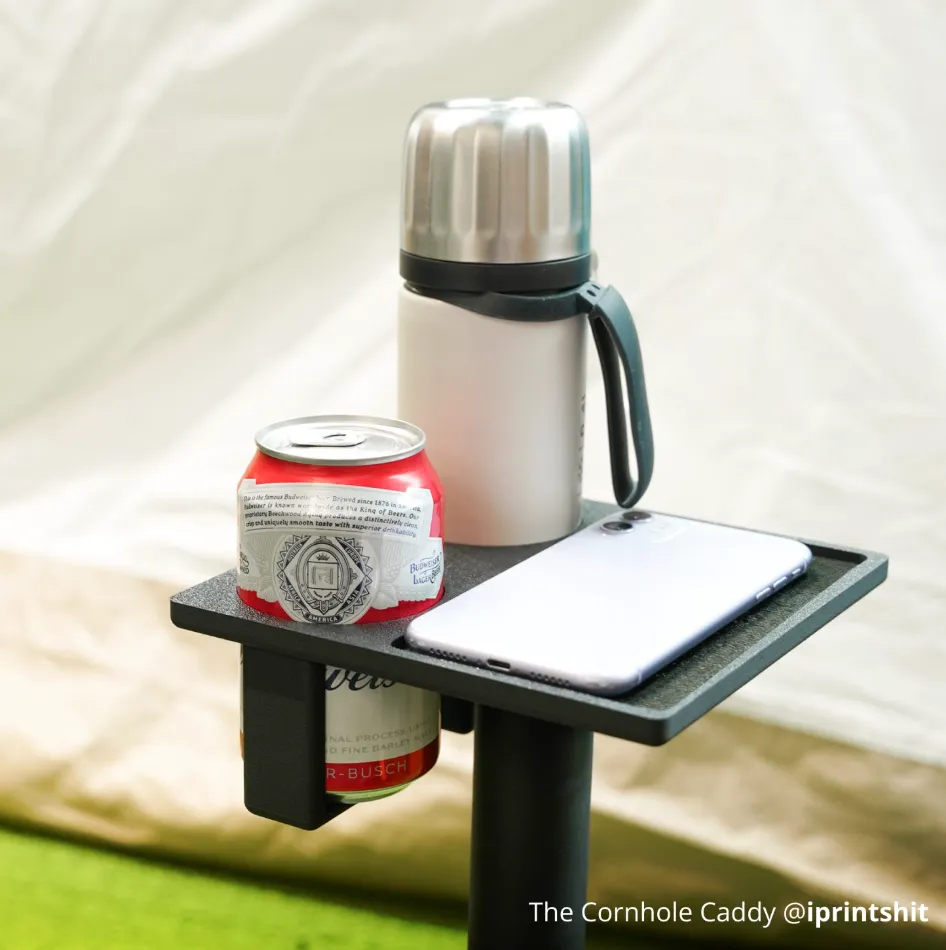

Bambu ASA-CF offers approximately 67% greater stiffness compared to standard ASA materials. This enhanced rigidity allows printed parts to withstand higher loads while maintaining structural stability. It is especially suitable for functional components such as camping accessories, plant stands, brackets, and other outdoor equipment that require strong load-bearing performance.
Physical & Mechanical Properties
| Property | ASA-CF | ASA |
|---|---|---|
| Filament Type | ASA-CF | ASA |
| Stiffness (Bending Modulus – XY) | 3740 MPa | 1920 MPa |
| Layer Adhesion (Impact Strength – Z) | 9.4 kJ/m² | 4.9 kJ/m² |
Wholesale & Private Label Services
We offer wholesale and private label (OEM) services for a wide range of 3D printing accessories, including build plates, hotends, and related components.
More Options
Product videos
Printing Tips
1. Dry before use for higher printing quality.
- In a blast drying oven: 80°C for 8 hours.
- On an X1 printer’s heatbed: 90°C to 100°C for 12 hours.
2. Carbon fiber makes ASA-CF more brittle compared to normal ASA. Please avoid excessive bending to prevent filament breakage.
3. Tips to increase dimensional stability:
- Use printers with an enclosure and apply glue on the build plate before printing.
- Set lower printing speed and higher heatbed temperature. For more details, please refer to: Common print quality problems and solutions on WIKI.
4. High heatbed temperatures and glue stick can cause strong adhesion between the print and the build plate. Please allow the print to cool down to room temperature naturally for easier removal and to avoid damage to the model. For more details, please refer to: Work After Printing Finished on WIKI.
5. Similar to ASA, odors may be released during printing. Make sure your printer is placed in a well-ventilated area and use enclosed printers.
Specification
Parameters Comparison
| Property | ASA-CF | ASA |
|---|---|---|
| Toughness (Impact Strength – XY) | 14.0 kJ/m² | 41.0 kJ/m² |
| Strength (Bending Strength – XY) | 72 MPa | 65 MPa |
| Stiffness (Bending Modulus – XY) | 3740 MPa | 1920 MPa |
| Layer Adhesion (Impact Strength – Z) | 9.4 kJ/m² | 4.9 kJ/m² |
| Heat Resistance (HDT, 0.45 MPa) | 110 ℃ | 100 ℃ |
| Saturated Water Absorption Rate (25 °C, 55% RH) | 0.33% | 0.45% |
Accessory Compatibility
| Category | Recommended | Not Recommended |
|---|---|---|
| Build Plate | Smooth PEI Plate, Textured PEI Plate | Cool Plate SuperTack |
| Hotend | Hotend with Hardened Steel Nozzle 0.4mm / 0.6mm (Recommended) / 0.8mm | Hotend with Stainless Steel Nozzle (All Sizes) |
| Glue | Bambu Glue Stick | Bambu Liquid Glue |
Recommended Printing Settings
| Property | Value |
|---|---|
| Drying Settings (Blast Drying Oven) | 80 °C, 8 h |
| Printing and Keeping Container’s Humidity | < 20% RH (Sealed, with Desiccant) |
| Nozzle Temperature | 250 – 280 °C |
| Bed Temperature (with Glue) | 80 – 100 °C |
| Printing Speed | < 250 mm/s |
Physical & Mechanical Properties
| Property | Value |
|---|---|
| Density | 1.02 g/cm³ |
| Vicat Softening Temperature | 108 °C |
| Heat Deflection Temperature | 110 °C |
| Melting Temperature | 210 °C |
| Melt Index | 1.74 ± 0.3 g/10 min |
| Tensile Strength | 34 ± 3 MPa |
| Breaking Elongation Rate | 9.6 ± 1.4 % |
| Bending Modulus | 3740 ± 130 MPa |
| Bending Strength | 72 ± 5 MPa |
| Impact Strength | 14.0 ± 2.2 kJ/m² |

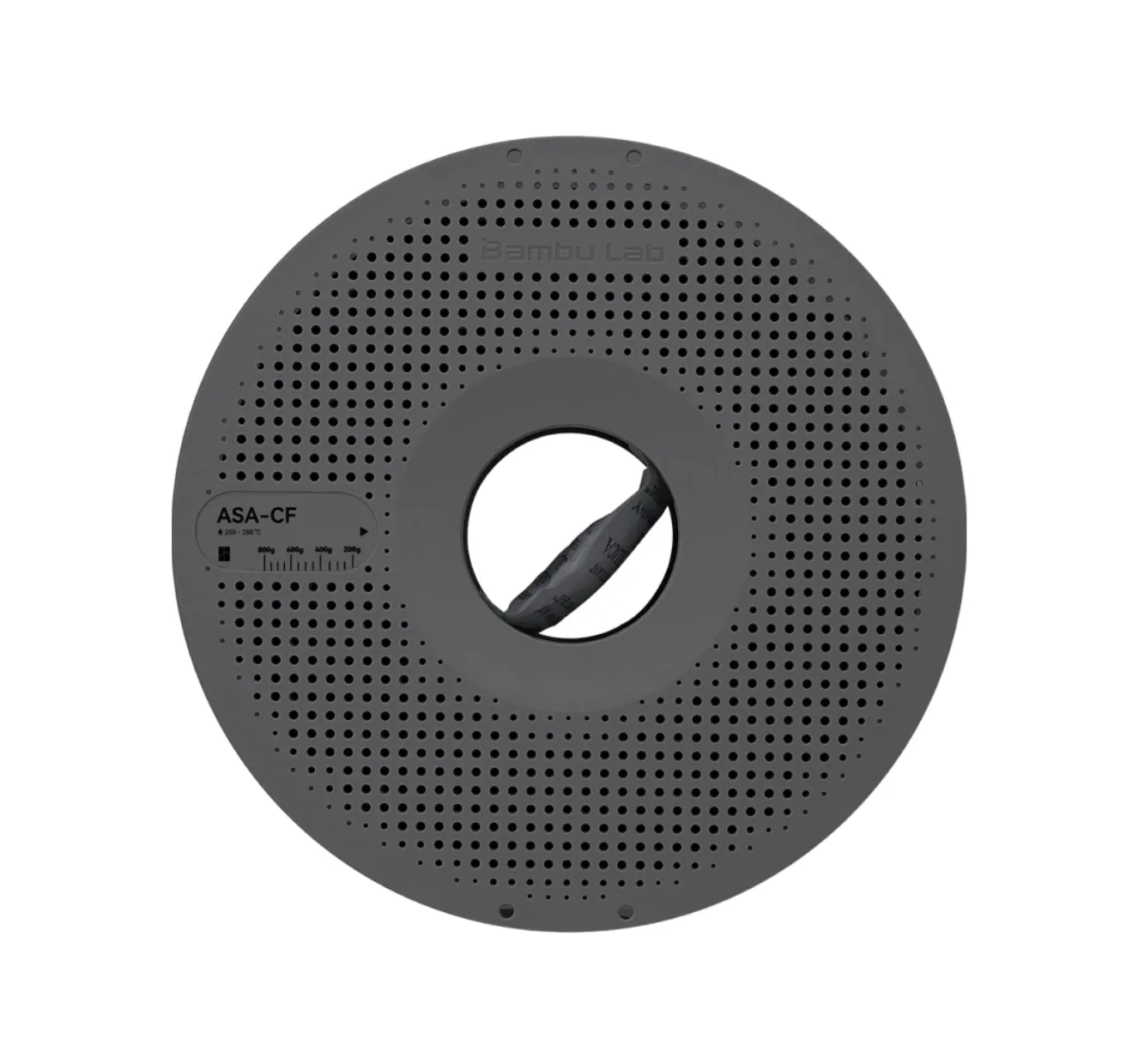

Bambu Lab ASA-CF Black Filament 1.75mm 1kg with Spool
