Bambu Engineering 3D Printer Build Plate For H2S/H2D

Name: Bambu Engineering Build Plate
Brand: Bambu Lab
SKU: FAP038

Rated 0 out of 5

0 customer reviews

buy now

Optimized for high-temperature filaments.
Compatible with all filament types.
Built tough for long-lasting performance.
Size:350*320mm

Looking for other products of Bambu Lab?

Frequently bought together with Bambu Build Plate

Creality Hyper Series PLA White 1.75mm 1kg 3D printer filament on a recycled cardboard spool with a white 3D printed deer model.

Bambu Combo

Key Printing Performance

MATERIAL Polyester Powder + Manganese Steel	SURFACE TEMPERATURE RESISTANCE Up to 120℃	THICKNESS 0.5mm
USABLE PRINT SIZE P2S: 256 × 256 mm H2S: 350 × 320 mm H2D: 350 × 320 mm	PACKAGING SIZE P2S: 295 × 315 × 13 mm H2S: 393 × 380 × 15 mm H2D: 393 × 380 × 15 mm	PACKAGING WEIGHT P2S: 0.50 kg H2S: 0.78 kg H2D: 0.78 kg

Recommended Settings

MATERIALS	HEATBED TEMPERATURE	GLUE REQUIRED
PLA / PLA-CF / PLA-GF	45–60℃	Glue Stick / Liquid Glue
PETG / PETG-CF	60–80℃	Glue Stick / Liquid Glue
ABS (not for A1 mini)	90–100℃	Glue Stick / Liquid Glue
ASA (not for A1 mini)	90–100℃	Glue Stick / Liquid Glue
TPU	35–45℃	Glue Stick / Liquid Glue
PVA	45–60℃	Glue Stick / Liquid Glue
PC / PC-CF (not for A1 mini)	90–110℃	Glue Stick / Liquid Glue
PA / PA-CF / PAHT-CF (not for A1 mini)	90–110℃	Glue Stick / Liquid Glue
PET-CF (not for A1 mini)	80–100℃	Glue Stick / Liquid Glue

Description

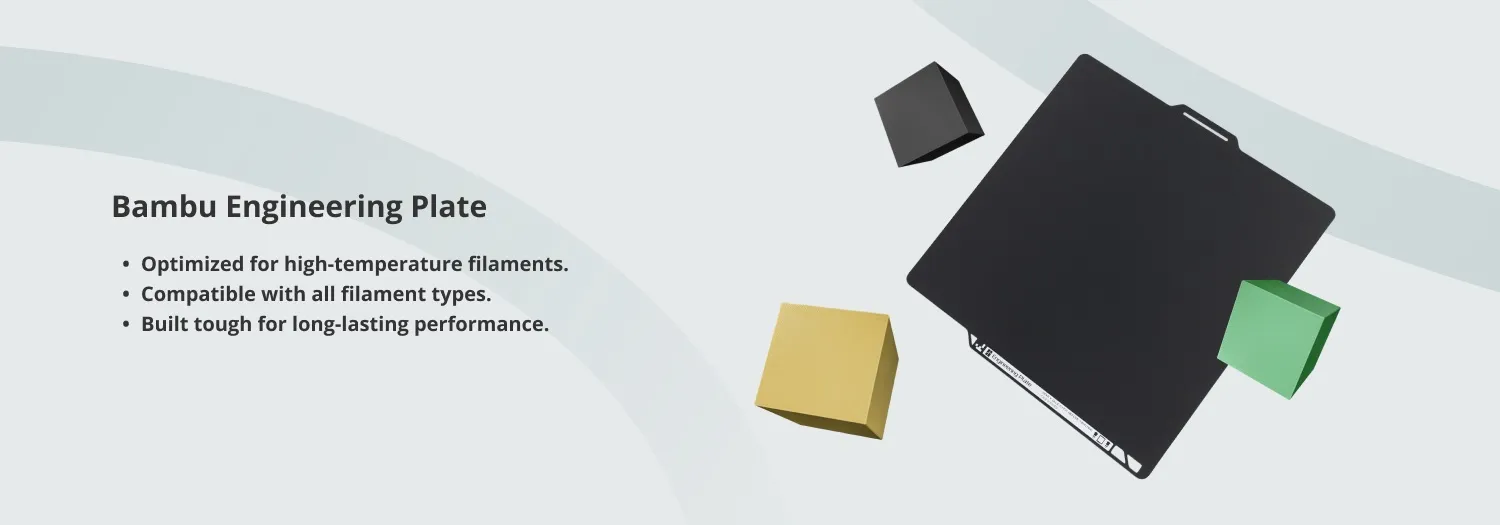

Bambu Engineering build plate designed for high-temperature filaments and long-lasting performance — Engineering build plate optimized for high-temperature filaments

One Build Plate for All Filaments

With a simple layer of glue, the Engineering Plate is compatible with the full range of filaments, making it a reliable all-purpose choice when you’re unsure which build plate to use.

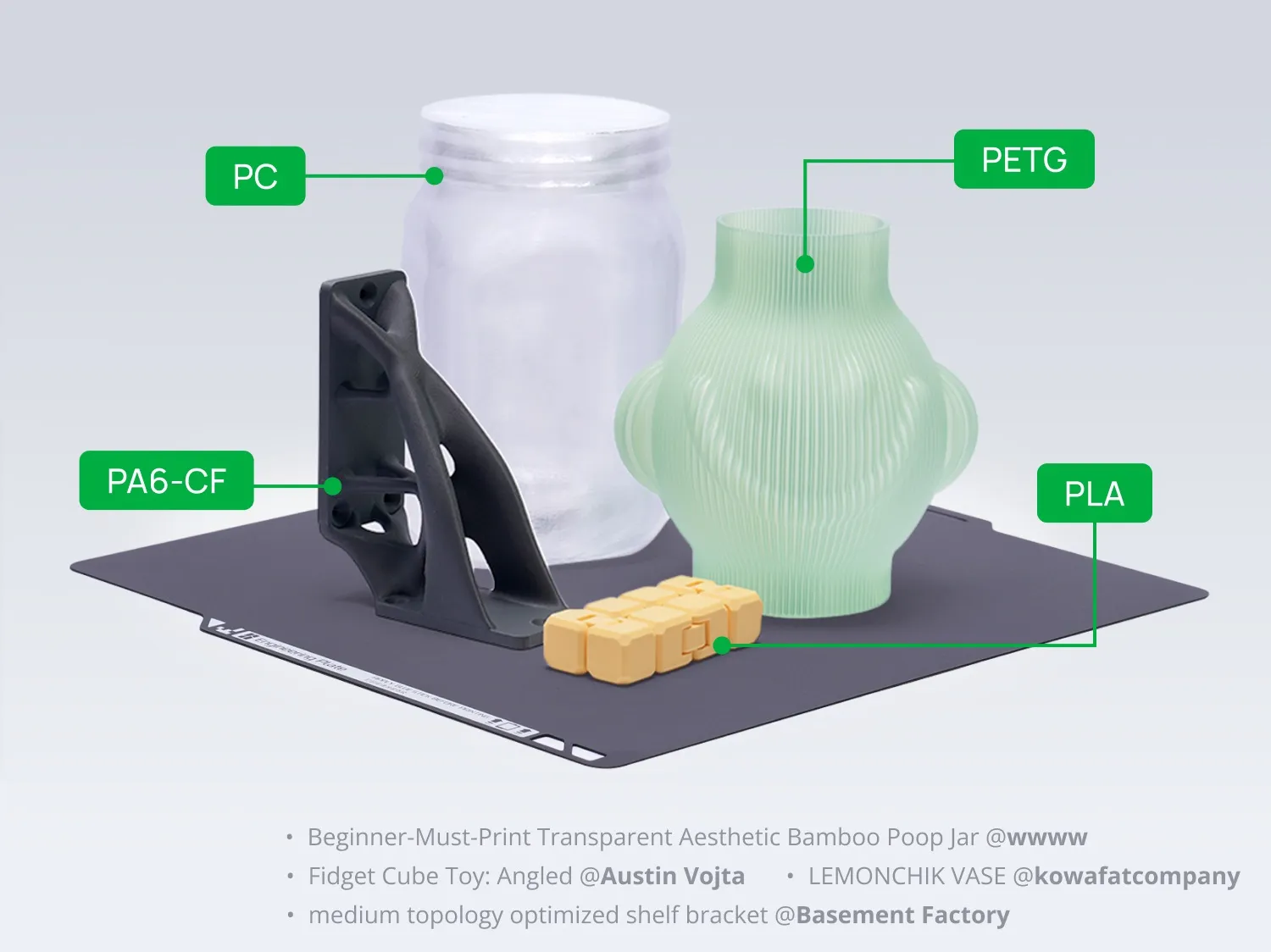

Bambu Engineering build plate showing compatibility with PC, PETG, PA6-CF, and PLA filaments on a single print surface — Engineering build plate compatible with PC, PETG, PA6-CF, and PLA filaments

Durable Smooth Surface Coating

The refreshed surface coating enhances resistance to heat, scratches, and corrosion, designed to endure long high-temperature print sessions and hundreds of print-and-release cycles while maintaining consistent adhesion.

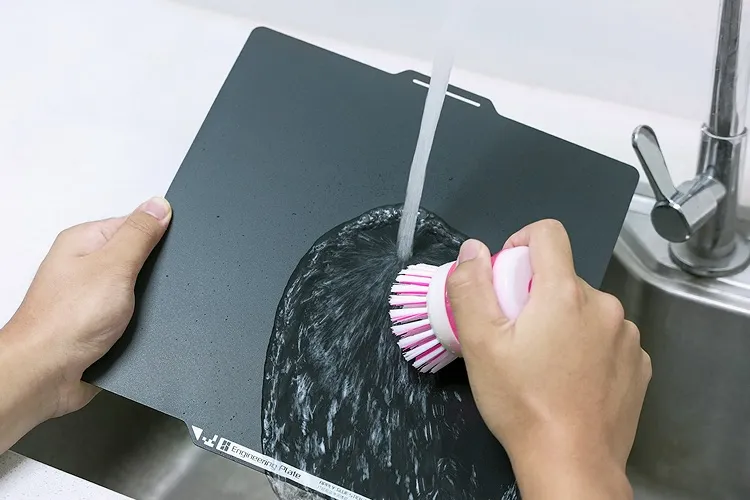

Cleaning the Bambu Engineering build plate under running water using a soft brush — Easy cleaning of the engineering build plate with water

Optimized for High-Temperature Filaments

Engineered for demanding materials, this build plate delivers stable performance with high-temperature filaments while remaining fully compatible with standard printing materials.

Built for Long-Lasting Performance

Constructed for durability, the Engineering Plate withstands repeated heating, washing, and flexing, ensuring reliable performance and extended service life.

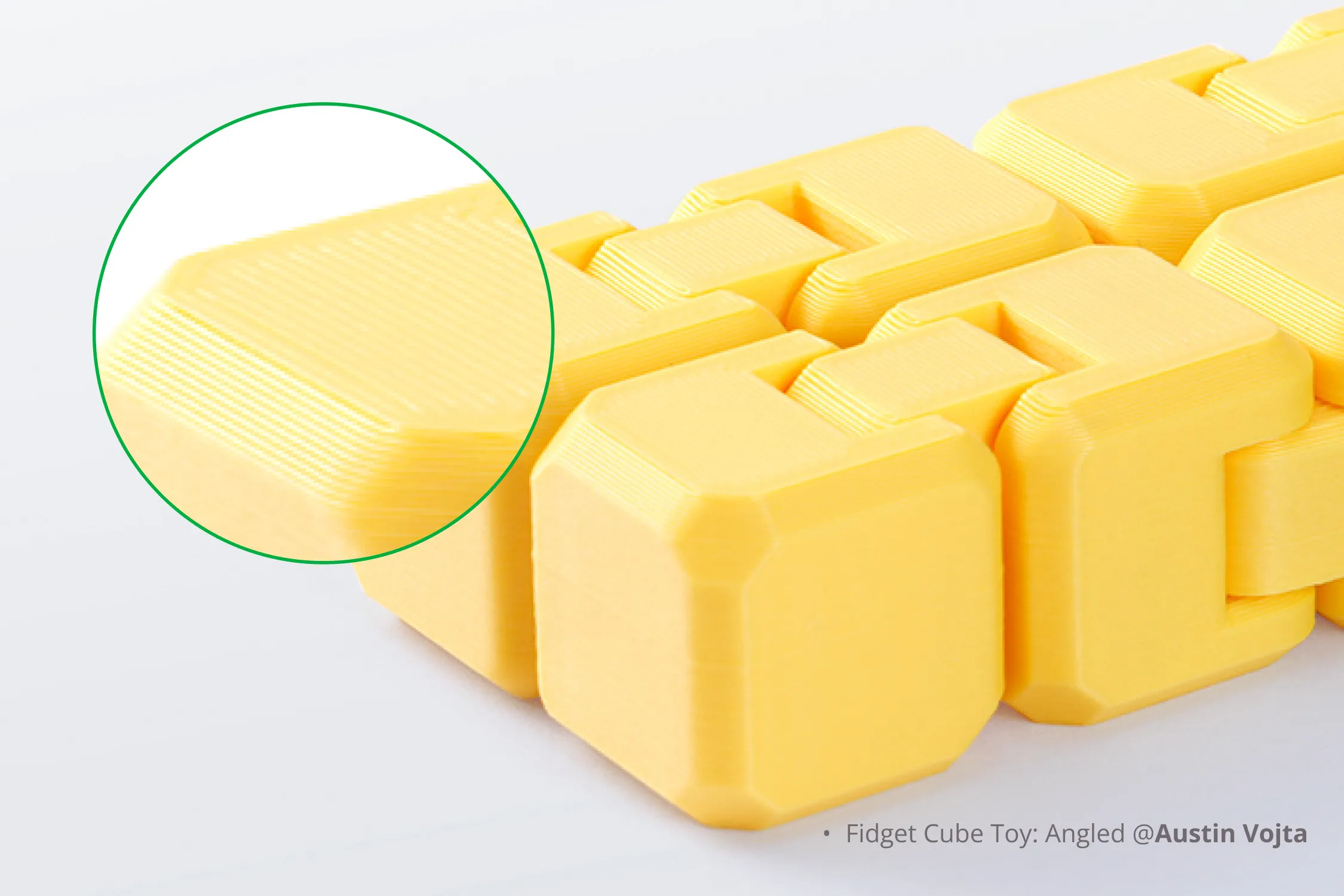

Close-up of a printed part bottom surface showing fine texture transferred from the Bambu Engineering build plate — Bottom surface texture transferred from the engineering build plate

Perfect Fit for Bambu Lab H2D/H2S

Engineered specifically for Bambu Lab H2D/H2S, ensuring stable magnetic attachment and full-bed printing capability.

Individually packaged 3D printer hotend components arranged on a worktable, with labeled boxes facing upward — Individually packaged hotend components, neatly organized and labeled for identification

Wholesale & Private Label Services

We offer wholesale and private label (OEM) services for a wide range of 3D printing accessories, including build plates, hotends, and related components.

Composite image divided into four sections showing 3D printer build plates in the upper right area and hotend components in the lower sections — Build plates and hotend components shown in a structured layout for visual reference

Palletized rectangular cartons stacked at a 45-degree angle, each box clearly labeled for identification — Palletized cartons with clear labeling prepared for factory shipment

Rows of multi-color 3D printing filament spools organized on storage racks, showing a wide selection of PLA and specialty filaments — A wide range of 3D printing filament spools in different colors and material types, stored for organized inventory and distribution.

Stacks of multi-color 3D printer filament spools arranged in bulk storage, showing large inventory for distribution and supply — Bulk stacks of 3D printing filament spools in various colors, prepared for organized storage and distribution.

More Options

Cautions

Before printing with any filament, it is recommended to apply glue on the Engineering Plate. Applying solid glue can make part removal easier, but since solid glue has a certain thickness and is difficult to apply evenly, the printing stability and first-layer quality are usually not as good as when using liquid glue. On the other hand, liquid glue may make part removal more difficult. You should choose the appropriate glue type based on the filament, printing environment, and other practical conditions. For more details, please refer to the official wiki: Bambu Lab Wiki.
When using a scraper to remove prints, make sure to use the correct technique. If the model adheres too tightly to the build plate, apply alcohol to the interface between the model and the plate to reduce adhesion and make removal easier. This helps prevent damage to the model, the build plate, or potential injury to the user caused by excessive force.
Increasing the heatbed temperature enhances adhesion. Users need to adjust the temperature of the heatbed based on their specific requirements in order to achieve the most suitable level of adhesion.
For X1 series, P1 series, and A1 printers, before auto-leveling, it is necessary to repeatedly rub the nozzle in the wiping area of the build plate to thoroughly remove any residual material at the tip of the nozzle. The coating in the wiping area will gradually wear over time, which is normal and does not affect print quality or nozzle lifespan, so there is no need to worry about quality issues.
Dust and grease deposits on the build plate can reduce adhesion. It is recommended to regularly clean the build plate with warm water and dish soap to maintain optimal adhesion. Do not use other unapproved cleaning agents.
Bambu Lab recommends only using Bambu Lab official glue on the Bambu Lab build plates, and can not be held responsible for any damage caused to plates as a result of using third-party glue on build plates. Do not clean the Engineering Plate with Acetone, as it will damage the Engineering Plate surface.
Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.
The latest firmware brings significant improvements to the Bambu Engineering Plate calibration using the Micro Lidar, and it is now fully compatible with the automatic calibration process.
The Engineering Plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
